Intermec EasyCoder PD4—Service Manual 87
Chapter 13—Interfaces
13.2 USB Serial Interface
Description
The EasyCoder PD4 printer supports USB v1.1 (also called USB 2.0 full
speed). To use the USB interface for printing from a PC, you need a special
Intermec USB printer driver installed in your PC.
The printer is a so called “self-powered device.” You can connect the
printer to a USB port on the host, either directly or via a hub. Keyboards,
mouses, or more printers can also be connected to the same hub.
Using a USB Class A/B cable, connect the Class A plug to your PC or hub
and the Class B plug to your printer.
There is no communication setup for the USB port.

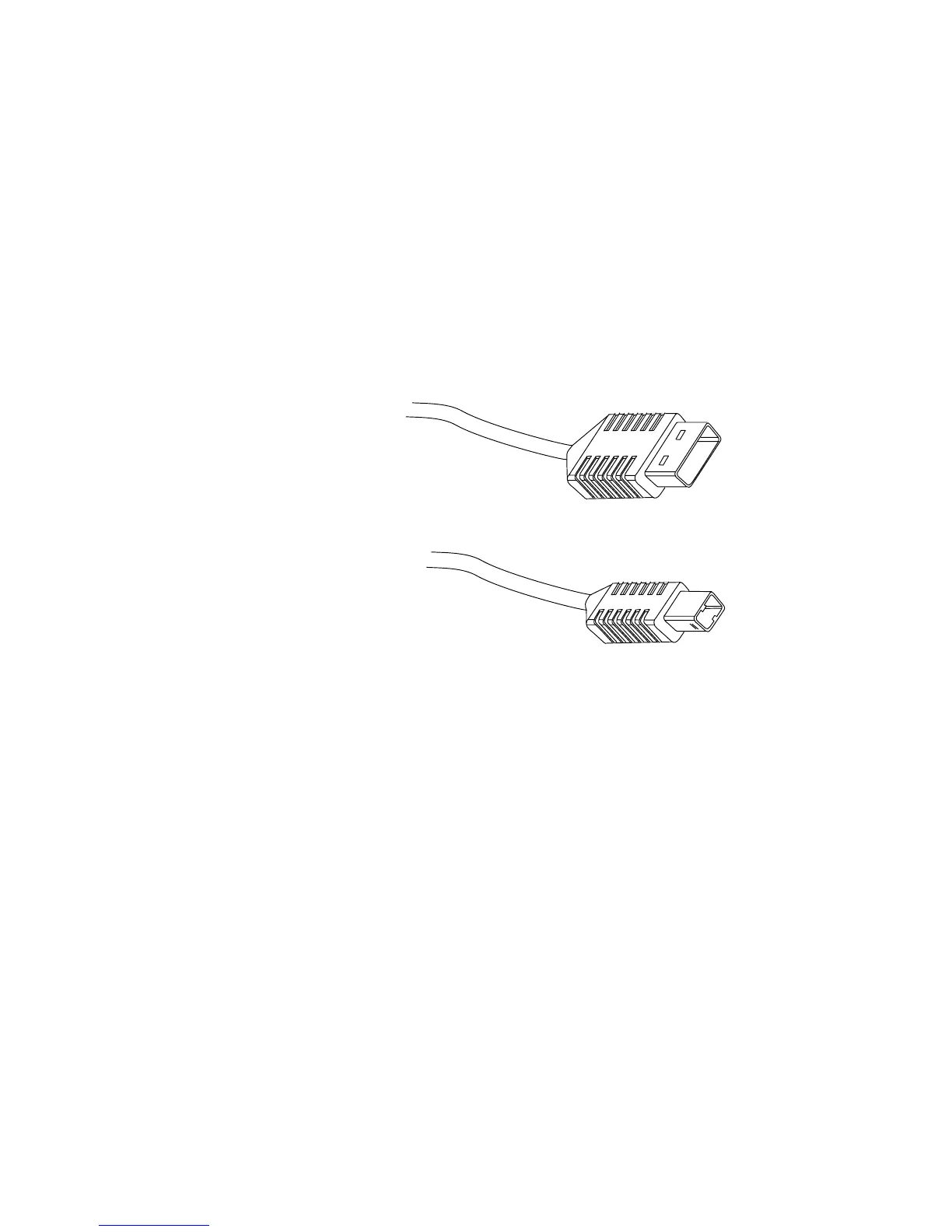

USB Class A connector.
Connect to PC or hub.
USB Class B connector.
Connect to USB receptacle on the printer’s rear plate.
