Intermec EasyCoder PD4 - Rear Plate

Intermec EasyCoder PD4—Service Manual 21
Chapter 4—Chassis
4.2 Rear Plate
Description
The rear plate contains the On/Off switch and AC power cord socket
assembly, and the serial port connector. It also has slots for the parallel
interface connector and the USB connector, which are fi tted on the main
board.

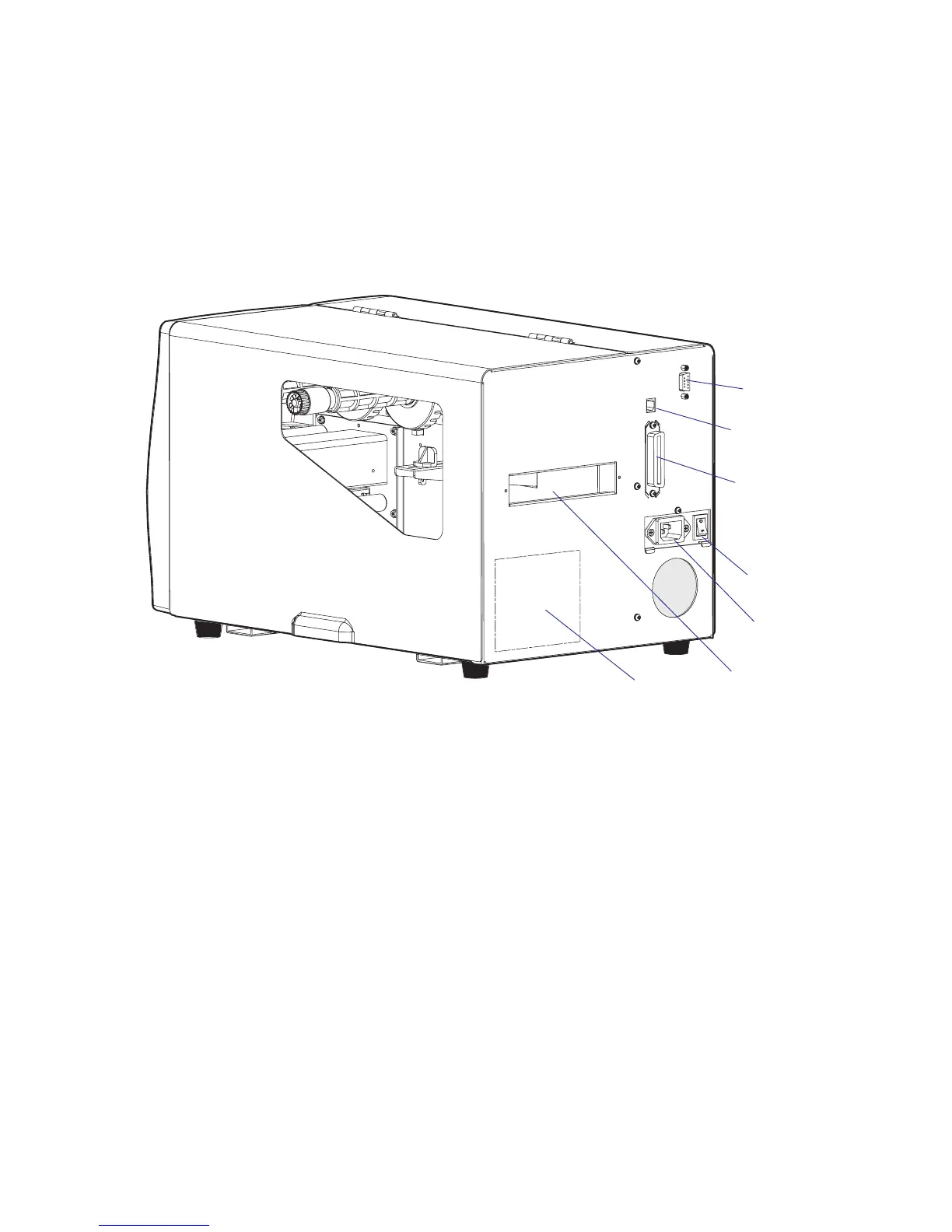

Serial port
Parallel port
USB port
AC power
cord socket
On/Off
switch
Slot for external
media supply
Label
