Chapter 7—Print Mechanism
7.4 Media Guides
Description
The media guides are made of green plastic and are designed to guide the
media in a straight line through the print mechanism. The inner guide
should always be fi tted fl ush to the inner gable of the print module whereas
the outer one should be adjusted to fi t the width of the media without
compressing it. It can be folded upward to facilitate media load.
Replacement
The media guides are pressed onto their respective shafts and can easily
be removed and installed by hand. Take care to fi t the guides as illustrated
below, that is, the fl at side should face the media.

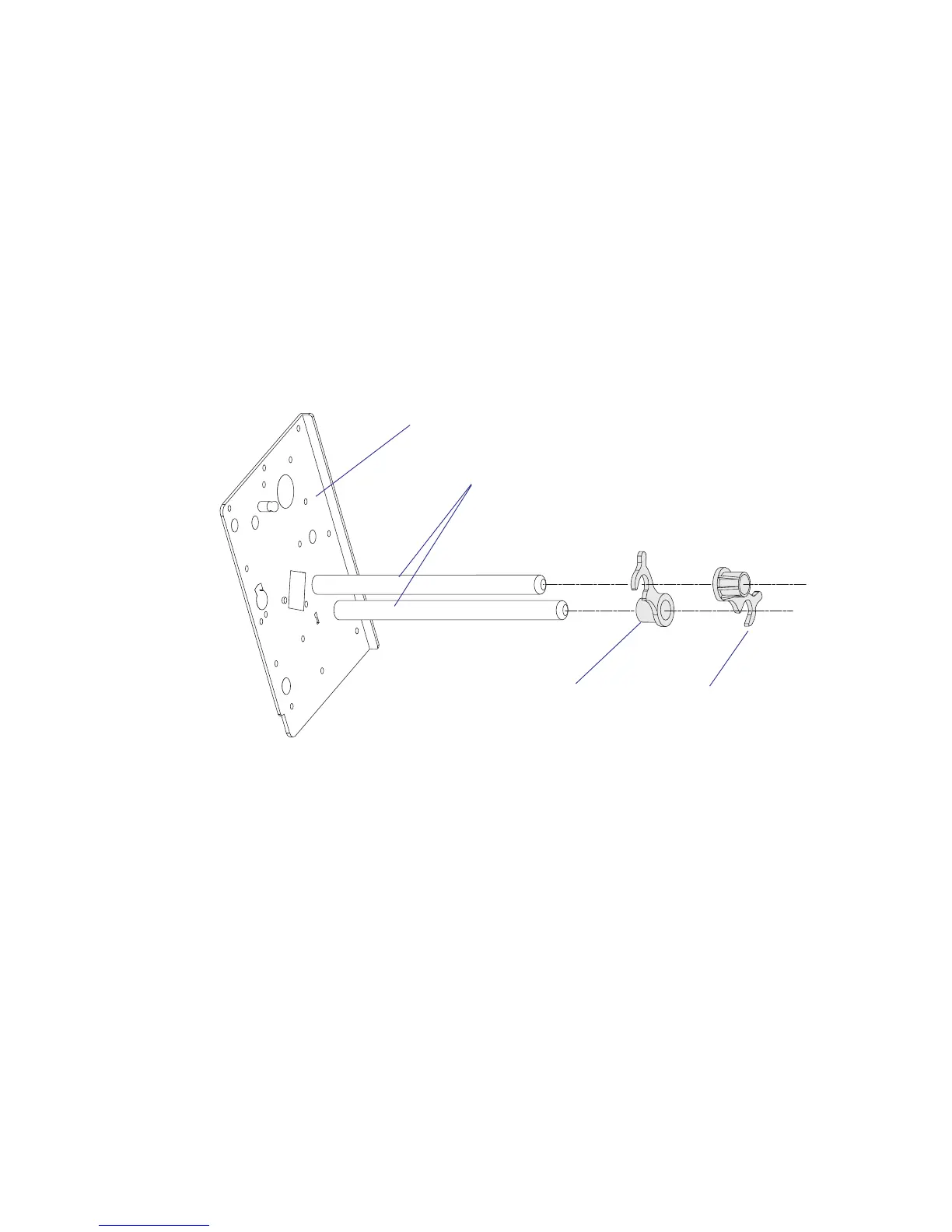

Inner gable
