Intermec EasyCoder PD4 Service Manual

Intermec EasyCoder PD4—Service Manual 25
Chapter 5—Media Supply

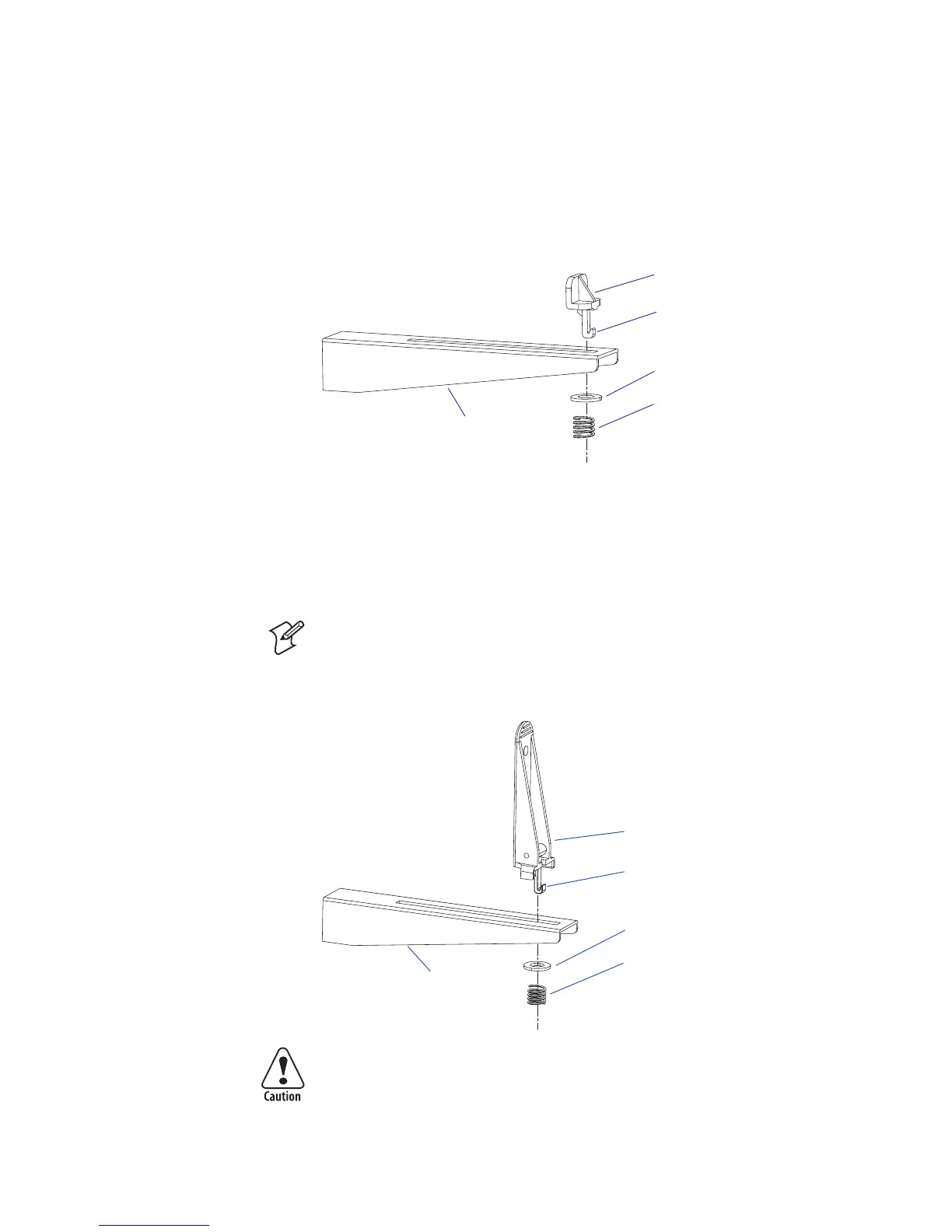

Switching or Replacing the Edge Guide
To remove the edge guide, follow these steps:
1 Unhook the coil spring from the hook at the bottom of the plastic edge
guide underneath the post.
2 Remove the coil spring and the washer, then pull up the edge guide and
save it away for possible later use.
To install the edge guide, follow these steps:
1 Insert the edge guide into the slot in the post.
2 First fi t the washer and then the coil spring from underneath the post to
the protruding part of the edge guide and engage the coil spring to the
hook.
Note: The high edge guide is hinged to allow media load. Before remov-
ing an empty core or loading a roll of media, the guide must be fl ipped
down to a horizontal attitude. Likewise, after loading the media it must
be fl ipped back so it points straight up. Like the low edge guide, it can be
adjusted along the post to fi t different media widths.
Be careful to fl ip the high edge guide straight up before closing the side
door, or the guide could be damaged.
Edge guide
Coil spring
Washer
Hook
Post
Edge guide
Coil spring
Washer
Hook
Post
