Chapter 7—Print Mechanism
EasyCoder PF2i
The 8 dots/mm (203.2 dpi) printhead contains 448 dots, which give a
maximum print width of 56 mm (2.2 inches). The same unit of measure
(dots) can be used both across and along the feed direction.
Specifications
Density 8 dots/mm (203.2 dots per inch)
Print width 56 mm (2.2 inches)
Number of dots 448
Dot size 0.125 mm (4.92 mils)
FEED
DIRECTION

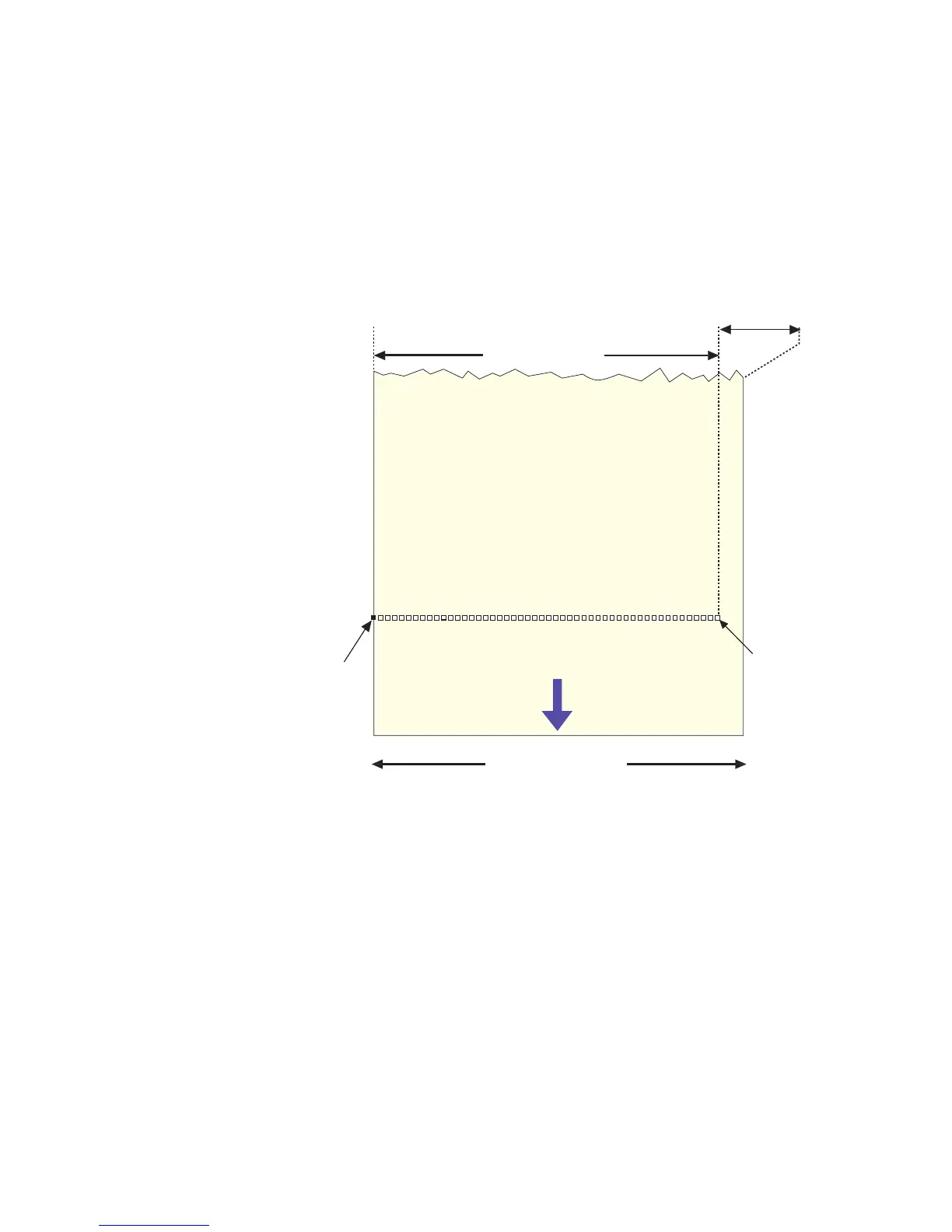

Dot #0
Dot-line
on printhead
Dot #447
4 mm (0.16 in.)
Print Width
max. 56 mm (2.2 in.)
Media Width
25-60 mm (1-2.36 in.)
EasyCoder PF4i and PF4i Compact Industrial
These two printer have as standard an 8 dots/mm (203.2 dpi) printhead
or as an option an 11.81 dots/mm (300 dpi) printhead (Fingerprint only).
In addition to the normal printheads, which are designed for a media
thickness up to 175 µm (7 mils), there are also 8 dots/mm and 11.81
dots/mm printheads for media thicknesses from 170 to 220 µm (6.6 to 8.7
mils).
Specifications
Density 8 dots/mm (203.2 dots per inch)
Print width 104 mm (4.095 inches)
Number of dots 832
Dot size 0.125 mm (4.92 mils)
Density 11.81 dots/mm (300 dots per inch)
Print width 105.7 mm (4.161 inches)
Number of dots 1248
Dot size 0.085 mm (3.33 mils)
