Chapter 6—Transfer Ribbon Mechanism
6.5 Ribbon Motor
Description
The ribbon motor assy consists of a 24 VDC motor with a gearbox. The
gearbox engages the cogs along the rim of the ribbon rewind bobbin and
rotates it in either direction according to the polarity of the power.
The power comes to the ribbon motor via a cable connected to P6 on the
Power Supply Unit.
The ribbon motor assembly is a complete unit and should not be taken
apart. It is fi tted to the electronics compartment side of the center section
using three #T20 Torx screws.

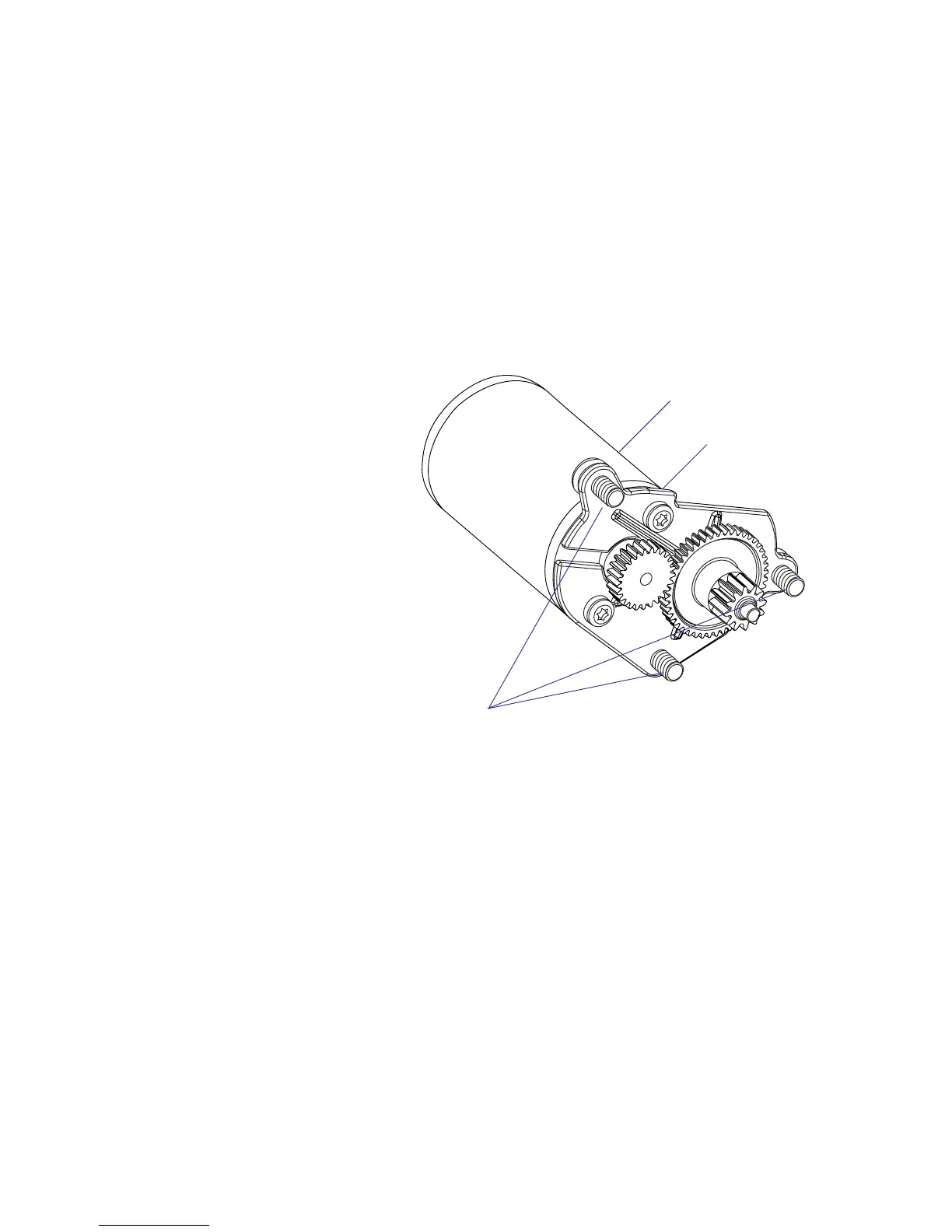

DC motor
Gearbox
#T20 Torx screws (×3)
