Chapter 4—Chassis
EasyCoder PF4i and
PF4i Compact Industrial
EasyCoder PF2i
4.1 Description
The printer’s chassis consists of two main parts:
• The center section
• The bottom plate
The center section and the rubber feet are common for EasyCoder PF2i,
PF4i, and PF4i Compact Industrial. EasyCoder PF2i and PF4i have plastic
hinges whereas EasyCoder PF4i Compact Industrial has metal hinges, see
Chapter 4.4.

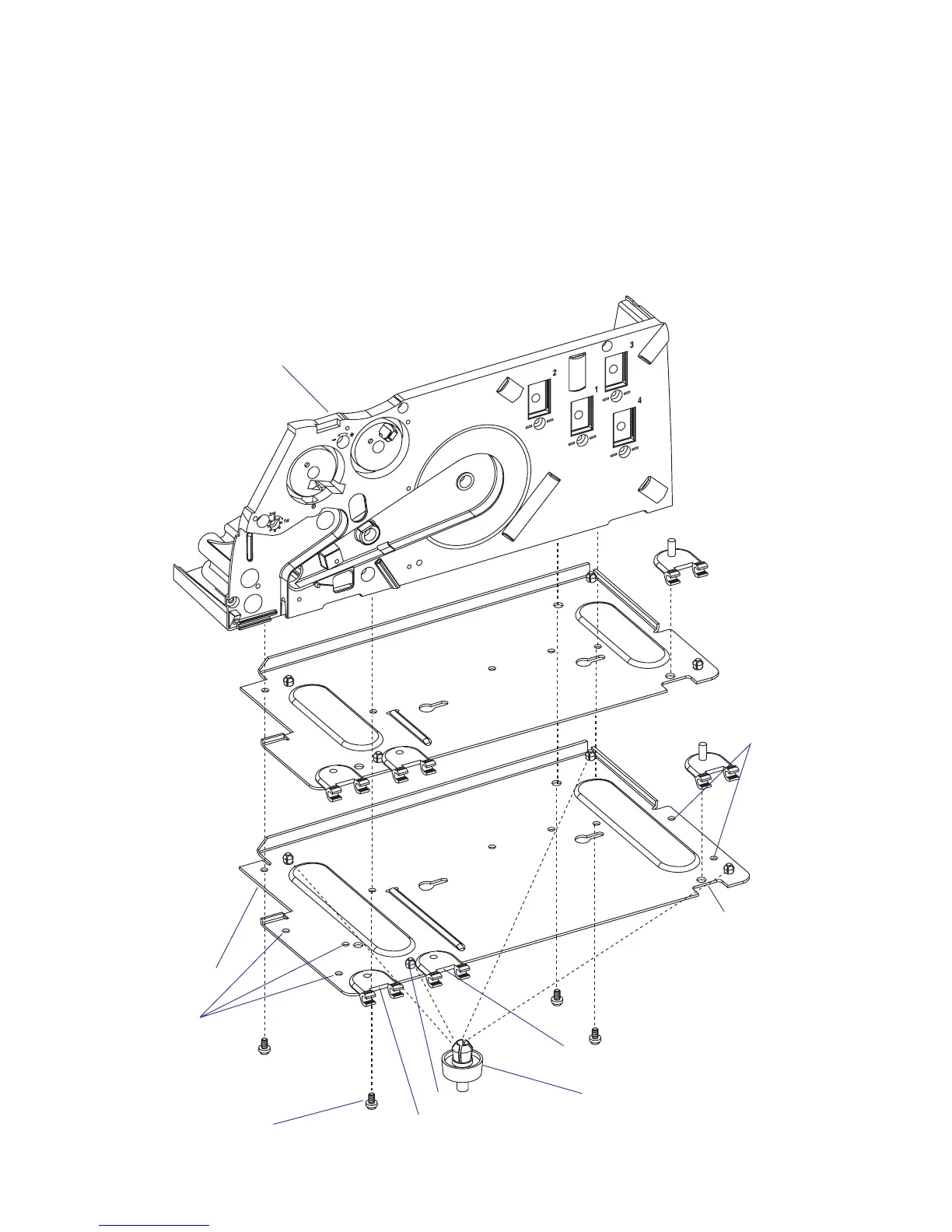

Bottom plate
Center section
Rubber foot (x4)
Rubber foot (enlarged)
#T20 Torx screws (x4)
Plastic hinge (always fi tted in PF2i and PF4i)
Provision for
rear hinge
in case of
long door
or Megatop
Plastic hinge (always fi tted in PF2i and
PF4i, but only used for short door)
Provision for
Megatop
canopy
hinges
Provision
for cutter or
front door
