Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual 143
Chapter 13—CPU Board
13.2 Circuits

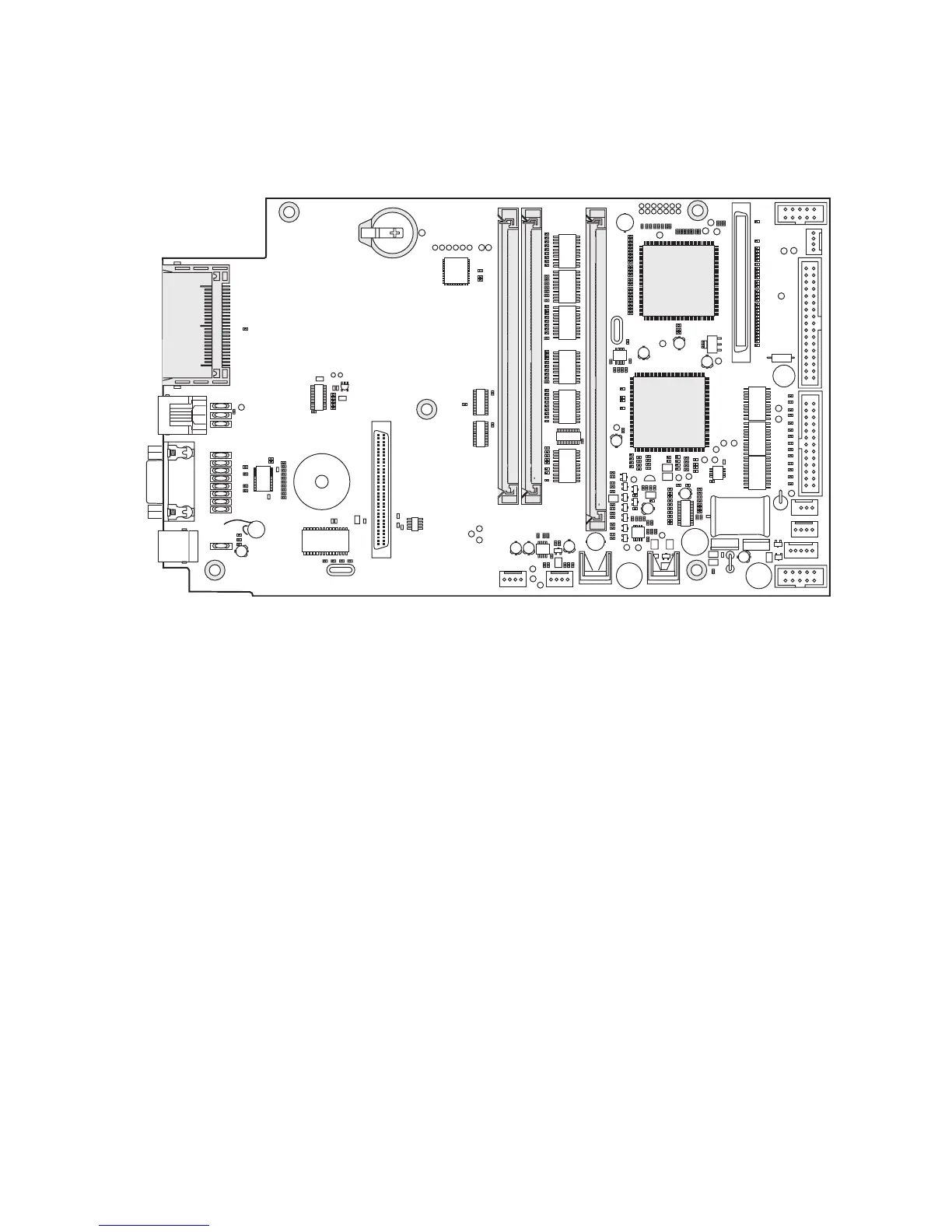

Components mentioned in this chapter are marked with gray in the draw-
ing below.
Processor (U13)
The processor is a 32-bit RISC offering about 125 MIPS at the internal
clock speed 96MHz. The internal bus speed is twice the external bus speed
at 48MHz. The processor has several features, such as integrated SDRAM
controller, PCI bridge, DMA, UART, timers, etc.
Support Chip (U30)
The PSA (Processor Support ASIC) is a programmable logic device, which
is programmed by the fi rmware at each startup. It contains most of the
printer-specifi c and other logic functions, such as
• Printhead data and strobe control
• Stepper and DC motor logic
• Sensor interface
• Timers and interrupt control
• Control logic for bar code wand and the electronic key/RTC
• I
2
C master
• Beeper signal generation
• Interface to A/D converter, console, fi nisher, etc.
P35
J30
RTC & PROGRAM KEY
BOOT-FLASH
COMPACT FLASH
J21
J20
J10
1-971630-00 PO2
U13
Processor
U30
Support
Chip
