Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual 129
Chapter 11—Electronics Compartment
CPU board
Connect console pcb here
Stepper motor Platen roller
belt and pulley
Liner drive roller
belt and pulley
Power supply
(behind CPU board)
Headlift
mechanism
11.3 Main Parts

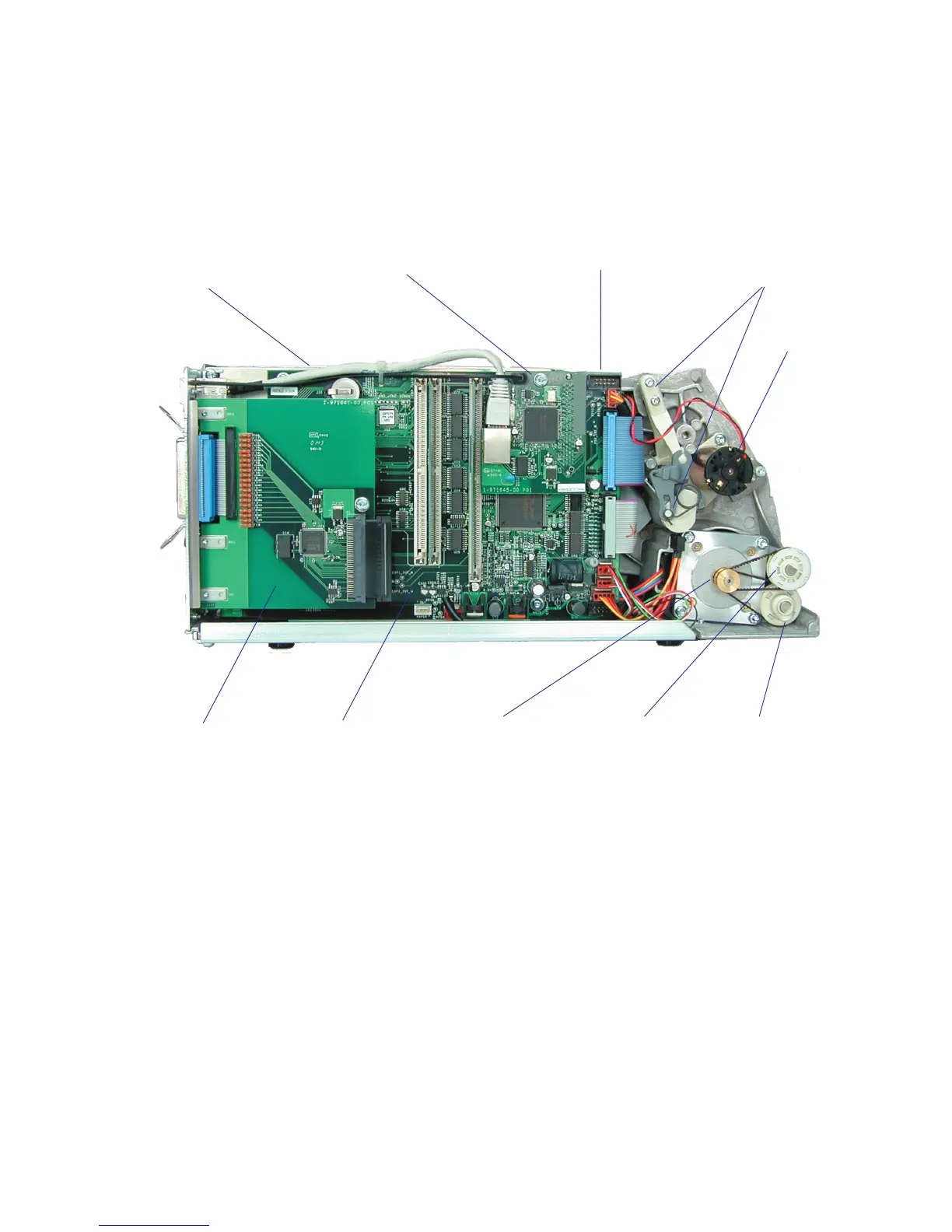

This is what you may see when you remove the front/left-hand cover from
an EasyCoder PF4i or PF4i Compact Industrial printer. The EasyCoder
PF2i looks the same with the exception that the transfer ribbon mecha-
nism is optional.
Ribbon
motor
Optional
interface board
Optional EasyLAN board
