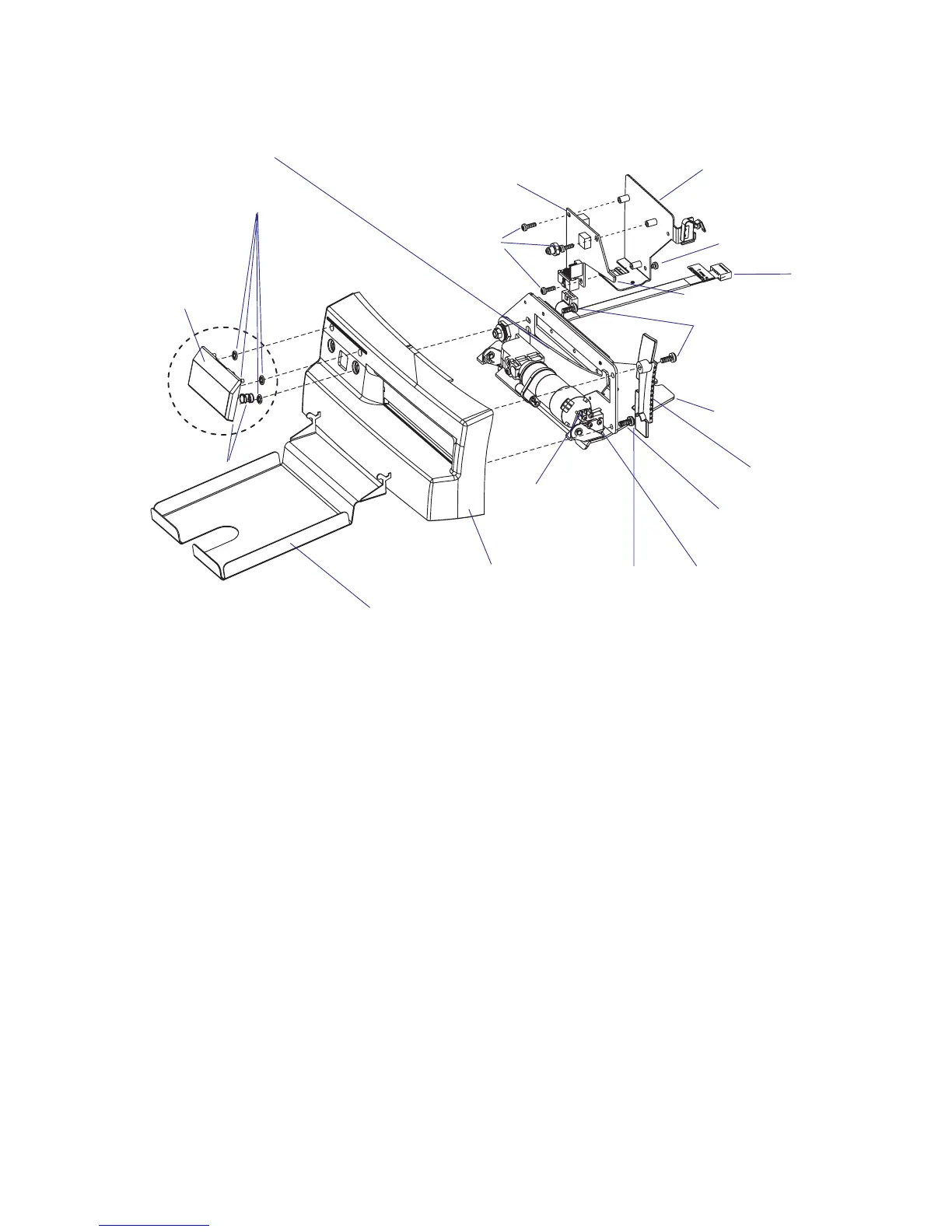

Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual 123
Chapter 10—Paper Cutter
Tray
Print button
Spring (×2)
Star washer (×4)
#T10 Torx
screw (×3)
#T20 Torx screw
#T20 Torx screw (x2)
Circuit board
Bracket
#T10 Torx screw
Bracket
Grip
Cover
Top position sensor
Cutter open/closed microswitch
Cable
Cutter bottom
(home) position
microswitch
Lubricated Parts
No isolpropyl alcohol here!
