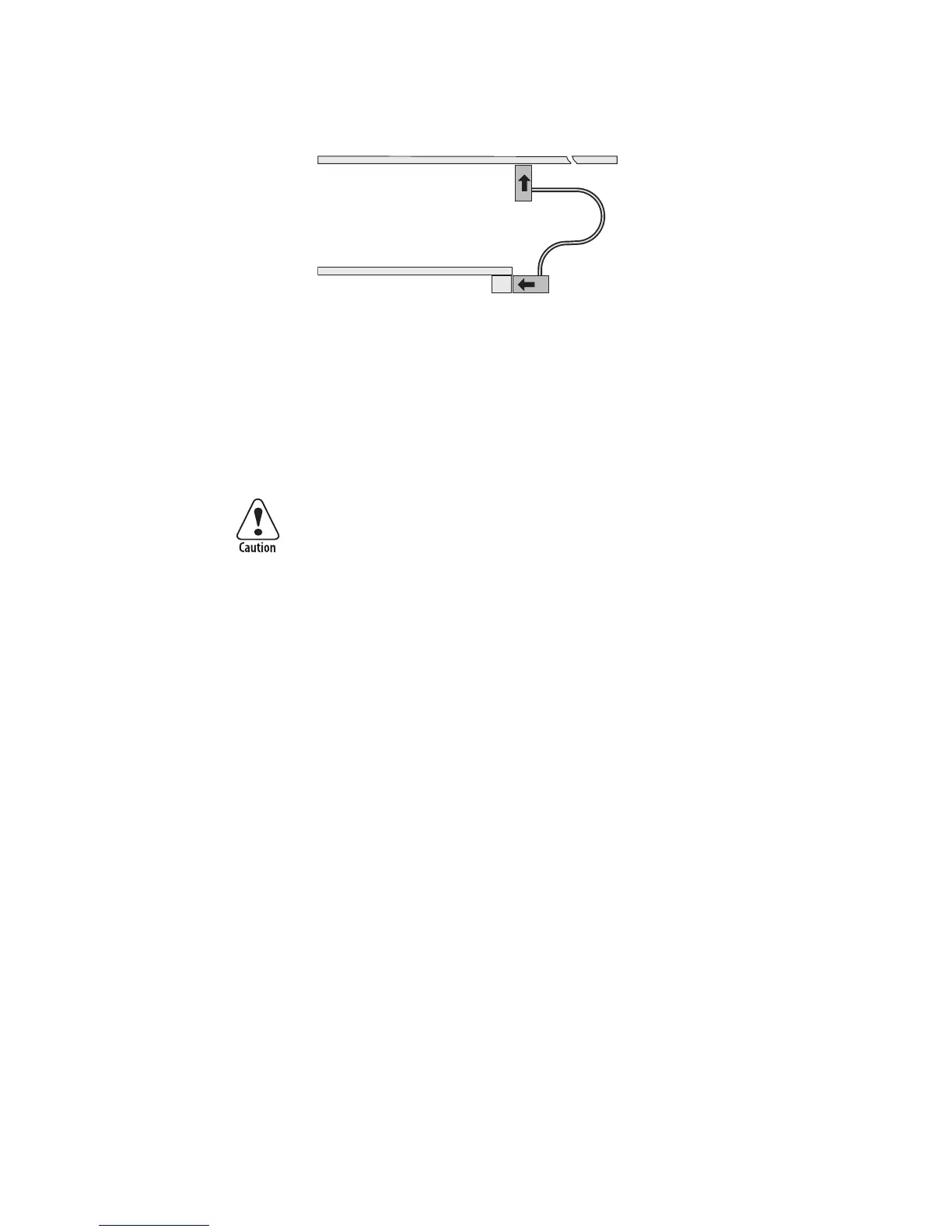

• The fl at cable should run as illustrated below.
• Put back the cover over the electronics compartment.
• Connect the communication cables to the connectors on the printer’s
rear plate.
• Connect the power cord and switch on the power.
• In case the interface board provides additional serial communication
ports, enter the Setup Mode to set the proper communication param-
eters for these ports.
When fi tting driver circuit and straps before installing the interface
board, make sure that the circuit is not fi tted upside down (see front
end markings in the illustrations). Also make sure that the “legs” of the
circuit fi t into the slots in the socket and are not bent. Take ample pre-
cautions to protect the board and circuits from electrostatic discharges.
CPU Board
Interface Board
Cable
