Intermec EasyCoder PF2i Service Manual

Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual 245
Appendix A—Program Overviews

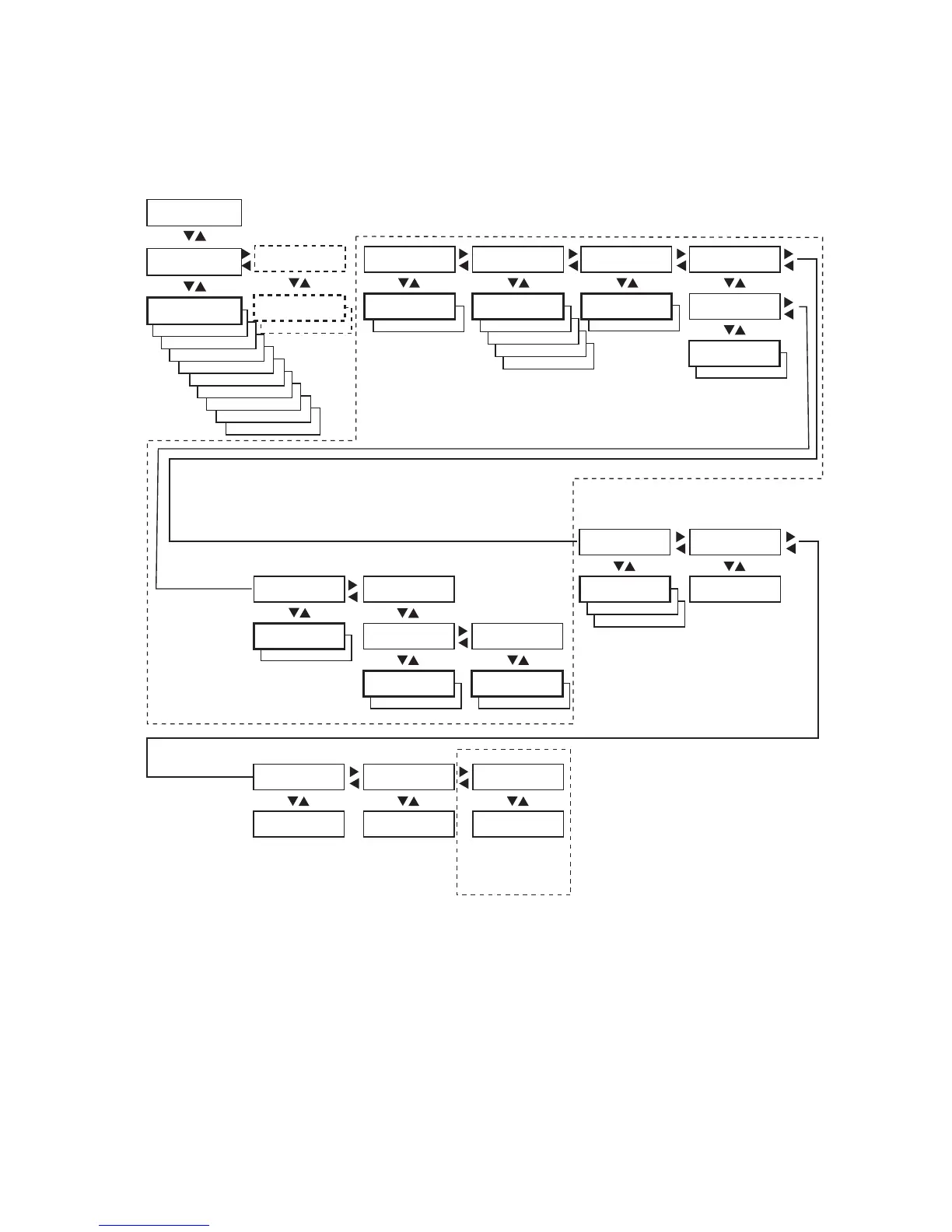

Setup Mode Overview (FP v8.10) Ser-Com, uart2
DATA TO HOST:
ENABLE
DATA FROM HOST:
ENABLE
BAUDRATE;
4800
BAUDRATE;
2400
BAUDRATE;
1200
BAUDRATE;
600
BAUDRATE;
300
BAUDRATE;
115200
BAUDRATE;
57500
BAUDRATE;
38400
BAUDRATE;
19200
PARITY:
SPACE
PARITY:
MARK
PARITY:
ODD
PARITY:
EVEN
CHAR LENGTH
7
STOP BITS:
2
ENQ/ACK:
ENABLE
SETUP:SETUP:
SER-COM, UART2
SER-COM, UART2:
PROT ADDR
SER-COM, UART2:
BAUDRATE
SER-COM, UART2:
CHAR LENGTH
SER-COM, UART2:
PARITY
SER-COM, UART2:
STOP BITS
SER-COM, UART2:
FLOWCONTROL
BAUDRATE;
9600
CHAR LENGTH
8
PARITY:
NONE
STOP BITS:
1
FLOW CONTROL:
RTS/CTS
FLOW CONTROL:
ENQ/ACK
ENQ-ACK:
DISABLE
ENQ/ACK:
ENABLE
RTS/CTS:
DISABLE
FLOW CONTROL:
XON/XOFF
SER-COM, UART2:
REC BUF
REC BUF:
[1024]:
XON/XOFF:
DATA TO HOST
XON/XOFF:
DATA FROM HOST
DATA TO HOST:
DISABLE
DATA TO HOST:
ENABLE
PROT ADDR:
DISABLE
DATA FROM HOST:
DISABLE
SER-COM, UART2:
TRANS BUF
TRANS BUF:
[1024]:
NEW LINE:
CR
NEW LINE:
LF
SER-COM, UART2:
NEW LINE
NEW LINE:
CR/LF
SER-COM, UART2:
CONNECTED HW
CONNECTED HW:
RS232
SER-COM, UART2:
PROTOCOL ADDR.
PROTOCOL ADDR.
[1]:
These menus will only be displayed when an optional Double Serial or Serial/Industrial interface board is installed.
In case of a Double Serial interface baord, also see the overview for Serial Communication, uart3.
Only displayed in case of
RS485 on "uart2:".
Enter printer’s protocol
address (0–31).
Only displayed in case
of RS485.
Read-only
Menus inside this dotted box are not displayed in case of RS485 on "uart2:".
