Intermec EasyCoder PF2i Service Manual

56 Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual
Chapter 5—Media Supply
Media Supply Positions
EasyCoder PF2i, PF4i, and PF4i Compact Industrial

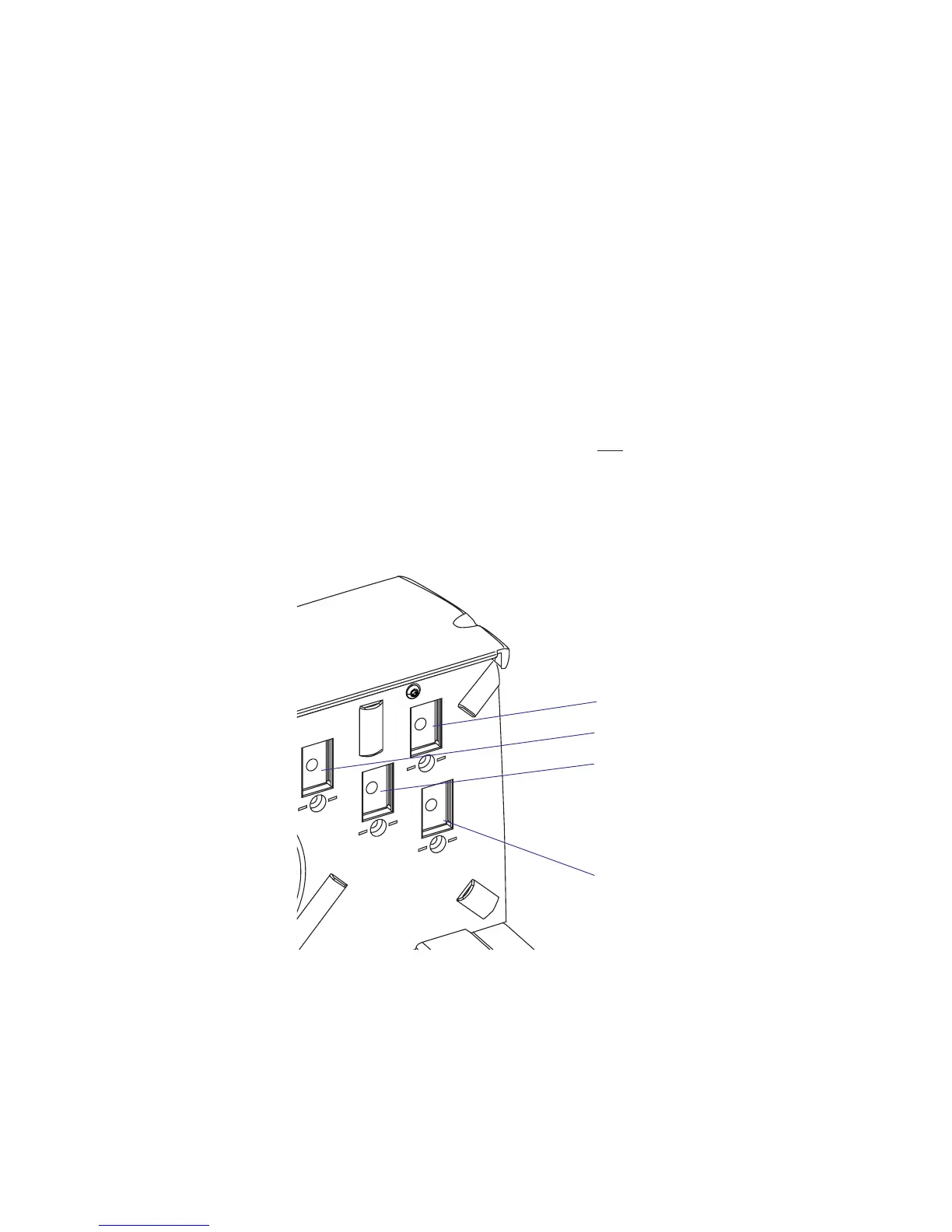

There are four sets of slots and threaded holes in the printer’s center sec-
tion for the media supply roll post or the optional rotating media supply
hub. These slots and holes allow the largest possible roll to fi t given the
limitations of the liner takeup unit and/or the full enclosure provided by
the long side door. The positions are indicated by numbers engraved in the
center section.
• Position #1 is used when the media compartment is fully enclosed by a
long side door, regardless of the existence of any liner takeup unit. Maxi-
mum roll size is 152 mm (6 inches).
• Position #2 is used when the printer has a short side door that only
encloses the print mechanism, but it excludes any liner takeup unit.
Maximum roll size is 203 mm (8.00 inches). This position is not used in
EasyCoder PF4i Compact Industrial, which do not use short side doors.
• Position #3 is used with a short side door and an optional liner takeup
unit. Position #3 is also used with the optional 8-inch Megatop (Easy-
Coder PF4i and PF4i Compact Industrial only.) Maximum roll size is
213 mm (8.38 inches).
• Position #4 is not used.
2
1
4
3
Pos. #1
Pos. #2
Pos. #3
(Pos. #4)
