Chapter 7—Print Mechanism
bw
fw
bw
fw

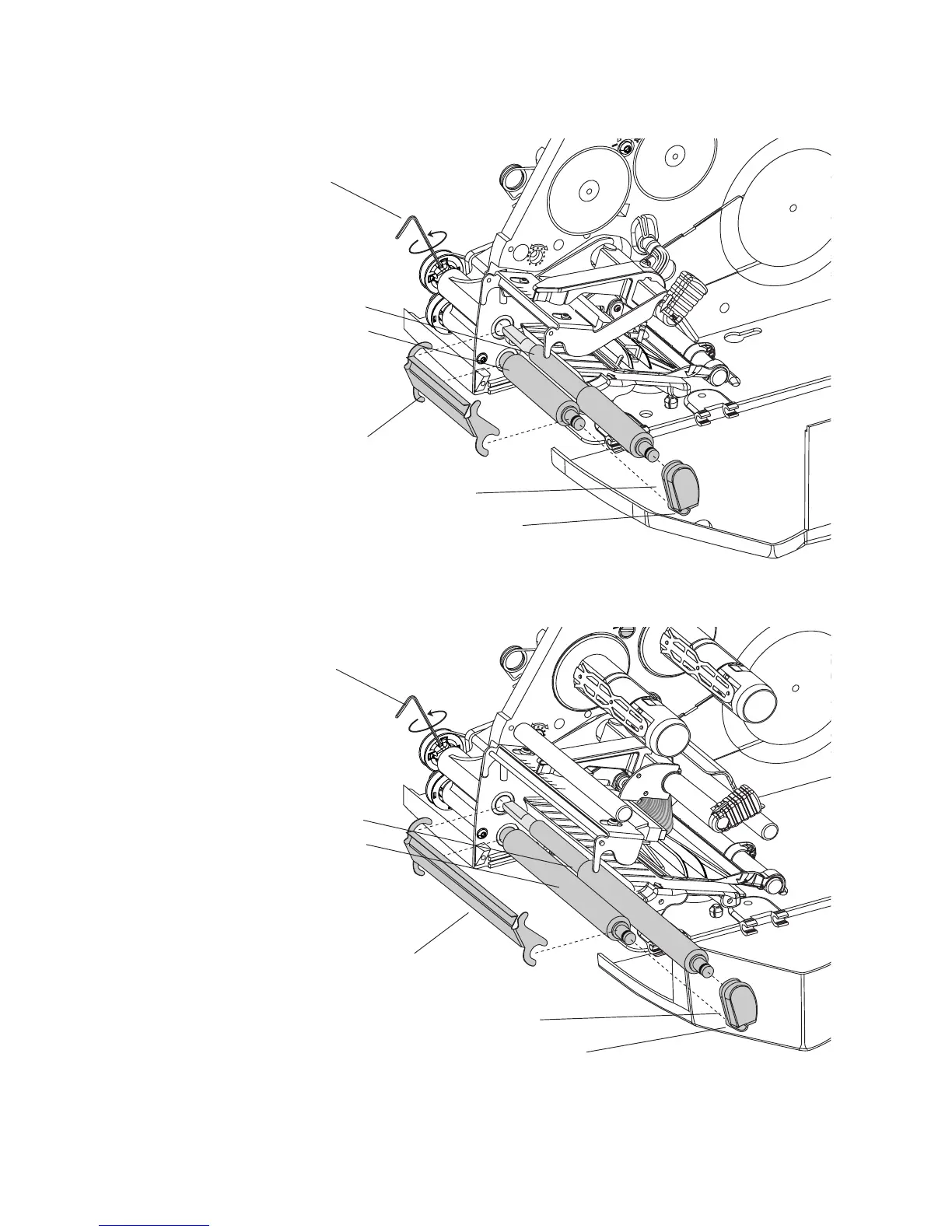

Tear bar
Platen roller
Liner drive roller
Guide link
Snap-lock
1.5 mm hexagon key
Tear bar
Platen roller
Liner drive roller
Guide link
Snap-lock
1.5 mm hexagon key
EasyCoder PF2i
EasyCoder PF4i and EasyCoder PF4i Compact Industrial
Illustration shows an EasyCoder PF4i
