Chapter 7—Print Mechanism
Cleaning the Media Guide
The upper part of the media guide assembly with the upper LSS can be
tilted upward or removed for occasional cleaning.
• Raise the printhead, disengage the semicircular snap-lock from the edge
guide shaft, and tilt up the upper part of the media guide assembly. In
most cases, this gives suffi cient access to the LSS “windows” for cleaning.
Use a cotton swab or similar moistened with isopropyl alcohol to wipe
away adhesive residue, dust, and other substances that may interfere
with the light between the two parts of the LSS.

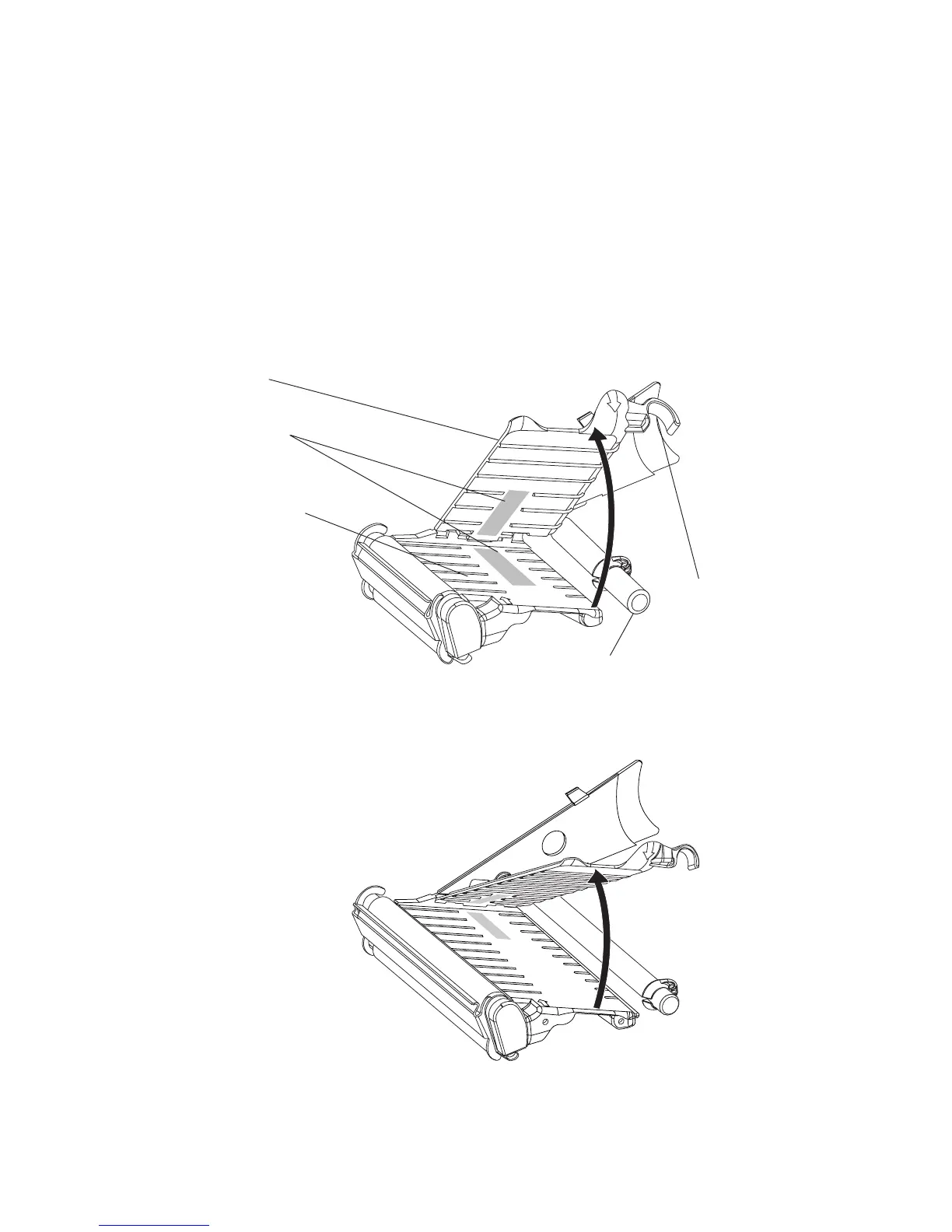

Media guide
(lower part)
Media guide
(upper part)
Snap-lock
Edge guide shaft
LSS “windows”
EasyCoder PF2i
EasyCoder PF4i and PF4i Compact Industrial
