Intermec EasyCoder PX6i User Manual

138 EasyCoder PX6i User’s Guide (Fingerprint version)
Appendix C — Interfaces
Bar code wand
interface ("wand:")
Bar Code Wand Interface

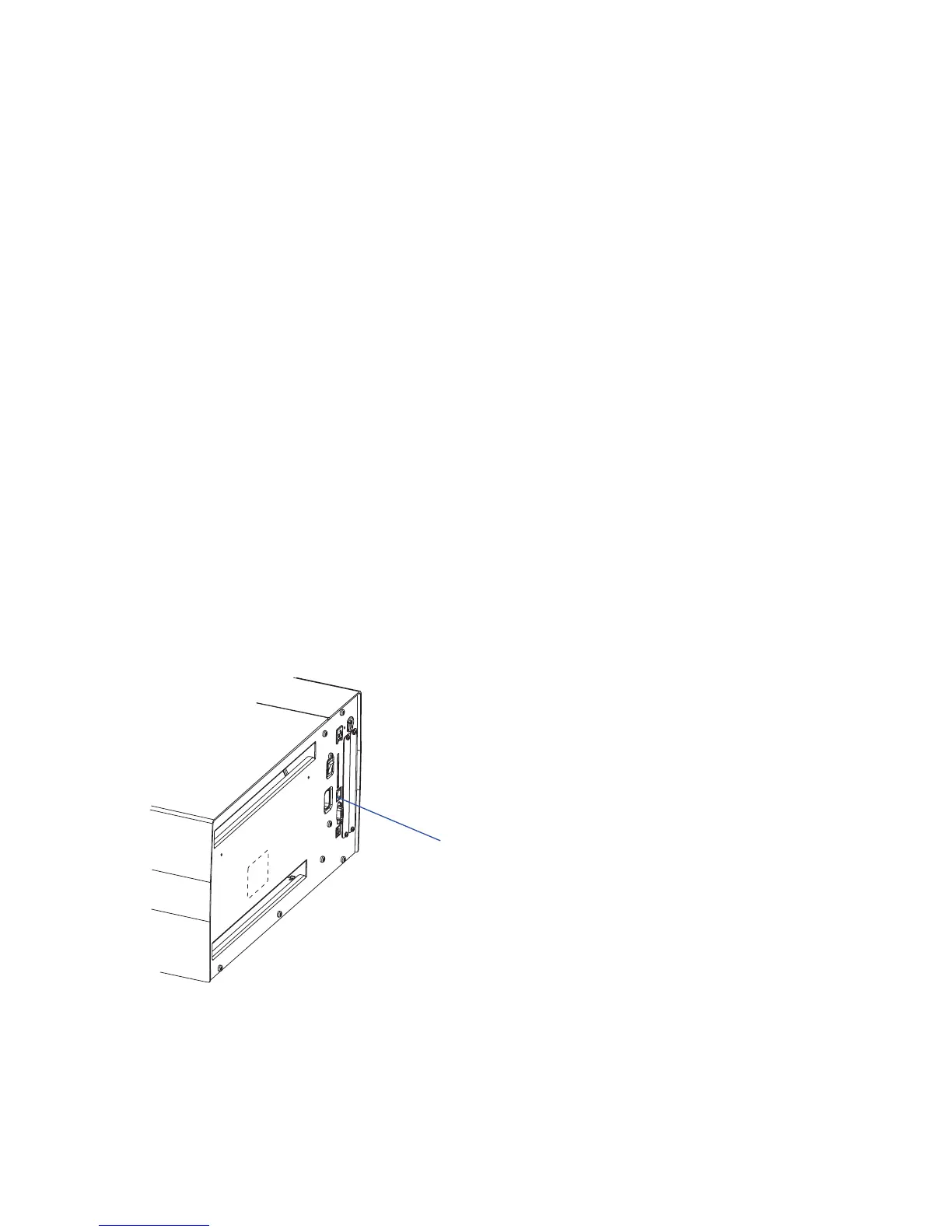

The printer has a socket on the CPU board for connecting a bar code
wand or scanner. The socket is accessible through a slot in the printer’s
rear plate.
If a Code 128 bar code that contains the character FNC3 is read via this
port, the data will be treated as a setup string and will change the print-
er’s setup accordingly. A setup bar code may contain a single parameter
or a combination of up to 3 or 4 setup parameters. Refer to the EasySet
Bar Code Wand Setup manual for more information on how to produce
setup bar codes.
The printer will acknowledge that a bar code has been successfully read
by emitting a short beep signal.
If no FNC3 character is found in the bar code, the data will be stored
in a buffer which could be read by specifying the "wand:" device. The
buffer is small, so it is recommended to use short bar code data (max. 16
characters) and read the buffer regularly to avoid overfl ow.
For more demanding applications or for reading bar codes other than
Code 128, choose a regular bar code scanner from Intermec’s wide prod-
uct range and connect it to a serial port.

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
