EasyCoder PX6i User’s Guide (Fingerprint version) 139
Appendix C — Interfaces
Optional Interfaces
The printer can optionally be fi tted with one or two of the following
interface boards at the right-hand side of the printer’s rear plate:
• Double Serial Interface Board
• Serial/Industrial Interface Board
• IEEE 1284 Parallel Interface Board (only one at a time)
Regardless of any of the interface boards mentioned above are installed,
the printer can also be fi tted with one of the following EasyLAN inter-
face boards for connection to a Local Area Network (LAN):
• EasyLAN Ethernet Interface
• EasyLAN Wireless Interface

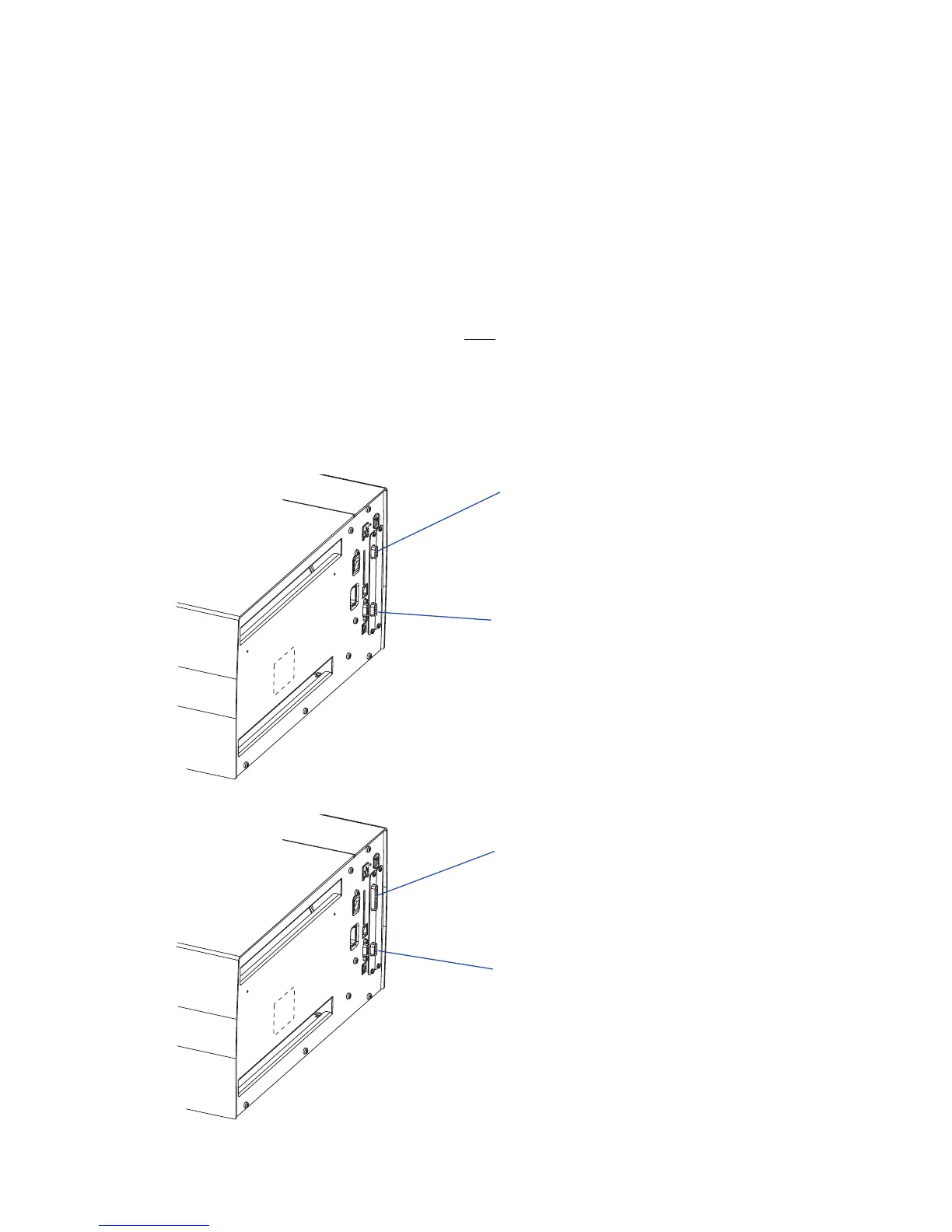

Double Serial Interface Board
Serial/Industrial Interface Board
"uart2:"
RS-232,
RS-422 non isolated,
RS-422 Isolated,
or RS-485
"uart3:"
RS-232,
RS-422 non isolated,
or 20 mA current loop
"uart2:"
RS-232,
RS-422 non isolated,
RS-422 Isolated,
or RS-485
Industrial interface
8 digital In ports
8 digital Out ports
4 relay ports
