Print Mechanism

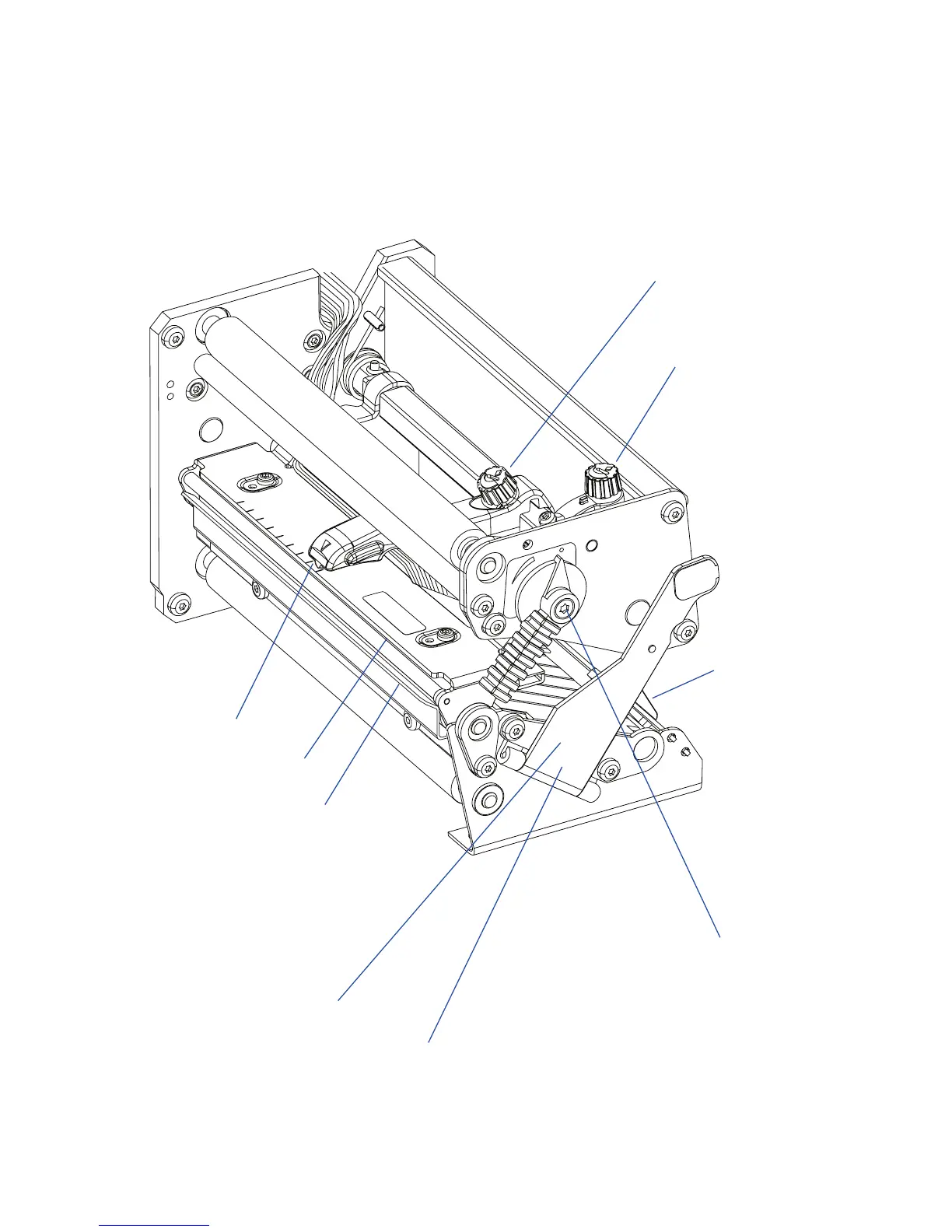

The print mechanism features a high-performance thermal printhead
with quick-mount fi ttings to facilitate replacement.
Label stop sensor
position adjustment screw
(hidden inside locking
handle)
Thermal printhead
Tear bar
Pressure
arm
Printhead lift
lever
Edge
guide
Printhead
pressure
adjustment
knob
Pressure arm
locking knob
Locking handle
