32 EasyCoder PX6i User’s Guide (Fingerprint version)
Chapter 4 — Media Load
Peel-Off , cont.

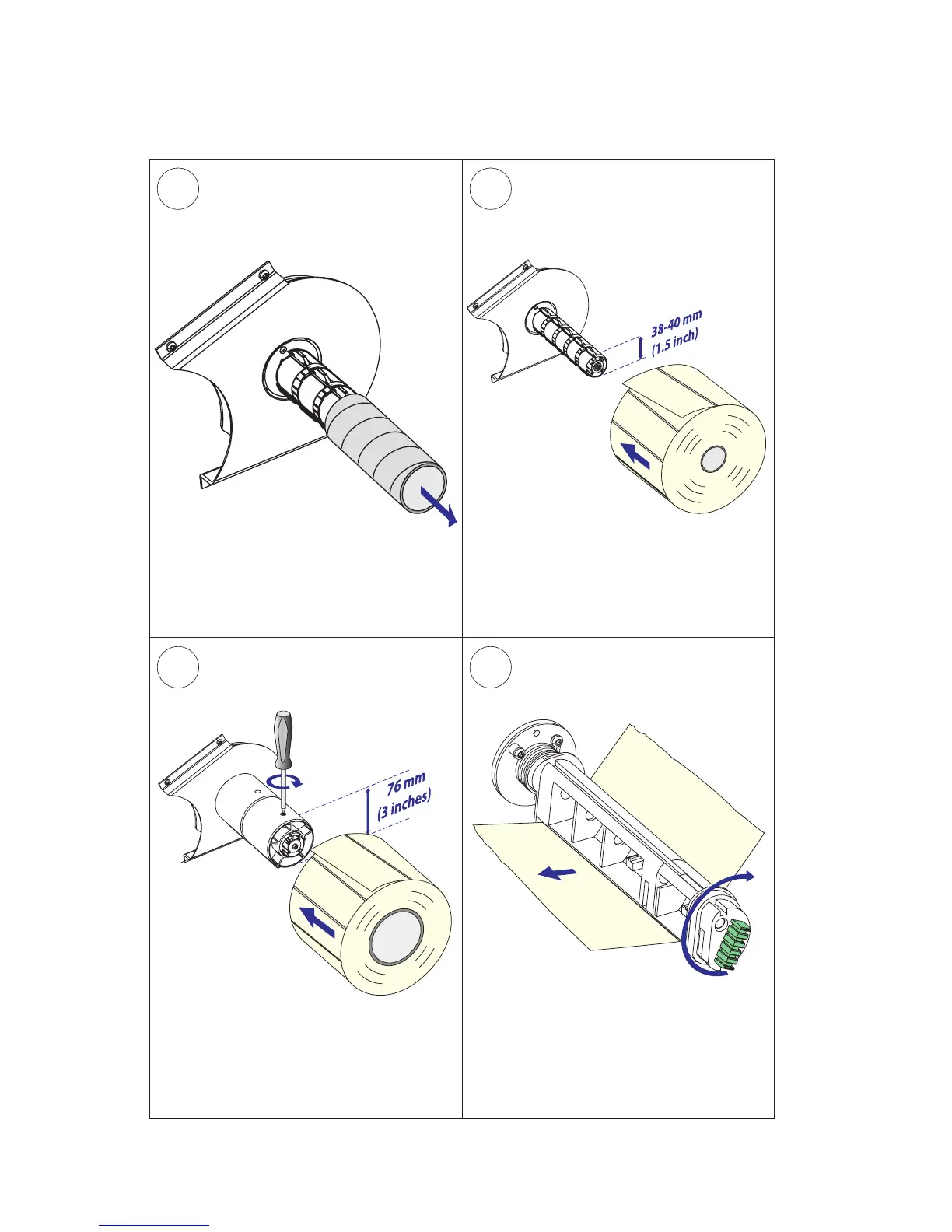

In case of a media roll with a 76 mm (3-
inch) core, fi rst fi t two adapters on the
media supply hub.
Fit a new roll of media on the media
supply hub and push the roll inwards as
far as it will go.
Route the media underneath the slack
absorber and forward towards the print
mechanism. The slack absorber can be
rotated for better access and snap-
locked in open positon.
Remove any empty core from the media
supply hub.
