Invacare Solara - 2 INCH DROP MOUNT

SECTION 5—SEAT
Part No 1085787 23 Solara
™
and Solara
™
Limited

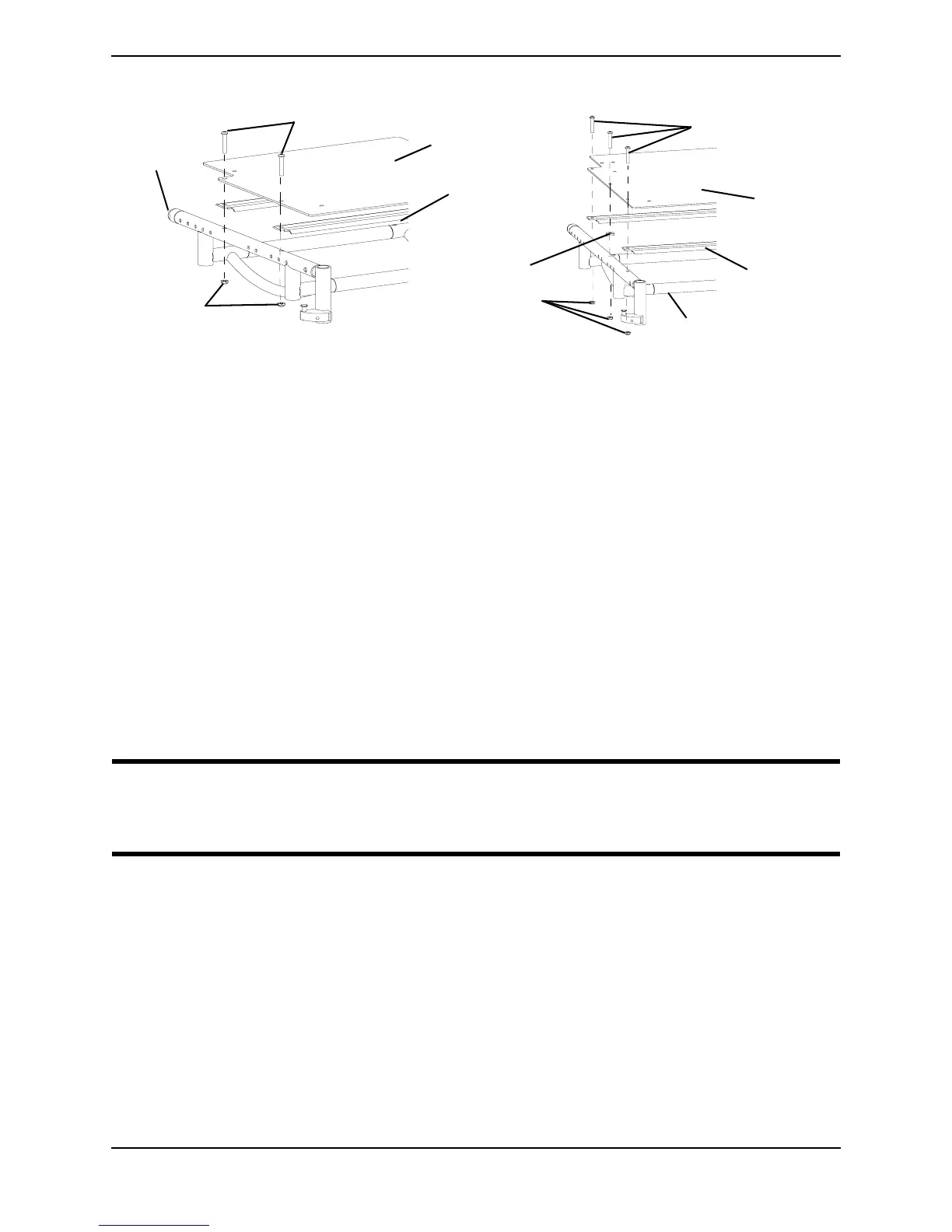

FIGURE 5.1 - FLUSH MOUNT
2 INCH DROP MOUNT
NOTE: Refer to FIGURE 5.2 for this procedure.
1. Remove the seat cushion from the seat pan.
2. Remove the four (4) mounting screws and locknuts that secure existing seat pan to the
crossmembers.
3. Do one (1) of the following:
A. Short Frame - Remove seat pan from wheelchair.
B. Medium or Long Frame - Remove seat pan with drop hooks from the wheelchair.
4. Do one (1) of the following:
A. Short Frame - Install new seat pan onto the wheelchair as shown in FIGURE 5.2.
B. Medium or Long Frame - Install the new seat pan with drop hooks onto the
wheelchair as shown in FIGURE 5.2.
 WARNING
After installation and BEFORE use, ensure drop hooks are flush and secured to the
side rails - otherwise injury or damage may occur.
5. Secure the new seat pan with the four (4) mounting screws and locknuts to the
crossmembers.
6. Reinstall seat cushion onto seat pan.
Wheelchair
Frame
Locknuts
Mounting Screws
Seat Pan
Seat Pan
Support
Mounting Screws
Seat Pan
Seat Pan
Support
Wheelchair Frame
Locknuts
Coved Spacer
SHORT FRAME MEDIUM OR LONG FRAME
