7. Remove the allen screw, spacers and locknut from the back canes.
NOTE: The allen screw, spacers and locknut will be reused.
8. Slide the spreader bar down to remove from the back canes.
NOTE: To install a new spreader bar onto back canes refer to Removing/Installing the Spreader
Bar on page 41.
NOTE: To replace the back canes, refer to Removing/Installing the Back Canes on page 43.
INSTALLING
1. Slide the new/existing spreader bar onto the new/existing back canes.
2. Install the existing allen screw, spacers and locknut to the back canes as shown in
FIGURE 7.3.
3. Position the new/existing back canes with spreader bar over seat latch.
4. Align the coved washers between the back cane and back angle plate as shown in
FIGURE 7.3.
5. Secure the back cane to the back angle plate with the locknut.
6. Repeat STEPS 4-5 for opposite side.
7. Position the spreader bar at the desired height.
NOTE: Before tightening the allen screws, ensure the spreader bar does NOT interfere with the
back angle plates.
8. Securely tighten the allen screws to secure the spreader bar to the back canes.
9. Secure the cables to the back canes with the tie wraps.
10. Reinstall the back. Refer to the Back Systems Owner’s Manual for removing/installing
procedures.

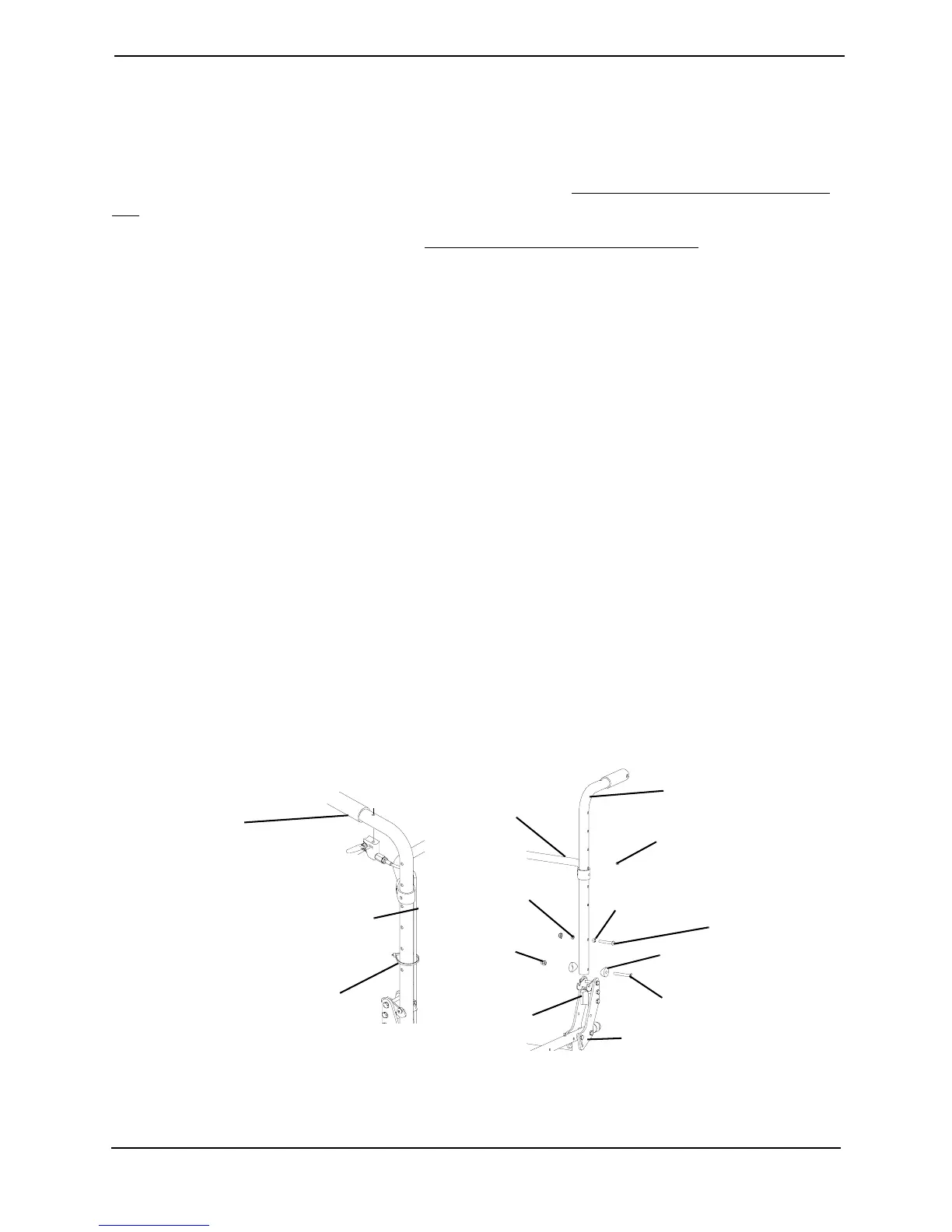

FIGURE 7.3 - REMOVING/INSTALLING THE SPREADER BAR
Tie Wrap
Back Cane
Back Cane
Allen Screw
(Loosen)
Allen Screw
Spreader Bar
Locknut
Locknut
Seat Latch
Back Angle Plate
Coved Washer
Hex Screw
Cable
Spacer
