SECTION 5—SEAT
Solara
™
and Solara
™
Limited 26 Part No 1085787

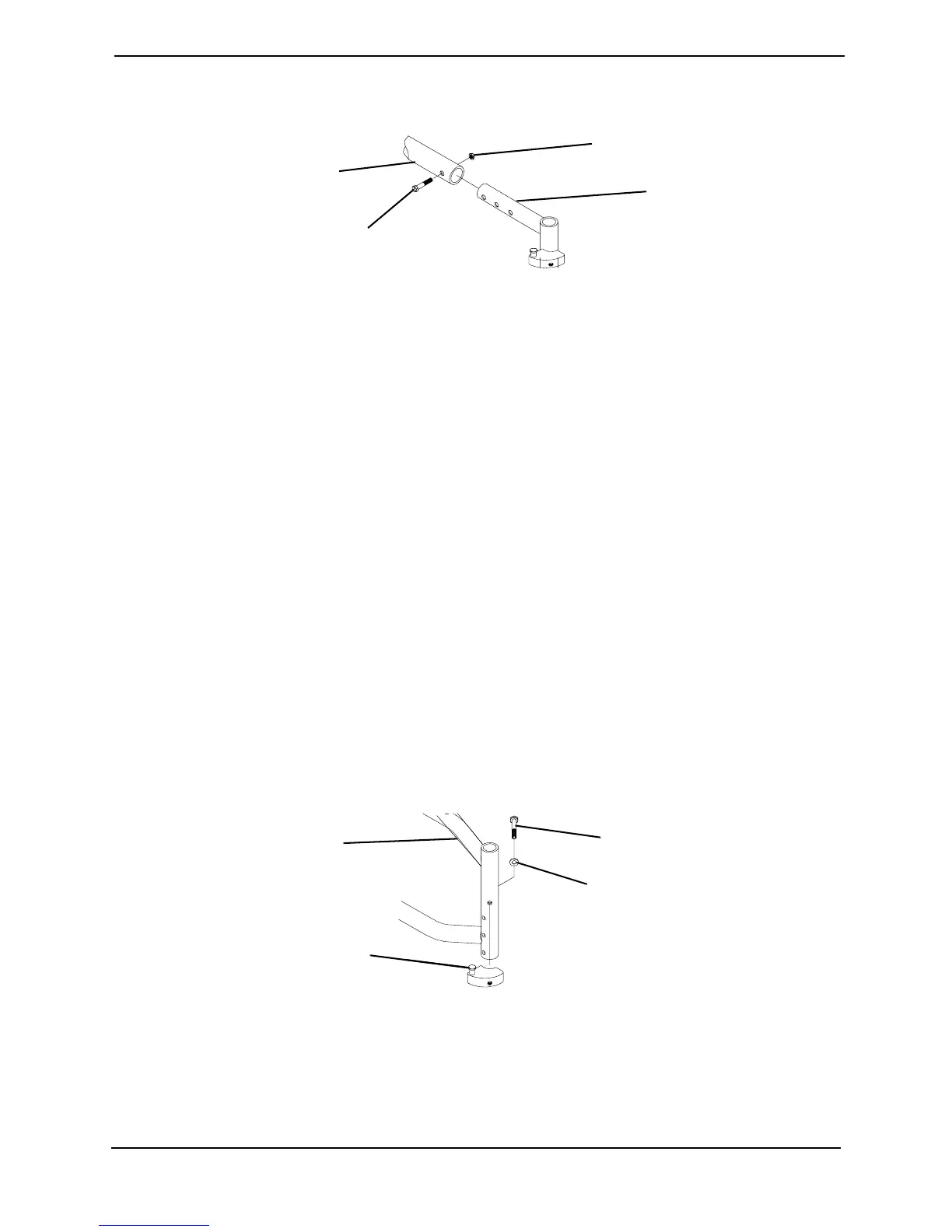

FIGURE 5.4 - ADJUSTING/REMOVING/INSTALLING TELESCOPING FRONT
RIGGING SUPPORT
REMOVING/INSTALLING SECTOR BLOCK
NOTE: Refer to FIGURE 5.5 for this procedure.
1. Remove the front rigging from the wheelchair. Refer to the Owner's Manual, part
number 1080556.
2. Remove the hex screw and washer that secure the existing sector block to the
wheelchair frame.
3. Remove existing sector block from wheelchair.
4. Position the new sector block on the wheelchair frame with the locking pin facing up
as shown in FIGURE 5.5
5. Apply Loctite™ to threads of the existing hex screw.
6. Securely tighten the new sector block to the wheelchair frame with the existing hex
screw and washer.
7. Install the front rigging onto the wheelchair. Refer to the Owner's Manual, part
number 1080556.
FIGURE 5.5 - REMOVING/INSTALLING SECTOR BLOCK
Wheelchair
Frame
Hex Screw
Locknut
Telescoping
Front Rigging
Support
Hex Screw
Washer
Wheelchair
Frame
Locking Pin
