SECTION 7—BACK
Part No 1085787 43 Solara
™
and Solara
™
Limited
REMOVING/INSTALLING THE BACK CANES
WARNING
BEFORE performing this procedure, refer to General Guidelines on page 13 for
additional requirements.
NOTE: Refer to FIGURE 7.4 for this procedure.
REMOVING
1. Remove the spreader bar from the wheelchair. Refer to Removing/Installing the
Spreader Bar on page 41.
2. Remove the mounting screw and locknut that secures the trigger release lever to the
back cane as shown in FIGURE 7.4.
3. Repeat STEP 2 for opposite side, if necessary.
4. Install the new back canes. Refer to Removing/Installing the Back Canes on page 43.
INSTALLING
1. Install existing mounting screw and locknut to secure the trigger release lever to the
new back cane.
2. Install the spreader bar onto the wheelchair. Refer to Removing/Installing the
Spreader Bar on page 41.

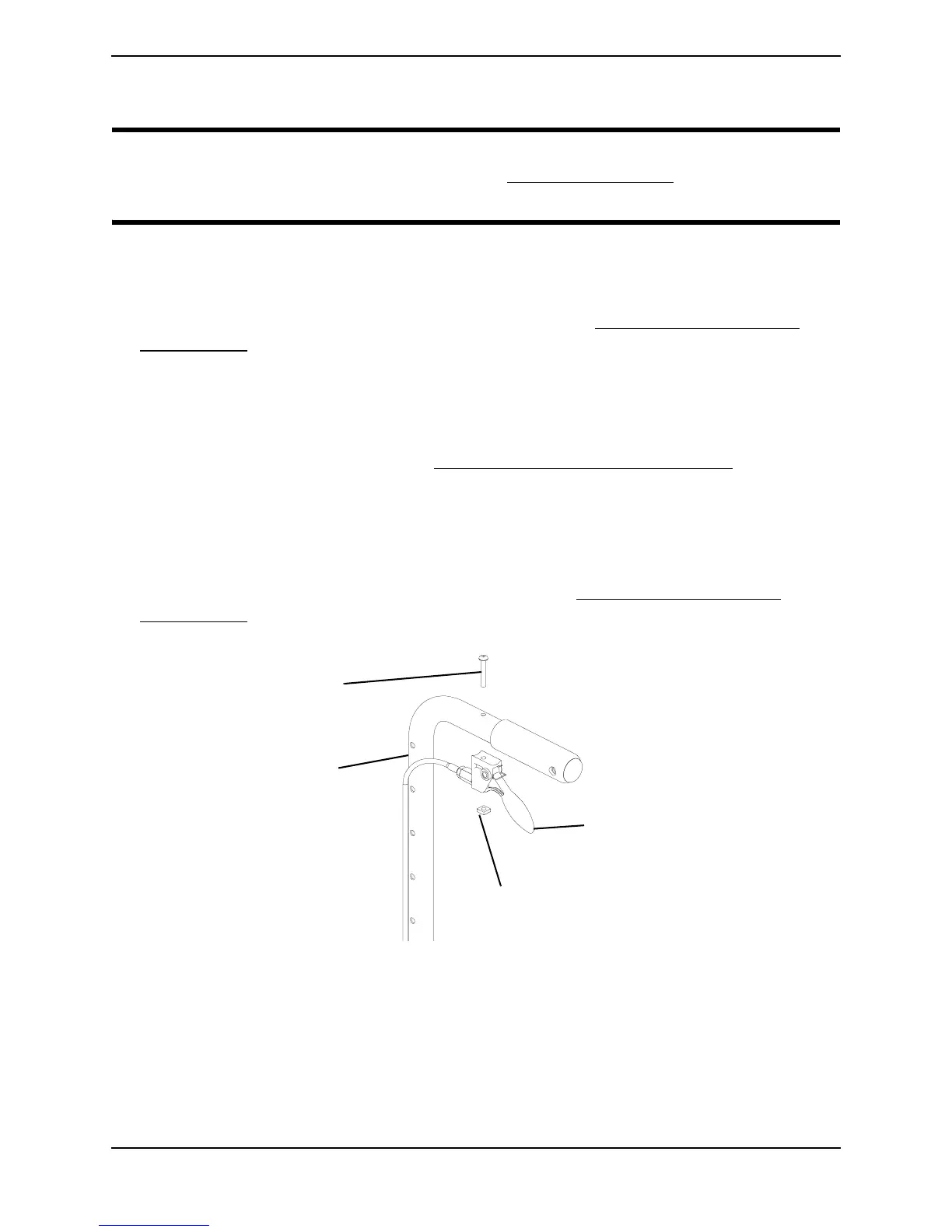

FIGURE 7.4 - REMOVING/INSTALLING THE BACK CANES
Back Cane
Mounting
Screw
Locknut
Trigger Release
Lever
