SECTION 6—ARMS
Part No 1085787 37 Solara
™
and Solara
™
Limited
5. Line up the mounting holes in the T-Arm socket with the threaded holes in the T-Arm
clamp.
6. While holding the T-Arm socket and the T-Arm clamp together, install the four (4) hex
screws and washers into mounting holes and tighten loosely.
7. Adjust the T-Arm socket. Refer to the Owner's Manual, part number 1080556.
8. Repeat STEPS 2-7 for opposite side of wheelchair.
9. Install the T-Arm into the T-Arm sockets. Refer to the Owner's Manual, part number
1080556.

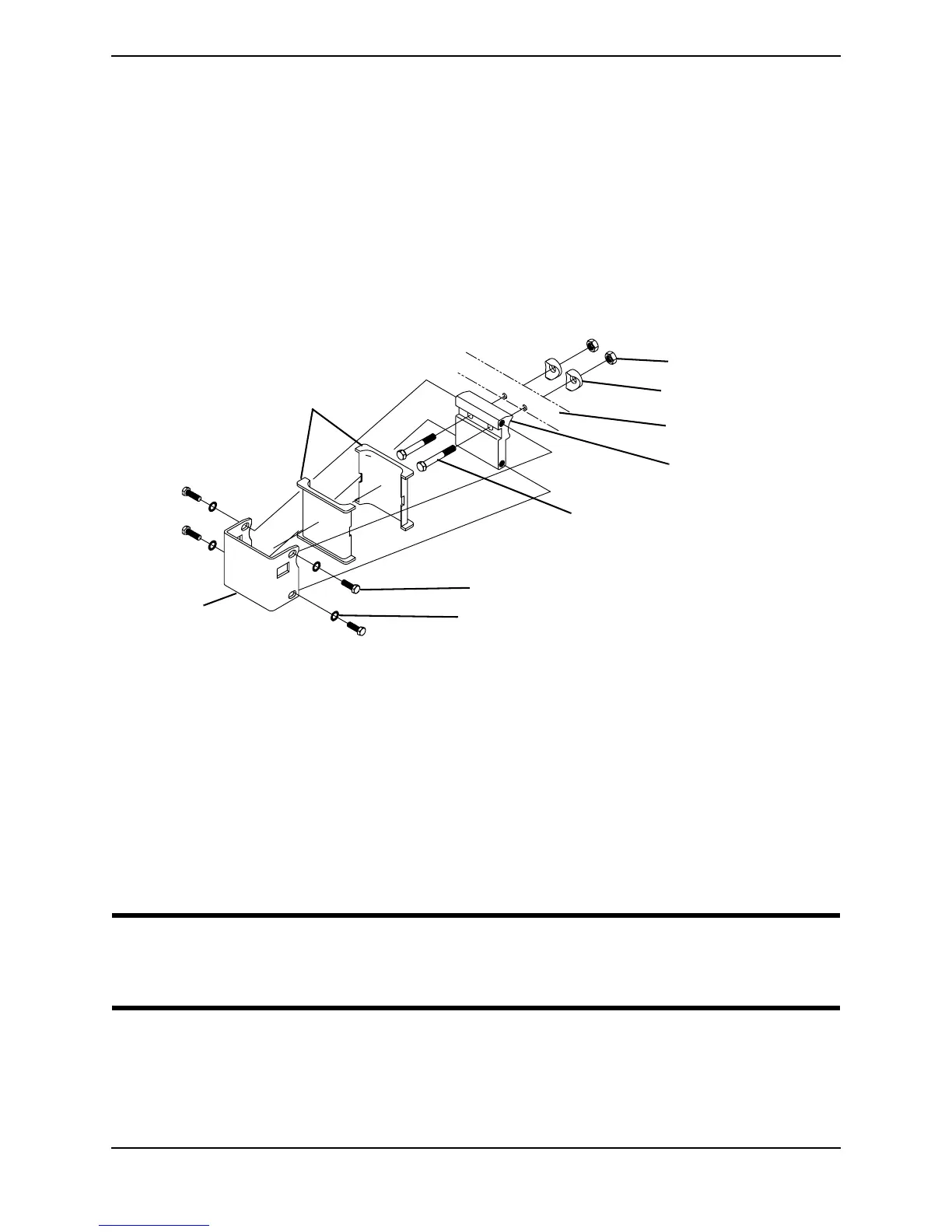

FIGURE 6.4 - INSTALLING T-ARM SOCKETS
REPLACING THE LOCKING LEVER - T-ARMS
NOTE: Refer to FIGURE 6.5 for this procedure.
1. Remove the T-Arm from the wheelchair. Refer to the Owner’s Manual, part number
1080556.
2. Remove the mounting bolt and locknut that secure the existing locking lever to the
bottom bracket.
CAUTION
The locking lever is spring loaded. Place your free hand over the locking lever to
prevent the parts from springing off of the bottom bracket.
3. Remove the existing locking lever and spring from the bottom bracket.
NOTE: Inspect the spring and replace if necessary.
4. Position the spring on the bottom bracket as shown in FIGURE 6.5.
5. Position the new locking lever onto the spring and the bottom bracket.
T-Arm Socket
Hex Bolts
Locknut
Coved Washer
Wheelchair Frame
T-Arm Clamp
Hex Screw
Washer
T-Arm Socket Inserts
