SECTION 9—TILT-IN-SPACE
Part No 1085787 51 Solara
™
and Solara
™
Limited
SECTION 9—TILT-IN-SPACE
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may result.
REMOVING/INSTALLING TRIGGER RELEASE
LEVER WITH CABLE
NOTE: Refer to FIGURE 9.1 for this procedure.
REMOVING TRIGGER RELEASE WITH CABLE
1. Cut tie wrap that secures the cable to the back cane.
2. Remove the mounting screw and locknut that secures the trigger release lever to the
back cane as shown in Detail "A".
3. Remove the two (2) allen screws and washers that secure the cable to the bearing
housing as shown in Detail "B".
4. Remove existing trigger release lever with cable from the wheelchair.
5. Repeat STEPS 1-4 for opposite side, if necessary.
6. Install the new trigger release lever with cable. Refer to Installing Trigger Release with
Cable on page 52.

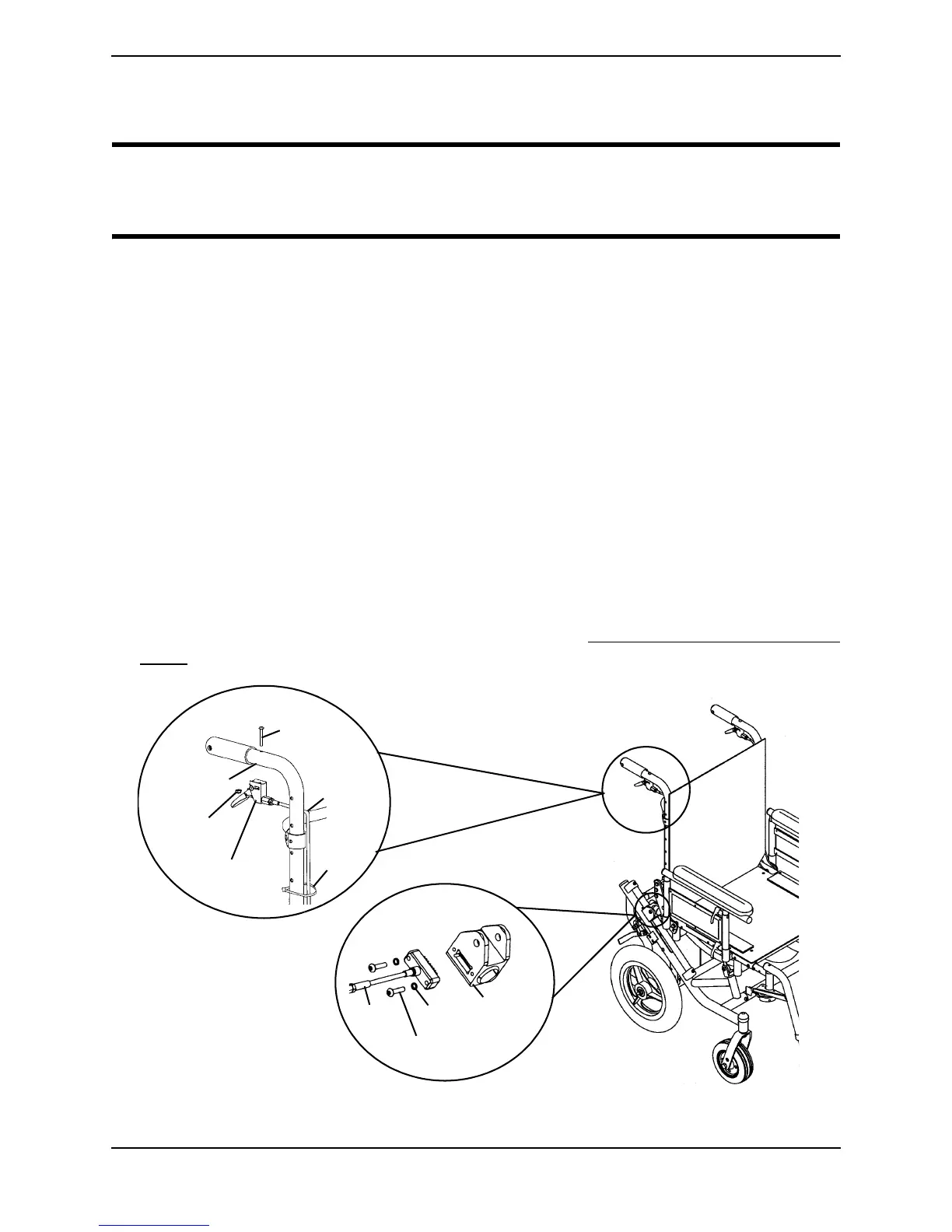

FIGURE 9.1 - REMOVING/INSTALLING TRIGGER RELEASE LEVER WITH
CABLE
Tie
Wrap
Mounting
Screw
Cable
Trigger Release
Lever
Back Cane
Locknut
Cable
Allen
Screw
Washer
Bearing
Housing
DETAIL “A”
DETAIL “B”
