Invacare Solara - REMOVING AND INSTALLING ROLLER

SECTION 9—TILT-IN-SPACE
Part No 1085787 55 Solara
™
and Solara
™
Limited

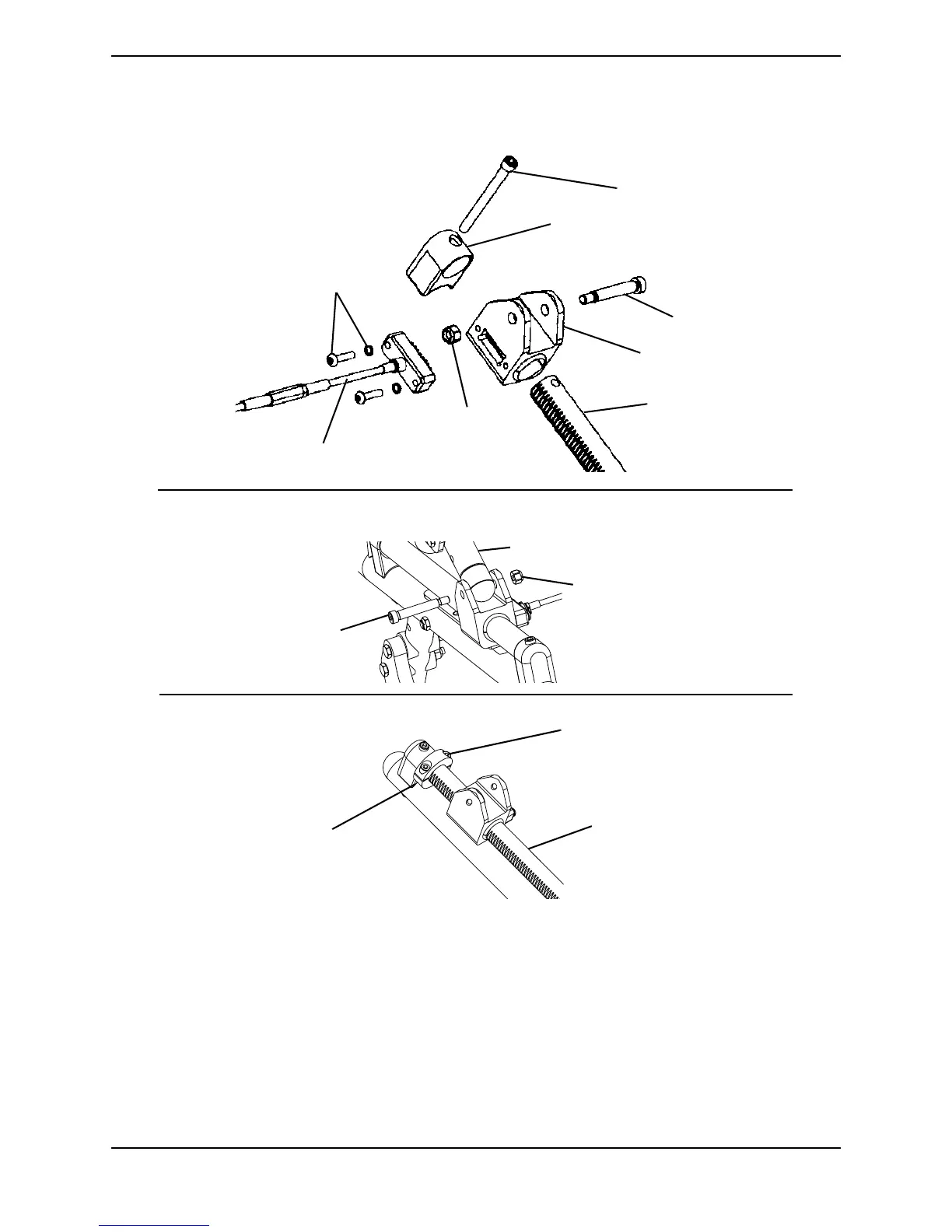

FIGURE 9.3 - REMOVING/INSTALLING BEARING HOUSING
REMOVING AND INSTALLING ROLLER
REMOVING ROLLER
1. Remove the seating system from the wheelchair, if necessary. Refer to the Seating
Systems Owner’s Manual for installing/removing procedures.
Allen Screw
Tilt Slide Housing
Allen Screw
Bearing Housing
Allen Screw and
Washer
Trigger Release Cable
Tilt Slide
Locknut
Shoulder Screw
Seat Frame
Locknut
Allen Screw
Tilt Slide
UPPER Tilt Locking
Collar
DETAIL “B”
DETAIL “A”
DETAIL “C”
