Invacare Solara - INSTALLING T-ARM SOCKETS

SECTION 6—ARMS
Solara
™
and Solara
™
Limited 36 Part No 1085787

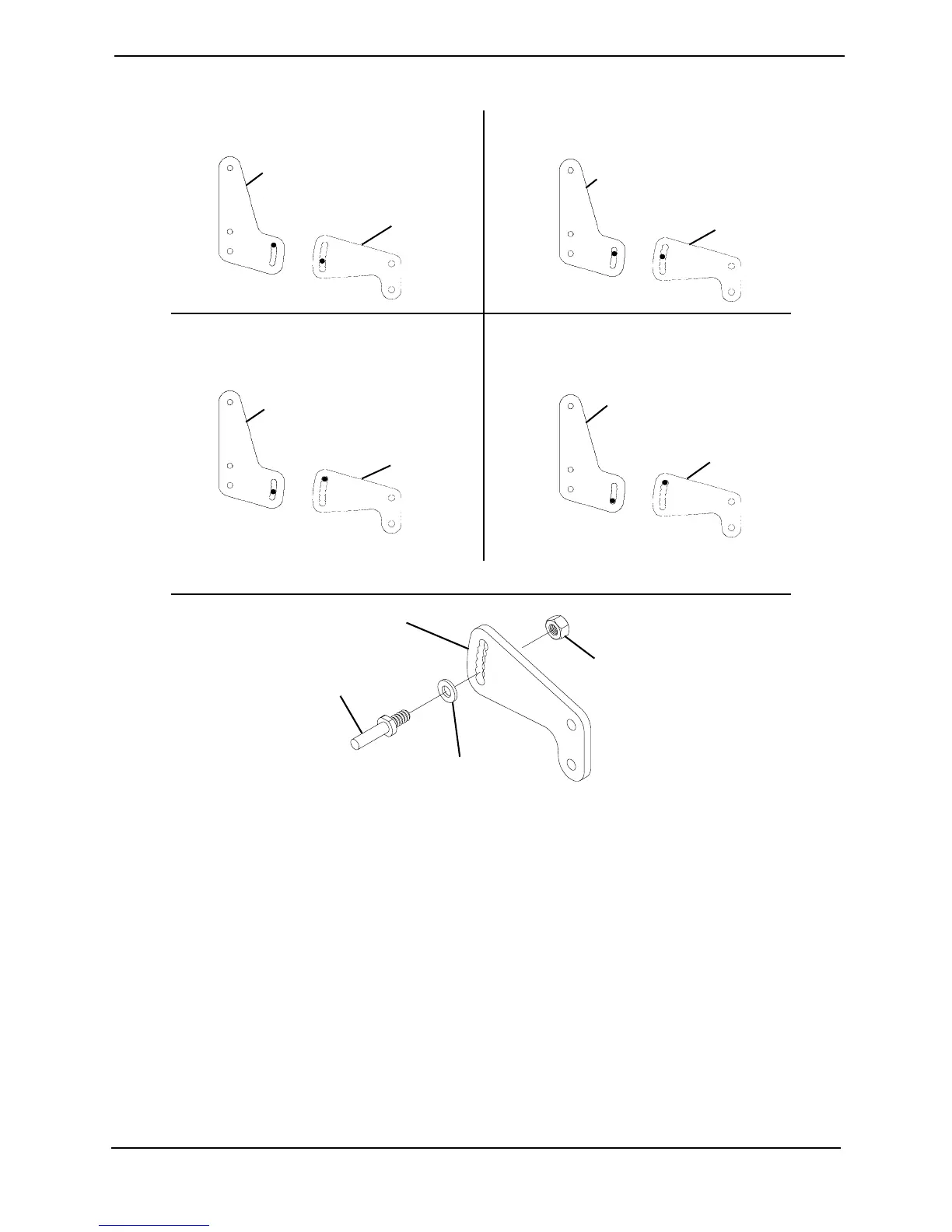

FIGURE 6.3 - ADJUSTING CANTILEVER ARM ANGLE
INSTALLING T-ARM SOCKETS
NOTE: Refer to FIGURE 6.4 for this procedure.
1. Remove rear wheels from wheelchair, if necessary, refer to the Owner's Manual, part
number 1080556.
2. Position the T-Arm clamp on the wheelchair frame as shown in FIGURE 6.4.
NOTE: The T-Arm socket must be positioned on the outside of the wheelchair frame.
3. Install hex bolts through T-Arm clamp, wheelchair frame and coved washers and
tighten securely with locknuts.
4. Position the T-Arm socket inserts in the T-Arm socket as shown in FIGURE 6.4.
90°
110°
100°
120°
Arm Adjustment Plate
Locking Pin
Washer
Locknut
Back Angle Adjustment
Back Angle Adjustment
Back Angle Adjustment
Back Angle Adjustment
Arm
Adjustment
Plate
Arm
Adjustment
Plate
Arm
Adjustment
Plate
Arm
Adjustment
Plate
