SECTION 7—BACK
Part No 1085787 41 Solara
™
and Solara
™
Limited

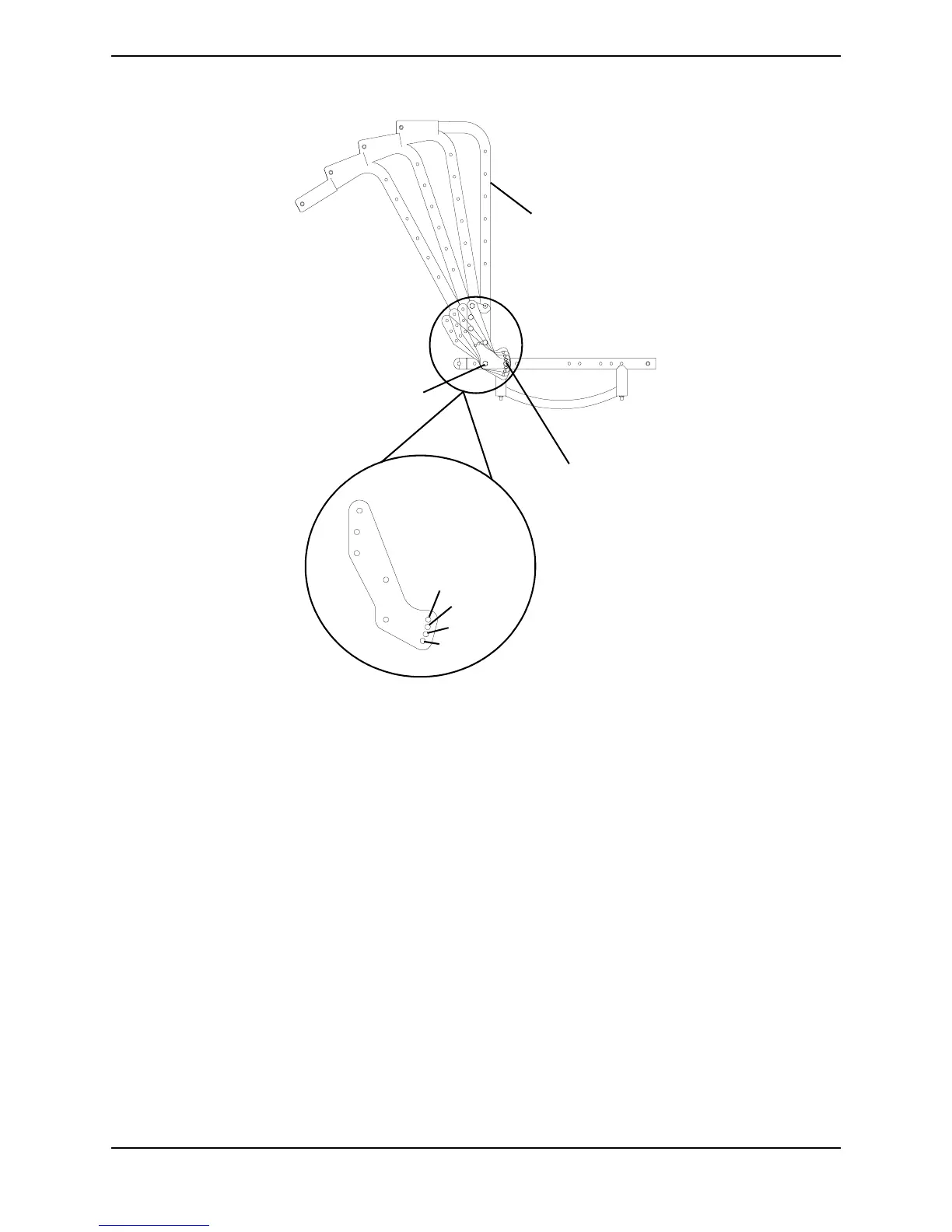

FIGURE 7.2 - BACK ANGLE ADJUSTMENT
REMOVING/INSTALLING THE SPREADER BAR
NOTE: Refer to FIGURE 7.3 for this procedure.
REMOVING
1. Remove the back from the wheelchair. Refer to the Back Systems Owner’s Manual for
removing/installing procedures.
2. Cut the tie wraps that secure the cables to the back canes.
3. Remove the hex screw, coved washers and locknut that secure the bottom of the back
cane to the back angle plate.
4. Repeat STEP 3 for opposite side.
5. Lift up and remove the back canes from the seat latch.
6. Loosen the allen screws that secure the spreader bar to the back canes.
NOTE: Before removing the hardware from the back cane, note the position of the allen screw,
spacers and locknut for reinstallation.
90°
100°
110°
120°
REAR Hex Screw
(Loosen) (STEPS 2,6)
REAR Hex Screw
(Loosen) (STEPS 2,6)
Back Cane (STEP 2)
90°
100°
110°
120°
Back Angle
Plate
(STEPS 2,3,4,5)
To Next Page
