SECTION 5—SEAT
Part No 1085787 27 Solara
™
and Solara
™
Limited
ADJUSTING SEAT-TO-FLOOR HEIGHT
WARNING
BEFORE performing this procedure, refer to General Guidelines on page 13 for
additional requirements.
For 20 and 22 inch rear wheels, there are restrictions for axle plate mounting that
will cause the wheelchair to be in an unsafe position. Refer to the following,
BEFORE repositioning axle plate.

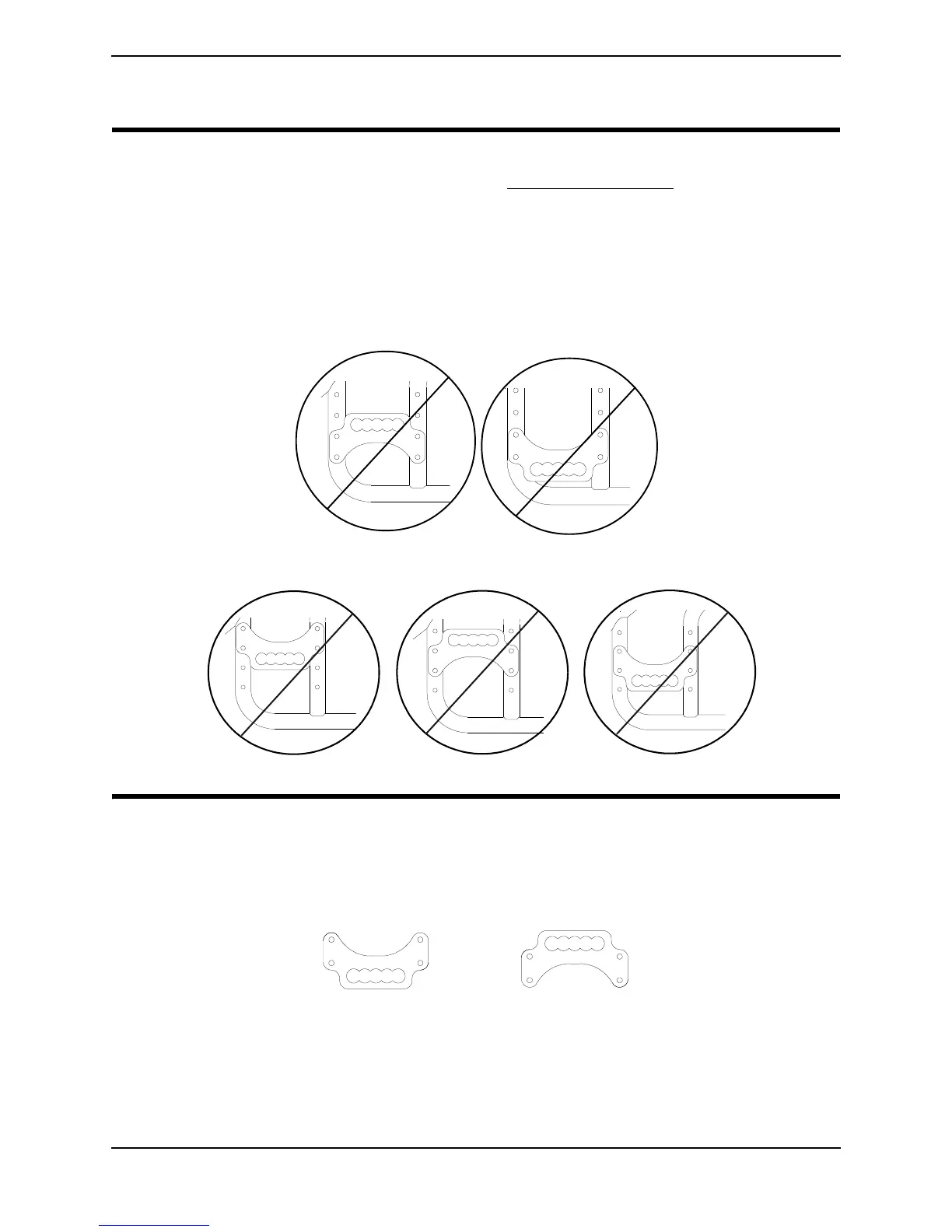

NEVER USE THESE AXLE MOUNTING POSITIONS
FOR 20 or 22-inch wheels
NEVER USE THESE AXLE MOUNTING POSITIONS FOR 22-inch wheels
NOTE: The following illustration shows the two (2) mounting positions for the axle mounting
plate when determining Seat-to-Floor Height.
Seat-to-Floor Height is determined by measuring from the seat pan to the ground/floor.
The different Seat-to-Floor heights are possible by using different combinations of rear
wheels, caster size, fork assemblies and axle plate position.
NOTE: Refer to the charts on the following pages for the correct settings for the desired Seat-to-
Floor Height.
Axle Plate
Rounded UP
Axle Plate
Rounded DOWN
