SECTION 8—WHEELS
Part No 1085787 49 Solara
™
and Solara
™
Limited
REPOSITIONING AXLE BUSHING
WARNING
BEFORE performing this procedure, General Guidelines on page 13 for additional
requirements.
Lengthening the Wheelbase will increase stability and maintain standard
maneuverability of the wheelchair.
Shortening the Wheelbase will increase maneuverability and distribute additional
weight onto the rear wheels.
1. Remove the rear wheel from the wheelchair. Refer to Installing/Removing Rear
Wheels in the Owner's Manual, part number 1080556.
2. Loosen the two (2) jam nuts that secure the axle bushing to the axle plate.
3. Move the axle bushing to one (1) of the five (5) positions as shown in FIGURE 8.5.
4. Securely tighten the jam nuts that secure the axle bushing to the axle plate.
5. Reinstall the rear wheel onto the wheelchair. Refer to the Owner's Manual, part
number 1080556.
6. Repeat STEPS 1-5 for the opposite side of the wheelchair.
NOTE: Make sure the axle bushings are mounted in the same position. This will help avoid a
"3-wheeling" situation.
7. Adjust the wheel locks. Refer to the Owner's Manual, part number 1080556.
8. Adjust the anti-tippers to maintain proper clearance. Refer to the Owner's Manual,
part number 1080556.

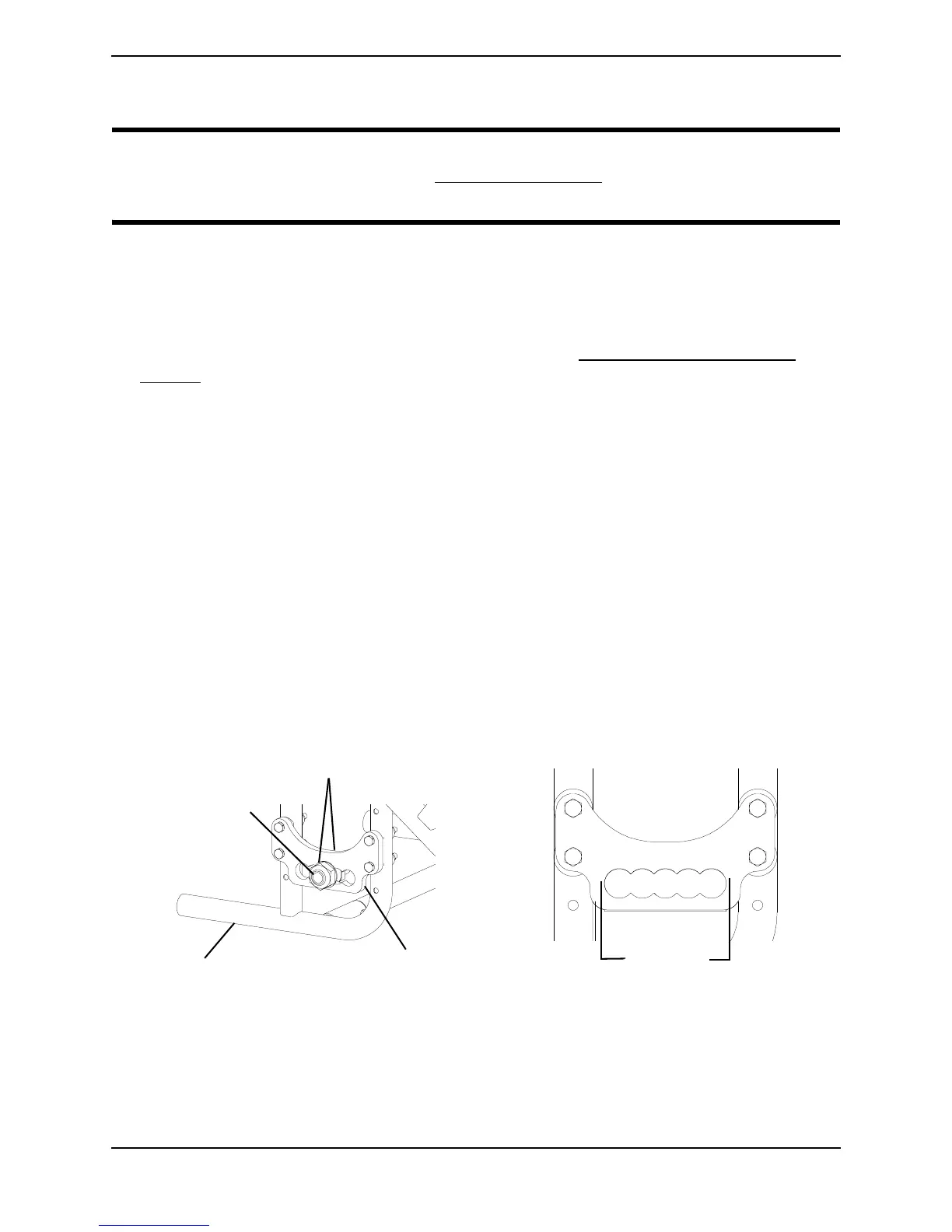

FIGURE 8.5 - REPOSITIONING AXLE BUSHING
Jam Nuts
Wheelchair Frame
Axle Bushing
Axle Plate Axle Bushing
Mounting Positions
