SECTION 9—TILT-IN-SPACE
Part No 1085787 53 Solara
™
and Solara
™
Limited
5. If necessary, install the seating system onto the wheelchair. Refer to the Seating
Systems Owner’s Manual for installing/removing procedures.

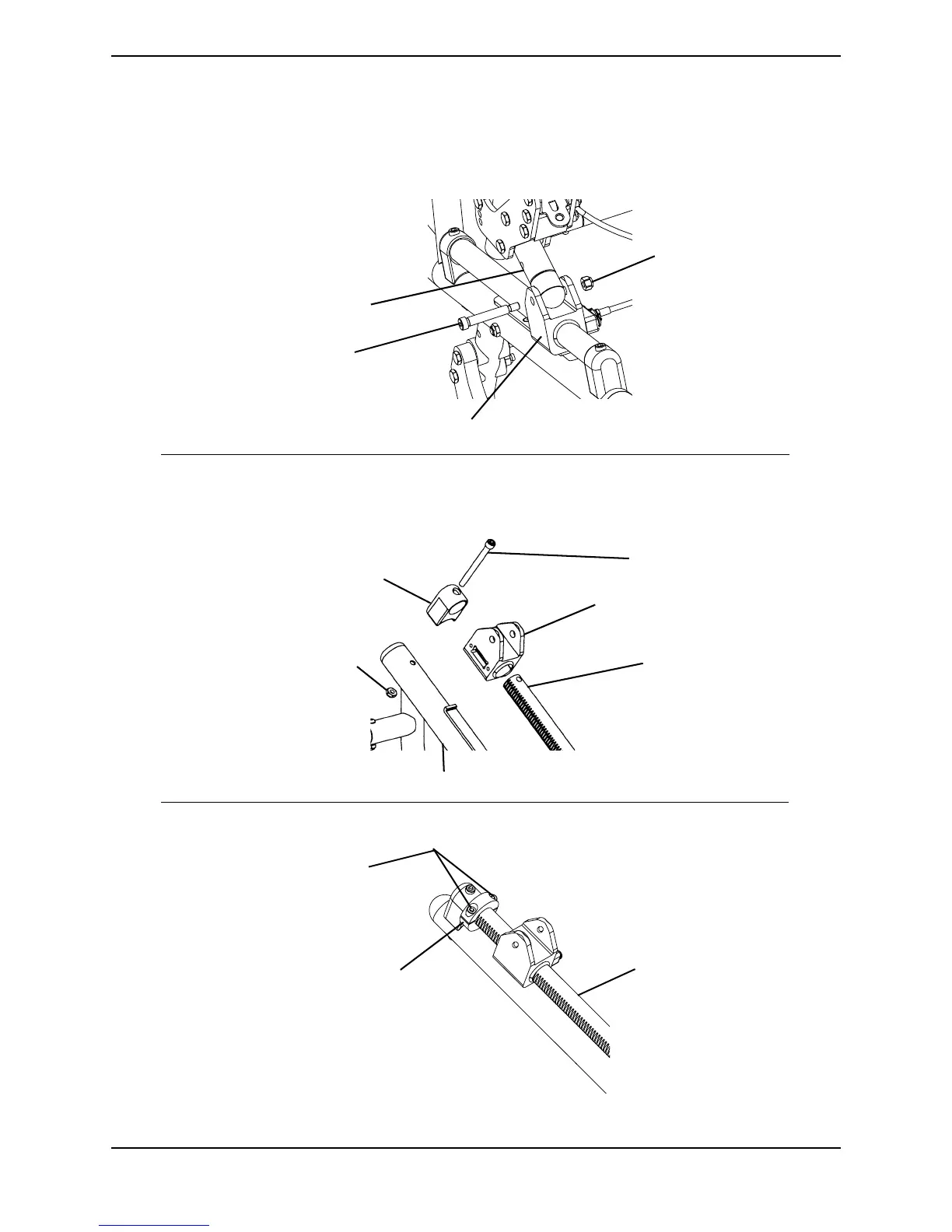

FIGURE 9.2 - REMOVING/INSTALLING TILT SLIDE
Allen Screw
Bearing Housing
Tilt Slide
Wheelchair Frame
Tilt Slide Housing
Locknut
Locknut
Bearing Housing
Shoulder Screw
Seat Frame
Allen Screws
Tilt Locking Collar
Tilt Slide
DETAIL “B”
DETAIL “A”
DETAIL “C”
