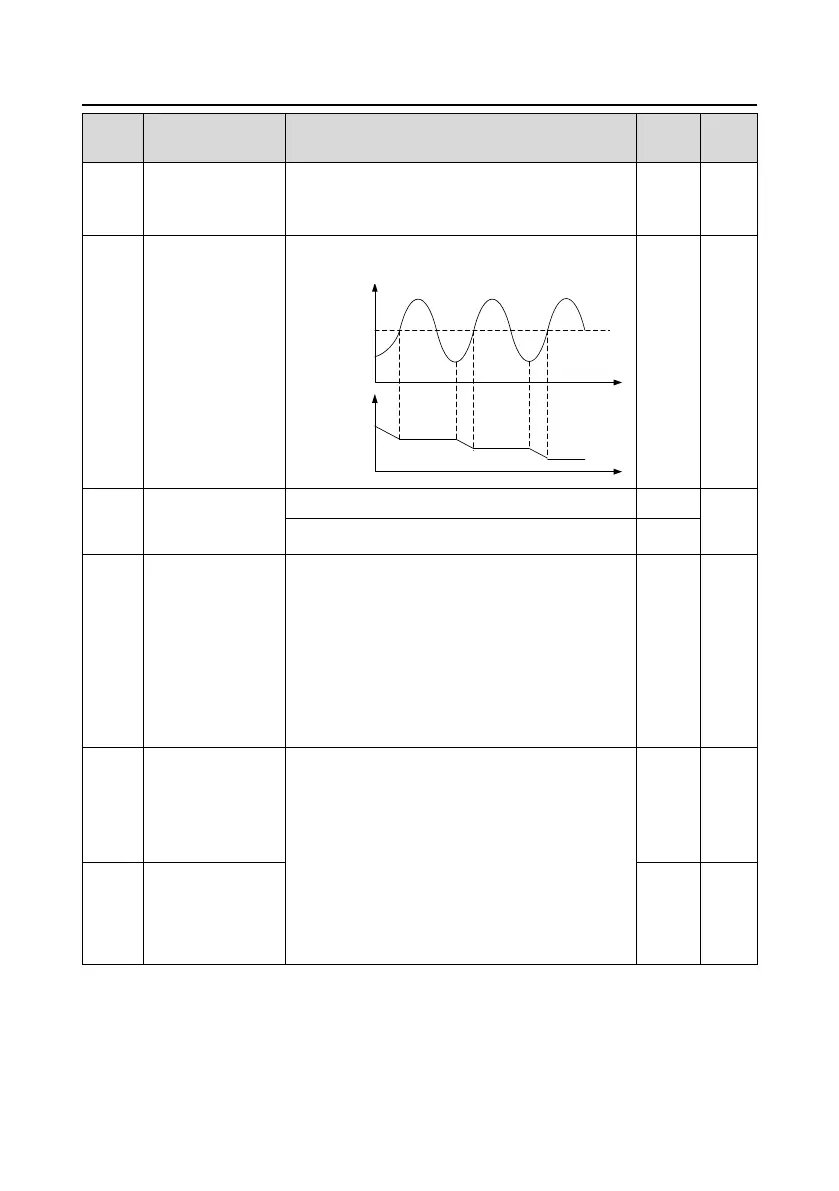

Goodrive35 Series Closed-loop Vector Control VFD Function parameters
104
Functio
n code
Name
Detailed instruction of parameters
Default
value
Modif
y
switching of the grid.
2. Prohibition of input phase loss protection can
enable this function.
P11.03
Overvoltage stall
protection
0: Disable
1: Enable
Overvoltage stall
threshold
Output
frequency
Time t
Time t
DC bus voltage V
0
○
P11.04
Voltage protection of
overvoltage stall
120–150% (standard bus voltage) (380 V)
136%
○
120–150% (standard bus voltage) ( 660 V)
120%
P11.05
Current limit action
selection
The actual increasing ratio of motor speed is lower
than the ratio of output frequency because of the big
load during ACC running. It is necessary to take
measures to avoid overcurrent fault and the VFD
trips.
Ones: current limit setting
0: Invalid
1: Valid
1
◎
P11.06
Automatic current
limit
During the running of the VFD, it will detect the
output current and compare it with the limit level
defined in P11.06. If it exceeds the level, the VFD
will run at stable frequency in ACC running, or the
VFD will derate to run during the constant running. If
it exceeds the level continuously, the output
frequency will keep on decreasing to the lower limit.
If the output current is detected to be lower than the
limit level, the VFD will accelerate to run.
160.0%
◎
P11.07
Frequency-decreasi
ng ratio during
current limit
10.00
Hz/s
◎
