Goodrive35 Series Closed-loop Vector Control VFD Function parameters
105
Functio
n code
Name
Detailed instruction of parameters
Default
value
Modif
y

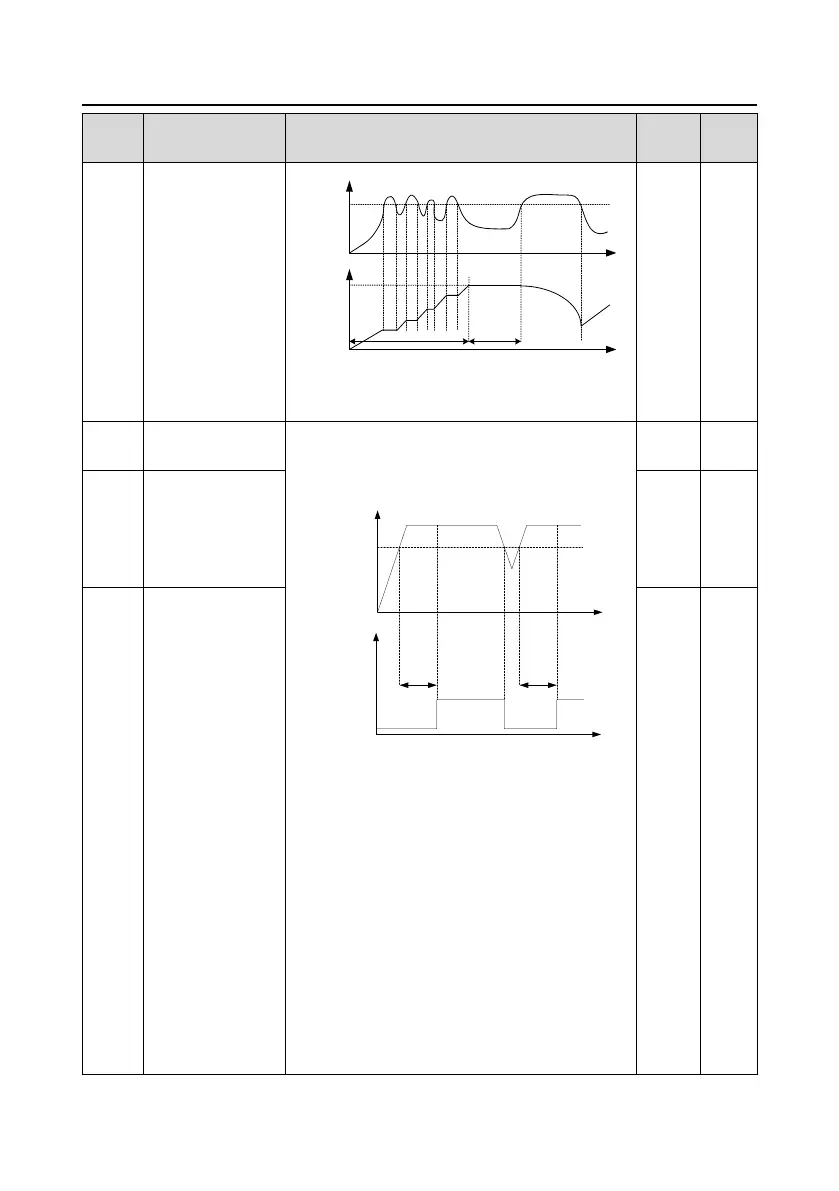

Output current A
Output frequency f
Current-limit
threshold
Set
frequency
Acceleration
Constant
speed
Time t
Time t
Setting range of P11.06: 50.0–200.0%
Setting range of P11.07: 0.00–50.00 Hz/s
P11.08
Overload pre-alarm
of motor/VFD
The output current of the VFD or the motor is above
P11.09 and the lasting time is beyond P11.10,
overload pre-alarm will be output.
Y,
RO1, RO2
Output current
Overload pre-alarm
threshold
Time t
Time t
Pre-alarm time tPre-alarm time t
Setting range of P11.08:
Enable and define the overload pre-alarm of the VFD
and the motor.
Setting range: 0x000–0x131
LED ones:
0: Overload/underload pre-alarm for the motor,
relative to the rated current of the motor
1: Overload/underload pre-alarm for the VFD,
relative to the rated current of the VFD
LED tens:
0: The VFD continues to work after an
overload/underload pre-alarm is generated.
1: The VFD continues to work after an underload
0x000
○
P11.09
Overload pre-alarm
detection
150%
○
P11.10
Overload pre-alarm
detection time
1.0 s
○
