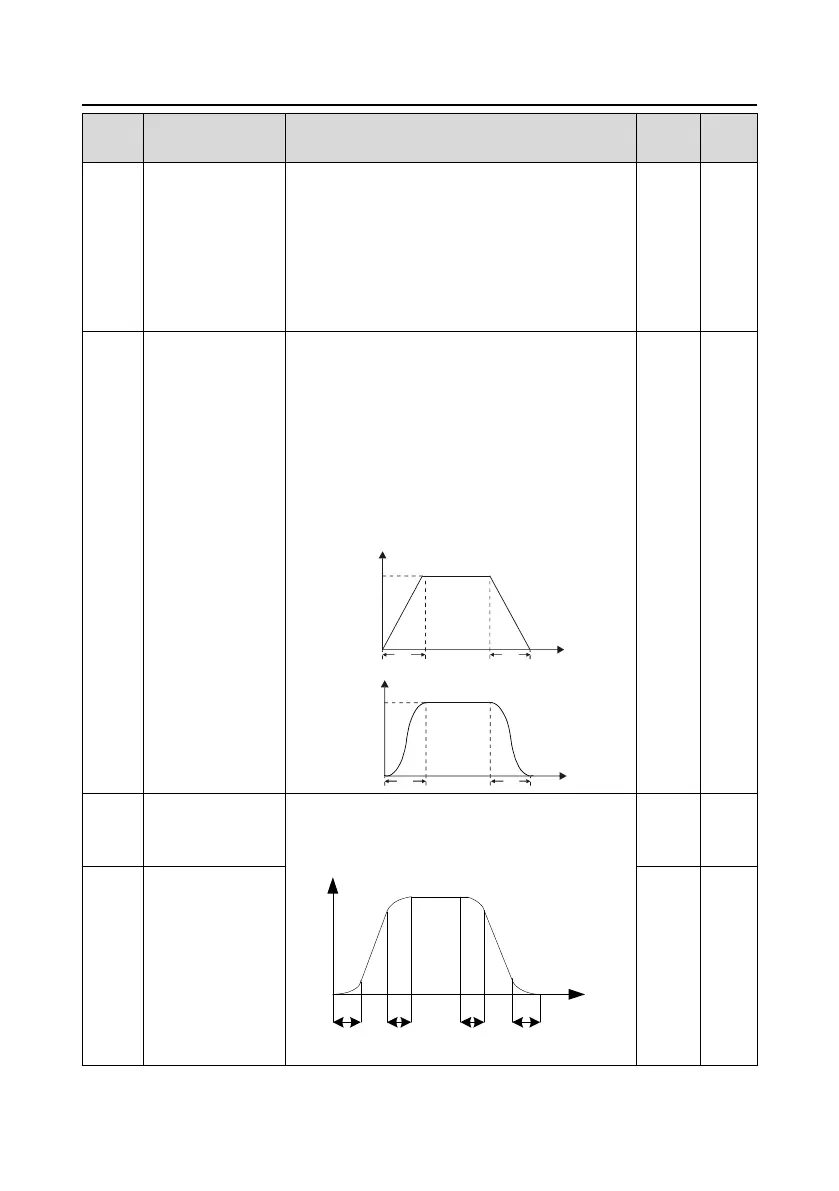

Goodrive35 Series Closed-loop Vector Control VFD Function parameters
54
Functio
n code
Name
Detailed instruction of parameters
Default
value
Modif
y
P01.04
The brake time
before starting
brake time. If the DC brake time is set to 0, the DC
brake is invalid.
The stronger the brake current, the bigger the brake
power. The DC brake current before starting means
the percentage of the rated current of the VFD.
The setting range of P01.03: 0.0100.0%
The setting range of P01.04: 0.030.0s
0.0 s
P01.05
ACC/DEC selection
The changing mode of the frequency during start-up
and running.
0: Linear type. The output frequency increases or
decreases linearly.
1: S curve. The output frequency increases or
decreases according to the S curve.
S curve is generally used in cases where smooth
startup/stop is required eg elevator, conveyor belt,
etc.
fmax
Output frequency f
t1
t2
Time t
fmax
t1
t2
Time t
Output frequency f
0
P01.06
ACC time of the
starting step of S
curve
The curve rate of S curve is determined by the
acceleration range and acceleration/deceleration
time.
Output frequency f
Time t
t1 t2 t1 t2
t1=P01.06
t2=P01.07
Setting range: 0.050.0s
0.1 s
P01.07
DEC time of the
ending step of S
curve
0.1 s
