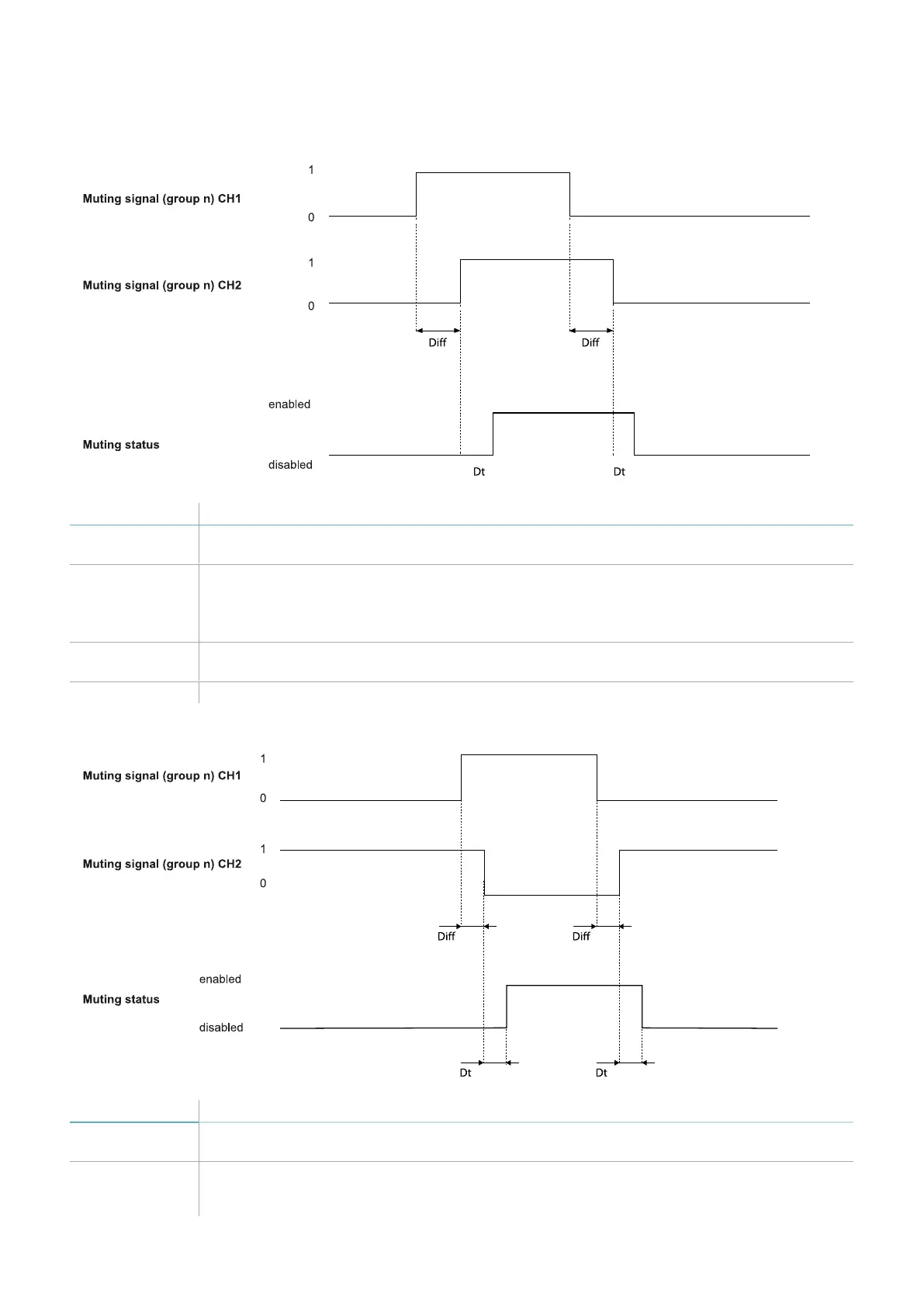

11.5.2 Muting (with/without pulse)

Without pulse (redundancy mode coherent)

Part Description

Diff Less than 100 ms. If the value is greater than 100 ms, the diagnostic alarm starts and the

system deactivates the safety outputs.

Muting signal

(group n) CH1

Muting signal

(group n) CH2

Interchangeable channel.

Muting status They are enabled as long as both channels are at a high logic level (1) and deactivated when

both channels go to a low logic level (0).

Dt Activation/deactivation delay. Less than 50 ms.

Without pulse (redundancy mode inverted)

Part Description

Diff Less than 100 ms. If the value is greater than 100 ms, the diagnostic alarm starts and the

system deactivates the safety outputs.

Muting status They are enabled as long as channel 1 of the Muting signal is at a high logic level (1) and

channel 2 is at a low logic level (0). Disabled as long as channel 1 is at a low logic level (0)

and channel 2 is at a high logic level (1).
