11. Technical references

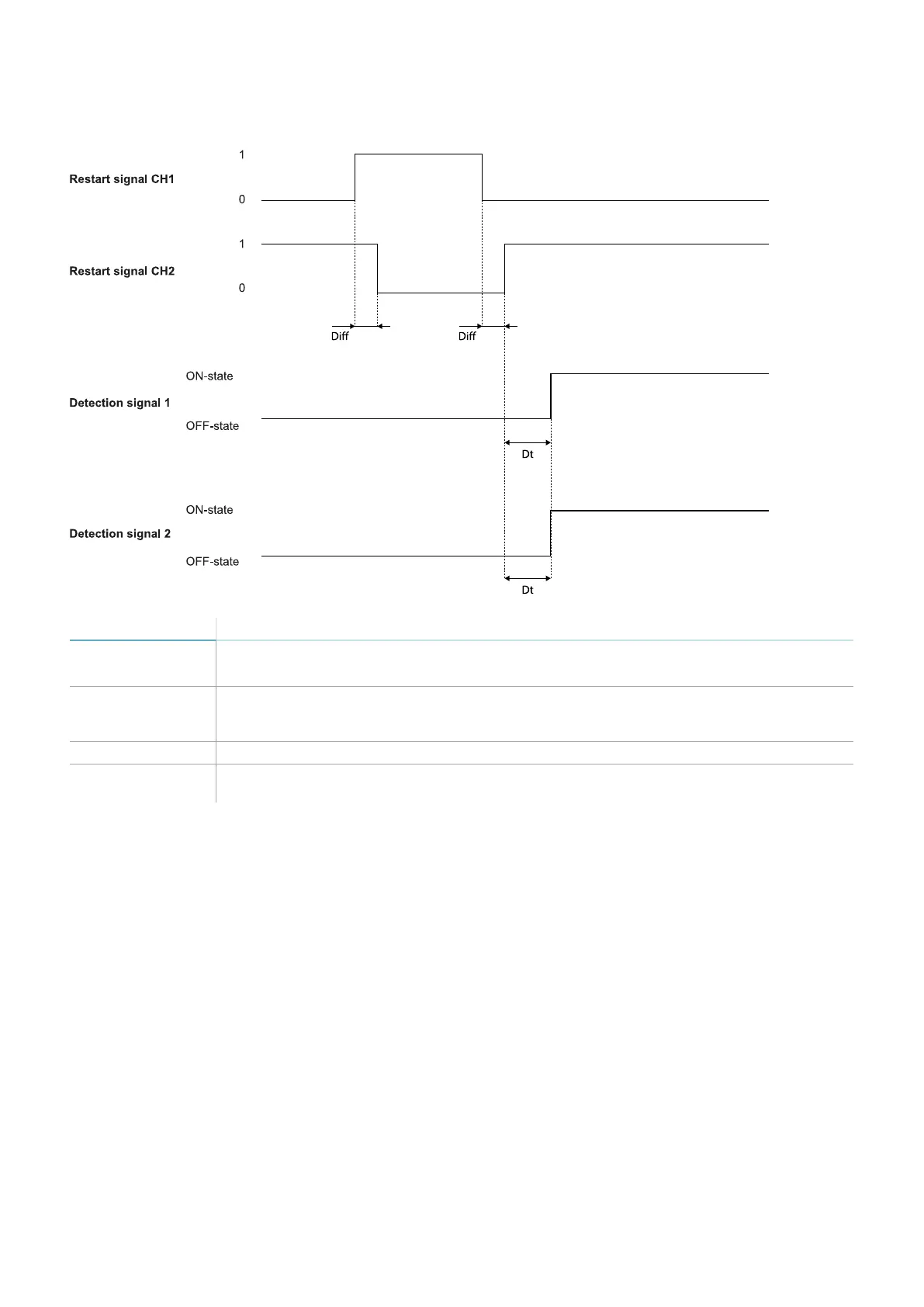

11.5.4 Restart signal (dual channel, redundancy mode inverted)
Part Description
Detection signal 1
Detection signal 2
The Detection signal 1 and Detection signal 2 outputs go to ON-state as soon as the last
channel has correctly completed the transition.
Restart signal CH1
Restart signal CH2
Channel 1 of the Restart signal must have a transition of logical level 0 -> 1 -> 0. Channel
2 of Restart signal must have a transition of logical level 1 -> 0 -> 1. The time they stay at
a high logical level (t) must be at least 200 ms and less than 5 s.
Dt Activation delay. Less than 50 ms.
Diff Less than 100 ms. If the value is greater than 100 ms, the system maintains the outputs
deactivated.
