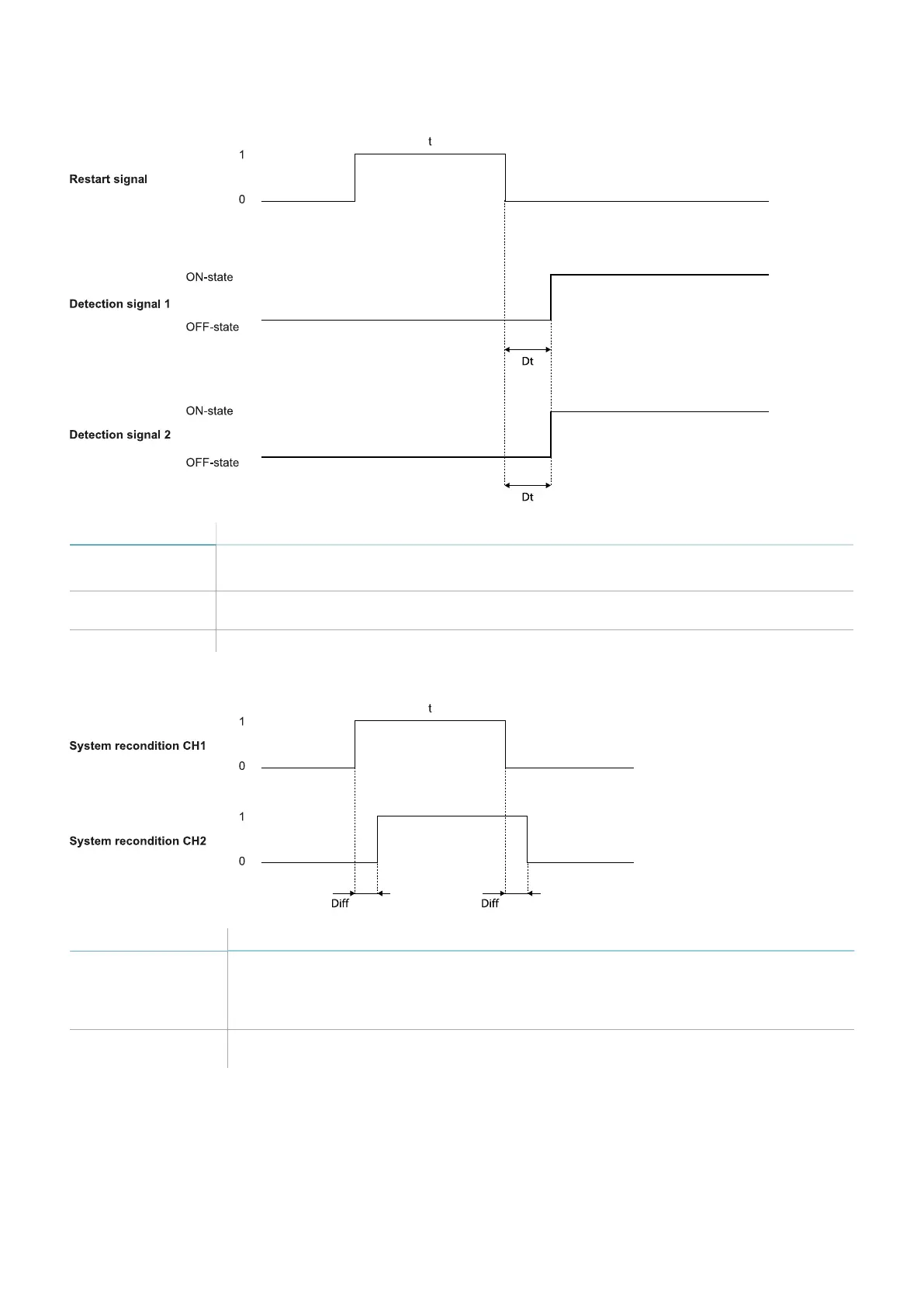

11.5.5 Restart signal (single channel)
Part Description
Detection signal 1
Detection signal 2
The Detection signal 1 and Detection signal 2 outputs go to ON-state as soon as the
Restart signal has correctly completed the transition 0 -> 1 -> 0.
Restart signal The channel must have a transition of logical level 0 -> 1 ->0. The time they stay at a high
logical level (t) must be at least 200 ms and less than 5 s.
Dt Activation delay. Less than 50 ms.
11.5.6 System recondition (dual channel, redundancy mode coherent)
Part Description
System recondition
CH1
System recondition
CH2
Interchangeable channel. Both channels of System recondition must have a transition of
logical level 0 -> 1 ->0. They must stay at a high logical level (t) for at least 10 s and less
than 30 s.
Diff Less than 100 ms. If the value is greater than 100 ms, the system maintains the outputs
deactivated.
