3.2.3 Functions
The control unit performs the following functions:
l
Collects information from all the sensors via CAN bus.
l
Compares the position of detected motion with the set values.
l
Deactivates the selected safety output when at least one sensor detects motion in the detection field.
l
Deactivates all the safety outputs if a failure is detected in one of the sensors or the control unit.
l
Manages the inputs and outputs.
l
Communicates with the Inxpect Safety application for all configuration and diagnostic functions.
l
Allows dynamically switching between different configurations.
l
Communicates with a safety PLC through the safe Fieldbus connection (if available).
l
Communicates and exchanges data through MODBUS protocol (if available).
l
Performs a backup and a restore system configuration and password to/from microSD card (if available).

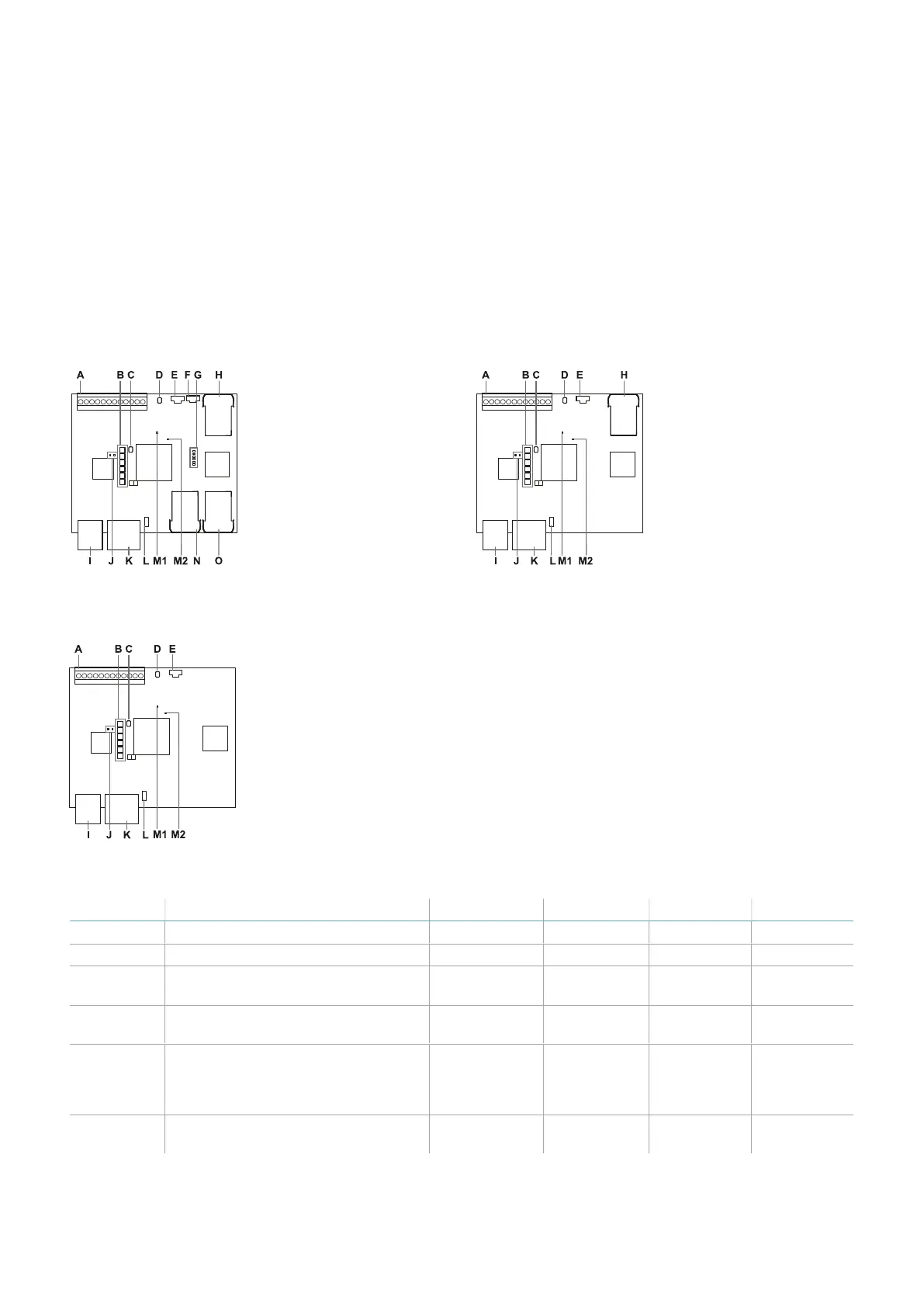

3.2.4 Type A control units
C201A-PNS, C201A-F
C202A
C203A
Part Description C201A-PNS C201A-F C202A C203A
A I/O terminal block x x x x
B System status LEDs x x x x
C Network parameter reset button /
Factory reset button
x x x x
D Reserved for internal use. Output
reset button
x x x x
E Micro-USB port (micro-B type) for
connecting the PC and
communicating with the Inxpect
Safety application
x x x x
F Micro-USB port, if mounted
(reserved)
x x - -
