4.2.6 Independent detection fields:a use case
It can be useful to set the detection fields as independent, for example, if there is a scheduled temporary motion

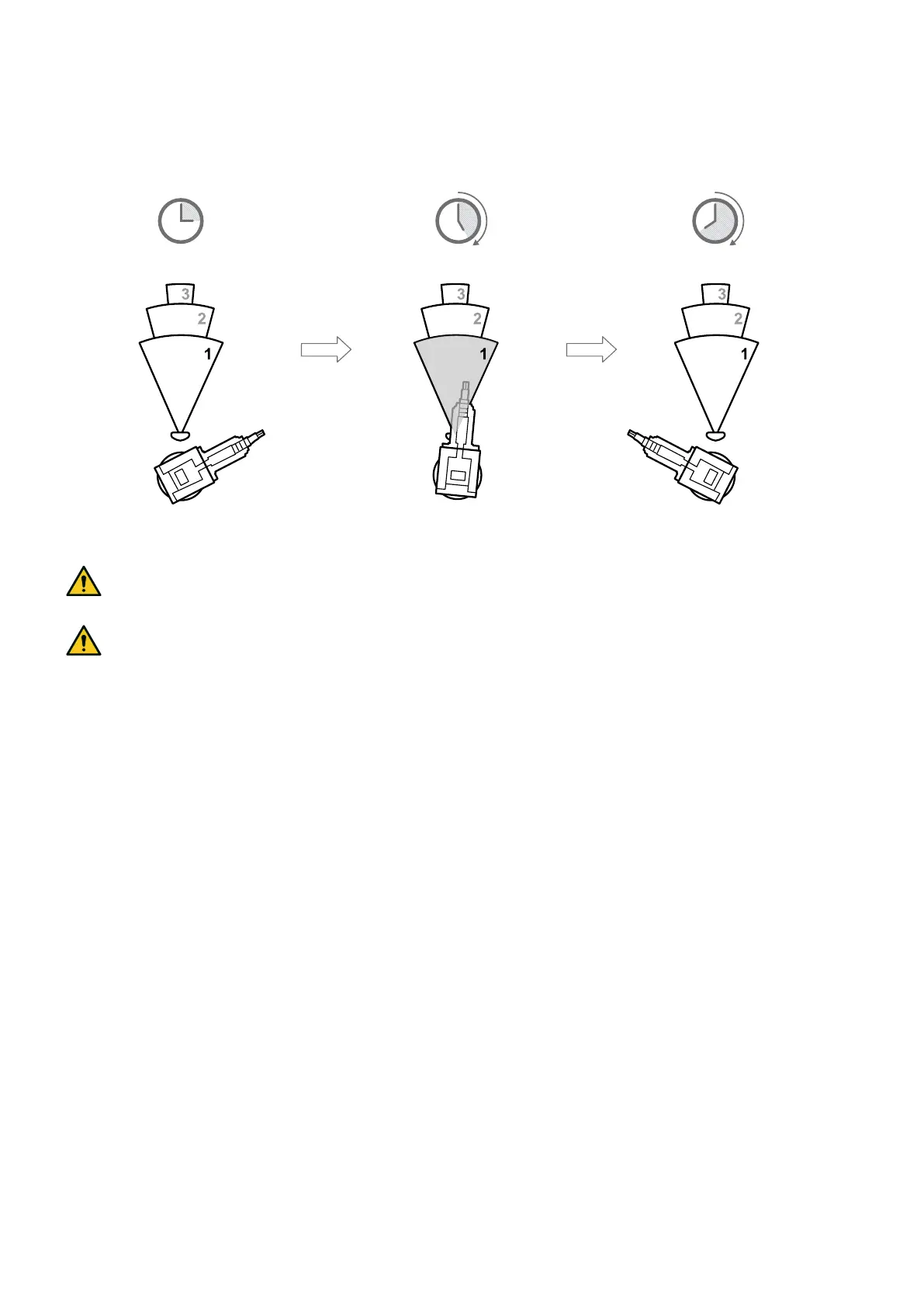

of an object in a detection field. An example can be a robotic arm moving from right to left within the detection
field 1 only during a specific phase of the operative cycle.
In this case, it is possible to ignore the detection signal in the detection field 1, thus avoiding unnecessary
downtime.
WARNING! Evaluate the safety of the monitored area during risk assessment before deciding to
ignore the detection signal of the detection field 1.
WARNING! The blind area generated by the moving robotic arm can prevent the sensor from
detecting targets in the following other detection fields for a time interval. This time must be
considered when defining the detection distance for detection field 2.
