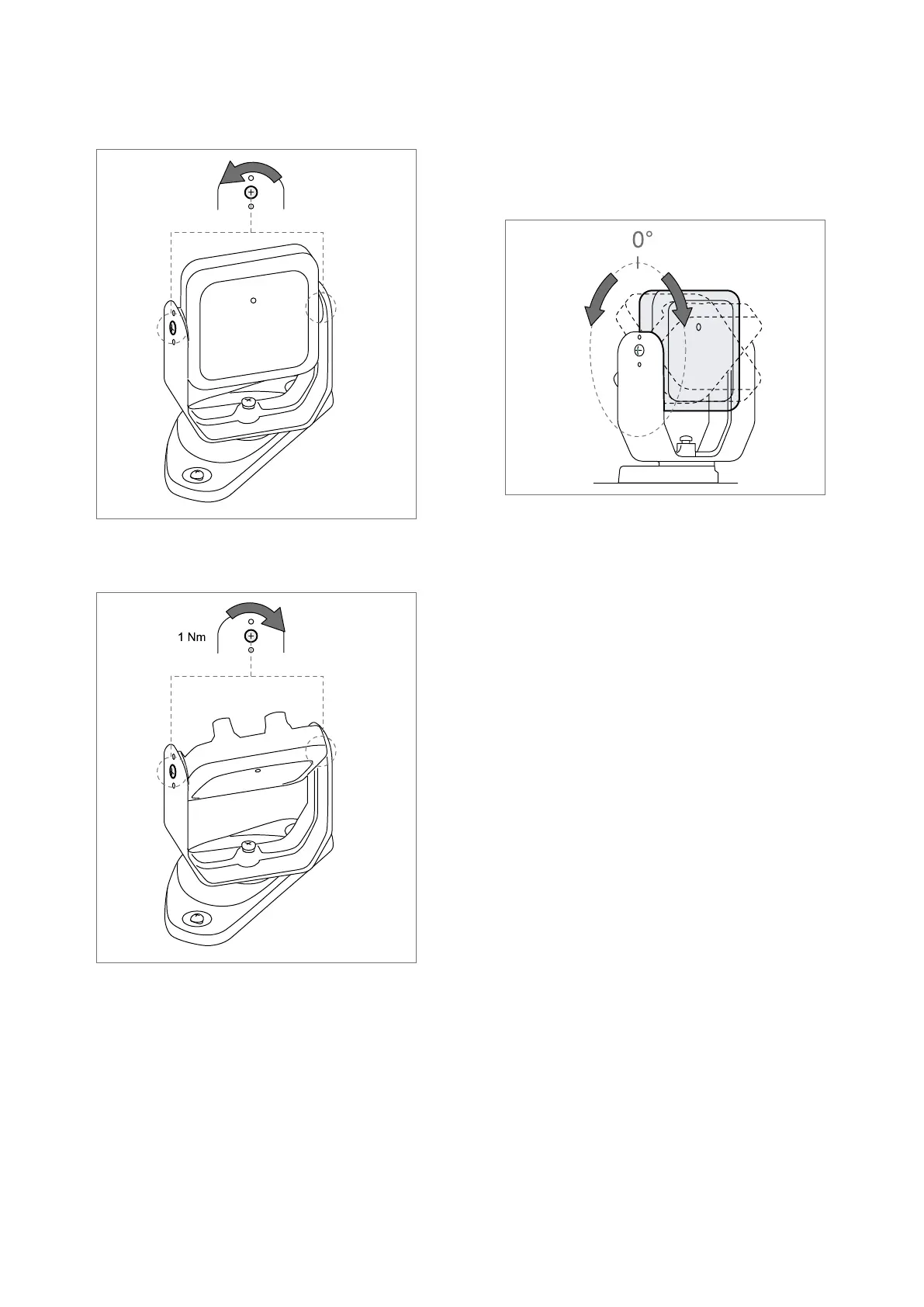

5. Loosen the tamper-proof screws to tilt the
sensor.
6. Tilt the sensor to the desired inclination (see
"Sensor position" on page53).
Note: a notch is equal to a 10° of inclination.
For a finer regulation of the sensor inclination
with a 1° precision (see "Set the sensor
inclination with a 1° precision" on page72).
7. Tighten the screws.
8. Installation and use procedures
