8. Installation and use procedures
8.2.4 Install the sensors
Note: for an example of sensor installation, see "Examples of sensor installation" on page70.
Note: the usage of a thread-locking fluid on the threads of fasteners is suggested, especially when the sensor is
installed on a moving or vibrating part of the machinery.
Note: if no bracket is used for sensor installation, use tamper-proof screws and threadlocker.

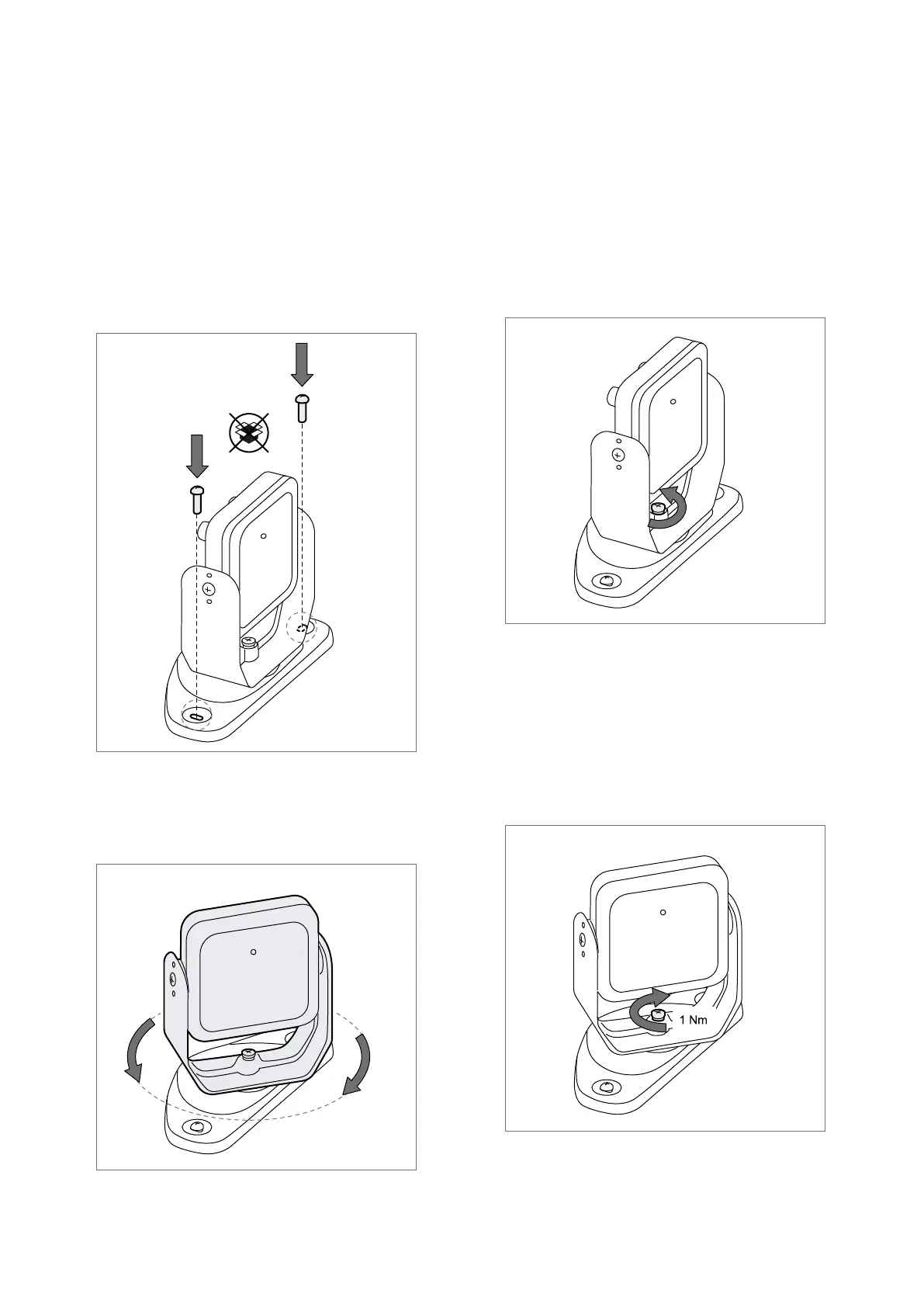

1. Position the sensor as indicated in the
configuration report and fasten the bracket
with two tamper-proof screws directly onto the
floor or another support
NOTICE: make sure the support does not
inhibit machinery commands.
2. With an Allen key, loosen the screw at the
bottom to pan the sensor.
Note: to avoid damaging the bracket, loosen
the screw completely before panning the
sensor.
3. Pan the sensor until it reaches the desired
position.
Note: a notch is equal to a 10° of rotation.
4. Tighten the screw.
