8.2.3 Mount 3-axes bracket
Note: for an example of sensor installation, see "Examples of sensor installation" on page70.

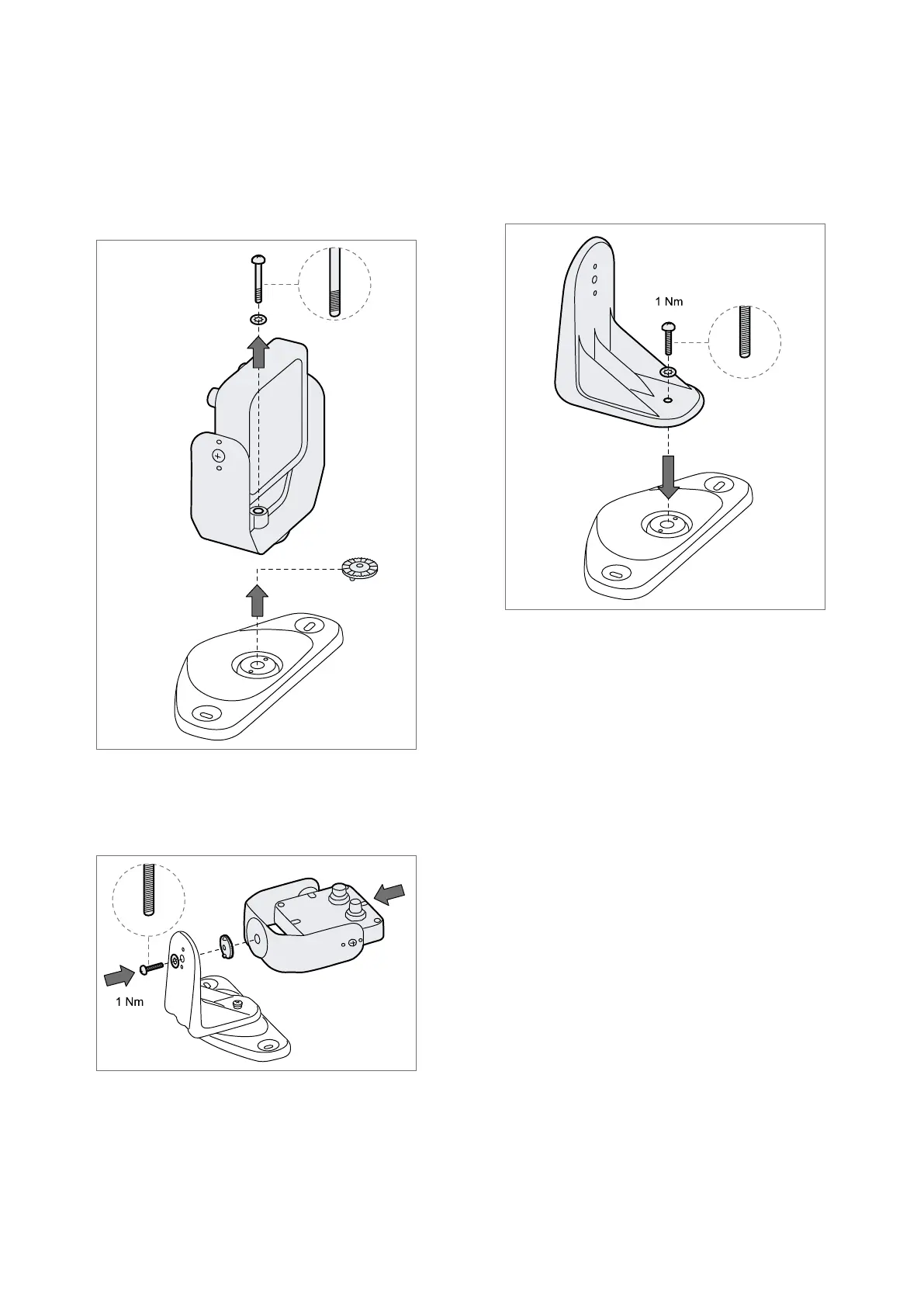

The bracket that allows rotation around the z-axis (roll) is an accessory in the package. To mount it:
1. Unscrew the screw at the bottom and remove
the bracket with the sensor and the aligning
ring.
2. Attach the roll bracket to the base. Use the
tamper-proof screw provided with the bracket.
3. Mount the bracket with the sensor and the
aligning ring. Use the tamper-proof screw
provided with the bracket.
