All the tests share the following parameters:
Configured radar
restart timeout
At least 4 s
Target type Human according to ISO 7250, breathing normally
Target speed 0 m/s (0 ft/s)
Target pose Standing or crouching (or other poses if requested by specific risk assessment)
Test duration At least 20 s
Acceptance criteria The detection signal remains deactivated during the test. When the operator leaves the
area; the detection signal is activated.
Validation test
The validation procedure of the Inxpect SRE 200 Series system is reported below:
1. Identify the test positions, including those locations where the operator should normally be located
during the production cycle:
o
boundaries of the dangerous area
o
intermediate points between sensors
o
positions that are partially hidden by already present or presumed obstacles during the operating
cycle
o
positions indicated by the risk assessor
2. Access the dangerous area and go to one of the test positions:the corresponding detection signal
should be deactivated.
3. Perform the test according to the test setup previously defined.
4. Check that the test acceptance criteria previously defined are fulfilled.
5. If the test acceptance criteria are not fulfilled, see "Validate the system with Inxpect Safety" on the next
page.
6. Repeat steps 2, 3, and 4 for each test position.
Example of test positions

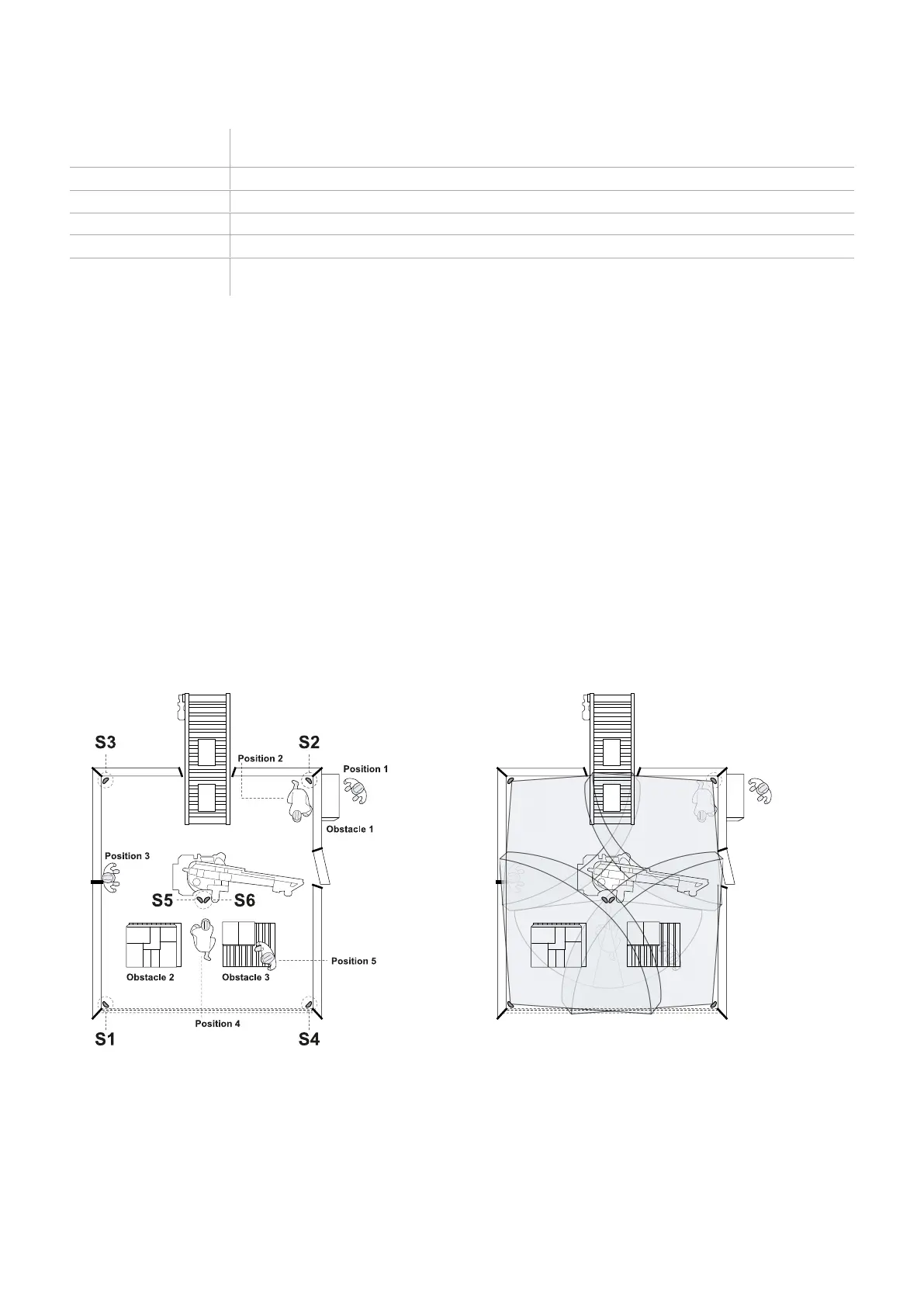

The following images show examples of positions to be tested and suggestions about identifying other possible
positions of interest.
