Iridex PASCAL Synthesis - Replacing the Fuses

PASCAL
®
Synthesis Ophthalmic Scanning Laser Systems Page 106 of 141
88292-EN, Rev D
Replacing the Fuses
To change the power receptacle fuses:
1. Ensure the key switch is in the OFF position.
2. Unplug the main power cable from the wall outlet and the system
main power receptacle.
3. Insert a small, insulated flathead screwdriver into the fuse holder release
receptacle and unlock and remove the fuse holder.
4. Replace the blown fuses with new fuses compatible with the mains supply voltage, as
indicated in the <System Specifications> section of this manual.
5. Replace the fuse holder.

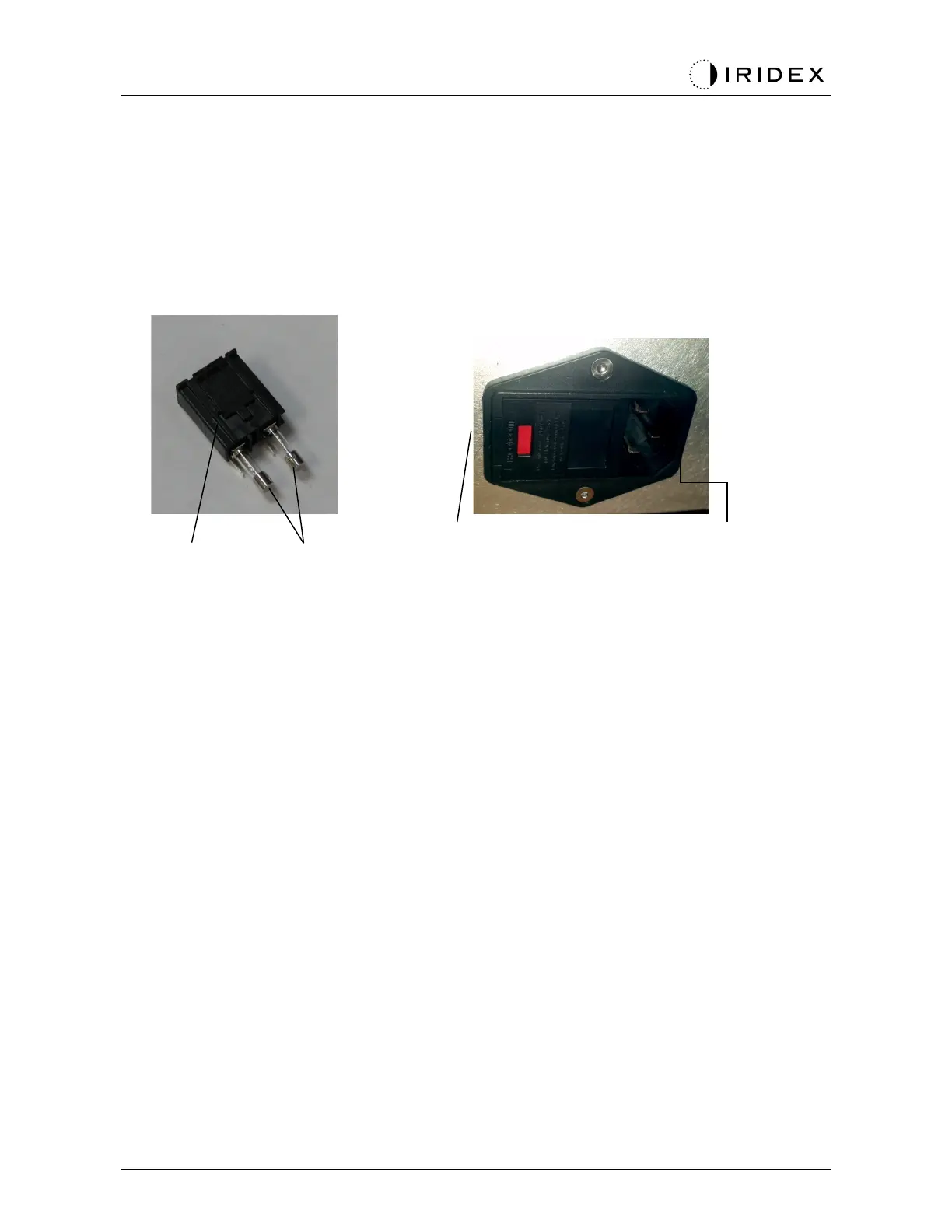

Main power
cord receptacle
Fuse holder
Fuses
Location of
system fuses
