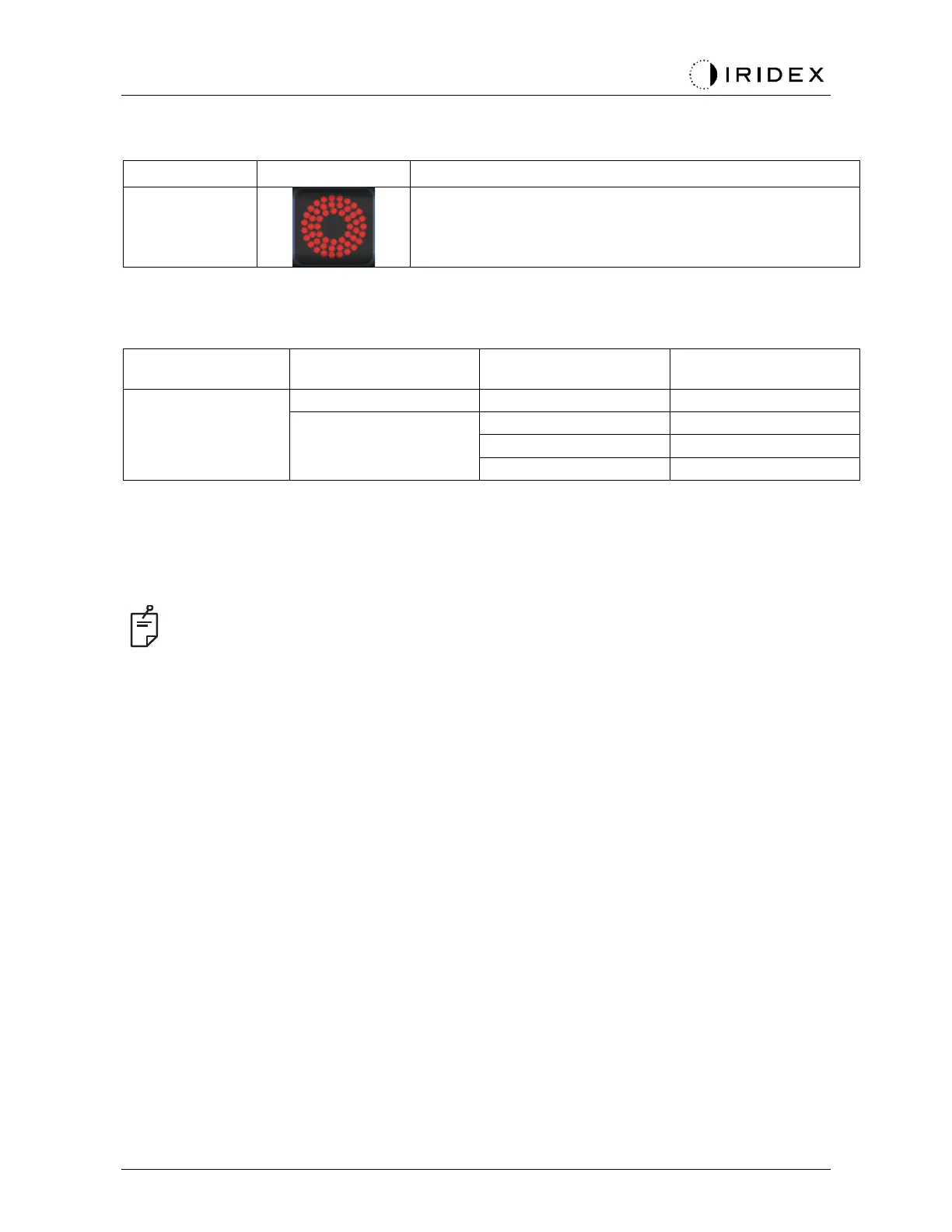

Triple Ring
Primary pattern
Secondary pattern
20ms Triple
Ring
Not available
General Use
• PRP, retina tears, retina detachments
Pattern
Spot Diameter (μm)
Spacing
Radius
(Inner ring)
20 ms Triple Ring
200
0.50Ø
500μm
400
0.00Ø
500μm to 600μm
0.25Ø
500μm to 700μm
0.50Ø
500µm to 1000µm
The Triple Ring pattern is fixed, but the spot diameter, spacing, and radius settings are
adjustable. The entire pattern is delivered when you press the footswitch.
NOTE
• The full range of settings is not available for every combination of parameters.
• The Endpoint Management feature is not available for Three Ring pattern.
