Iridex PASCAL Synthesis - Hexagon

PASCAL
®
Synthesis Ophthalmic Scanning Laser Systems Page 74 of 141
88292-EN, Rev D

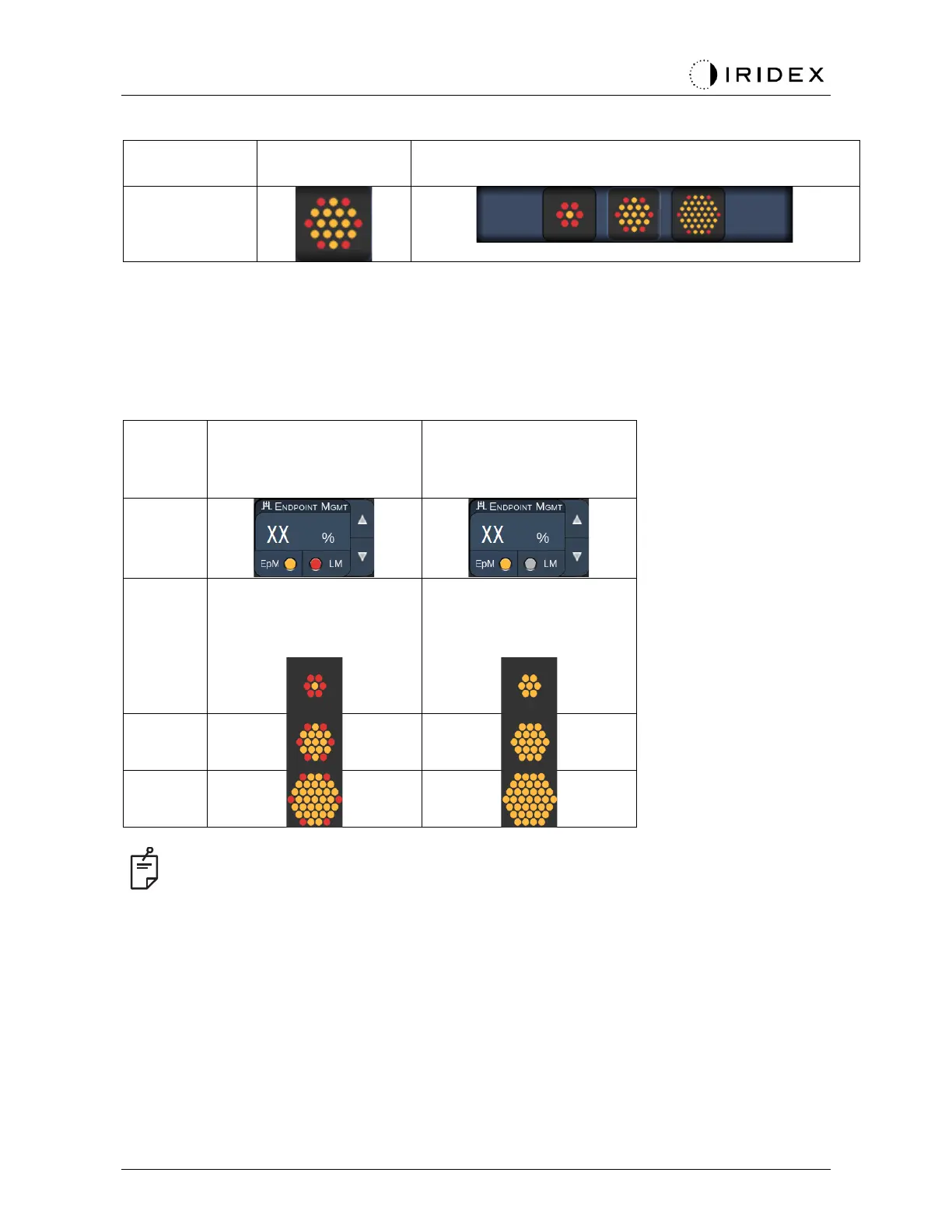

Hexagon
Primary pattern
Secondary pattern
15ms EpM
Hexagon
See the section “Posterior Pattern Description/Pattern Parameters” for the detailed
information on the Hexagon pattern.
Endpoint Management Features
# of
Spots
Endpoint Management
On/ Landmark On
Endpoint Management
On/ Landmark Off
Six full-power spots (red-
100%); remaining
endpoint spots (orange-xx
%)
All endpoint spots
(orange-xx %)
7
19
37
NOTE
• The EpM is always ON for all patterns in EpM group. It cannot be disabled.
