Iridex PASCAL Synthesis - Controller (Purchased Separately); 3 D Controller Action

PASCAL
®
Synthesis Ophthalmic Scanning Laser Systems Page 34 of 141
88292-EN, Rev D
3D Controller (Purchased Separately)
Provides auxiliary input for laser position and parameters. Parameters are adjusted by
motion of controller.

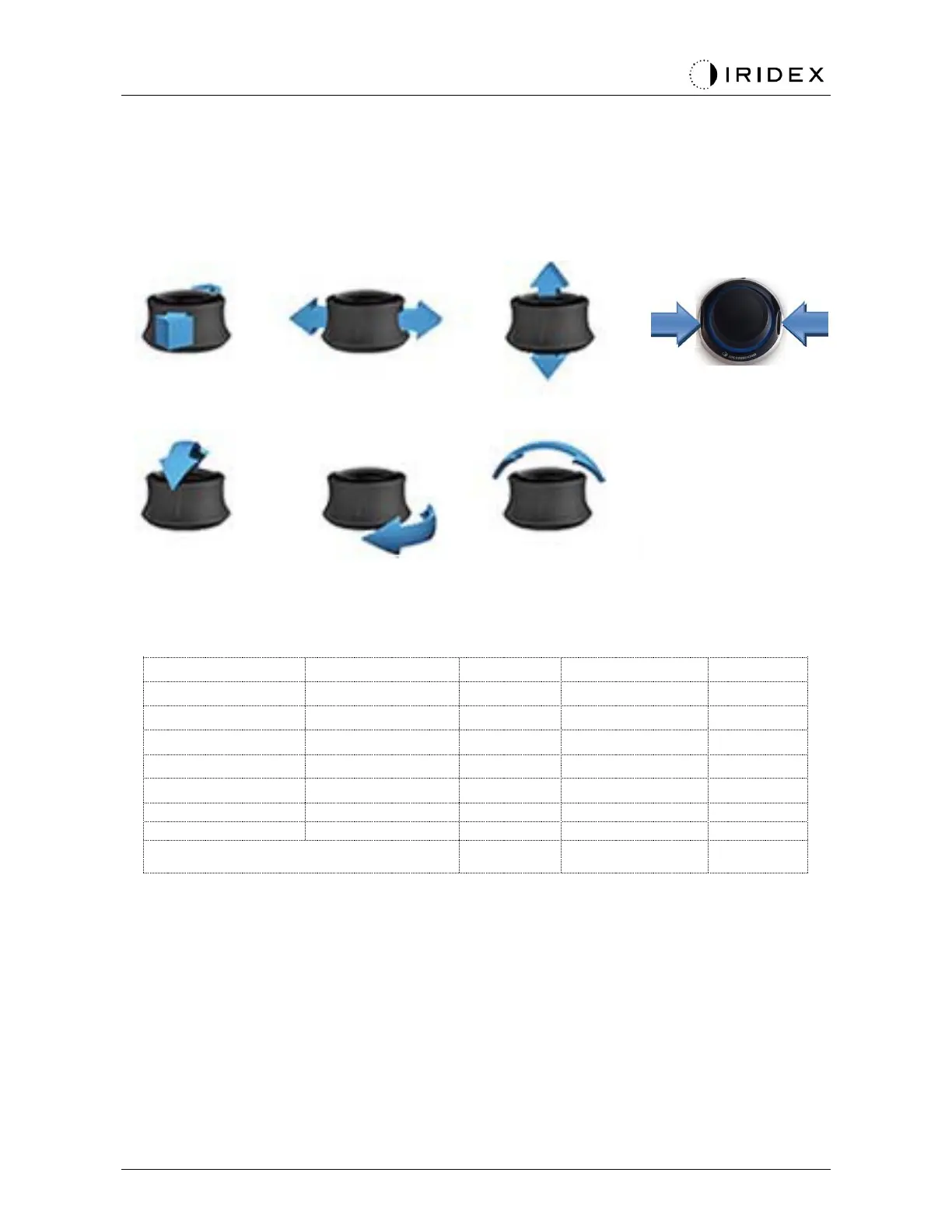

3D Controller Action
3D Controller Configurations
Function
Action
Default
Advanced
Power
Micromanipulator
Tilt (U/D/L/R)
ü
ü*
--
Titrate / Center
Pull
ü
ü
--
Spots
Slide U/D
--
ü**
--
Spacing
Slide L/R
--
ü**
--
Orientation
Rotate CW/CCW
--
ü**
--
Power Increase
Right side button
ü
ü
ü
Power Decrease
Left side button
ü
ü
ü
* Single Spot only
** Full Pattern Only
Side buttons (L/R)
Slide up/down
(U/D)
Slide left/right
(L/R)
Pull (up)
Tilt up/down
(U/D)
Tilt left/right
Rotate CW/CCW
