Iridex PASCAL Synthesis - Line

PASCAL
®
Synthesis Ophthalmic Scanning Laser Systems Page 61 of 141
88292-EN, Rev D
Line
Primary pattern
Secondary pattern
20ms Line
Not available
General Use
• PRP, retina tears, retina detachments, focal laser
Pattern
Spot Diameter (μm)
Spacing
EPM %
20 ms Line
100
0.00Ø to 3.00Ø
10 to 95
200
400

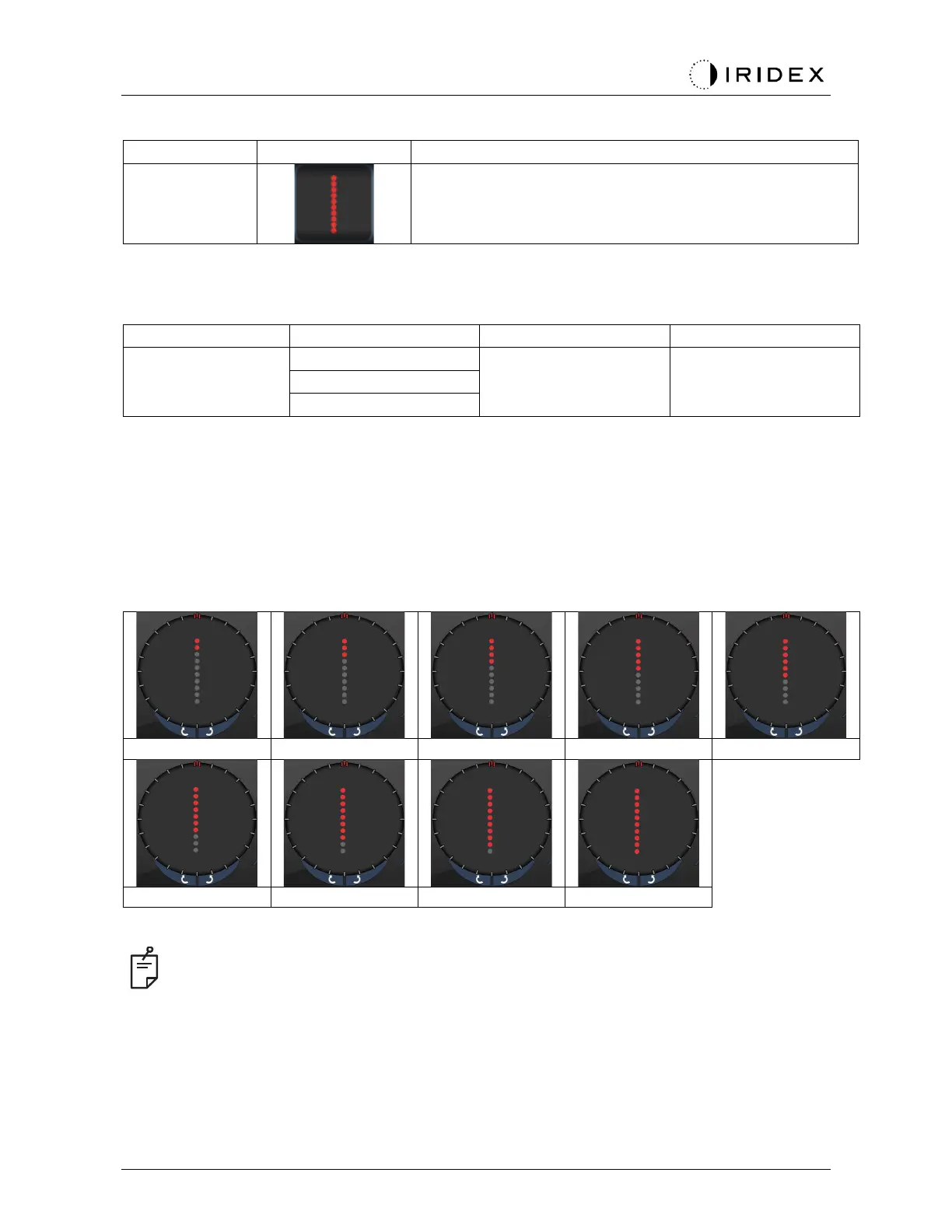

The Line pattern is selectable in nine sizes (2 to 10 spots) and twenty-four orientations. Spot
diameter and spacing settings are also adjustable.
To select the Line pattern size, drag your finger up or down the Line pattern. Dragging from
top to bottom increases the number of spots; dragging from bottom to top decreases the
number of spots.
To select the pattern orientation, press <Rotate> button at the bottom.
1x2
1x3
1x4
1x5
1x6
1x7
1x8
1x9
1x10
NOTE
• The full range of settings is not available for every combination of parameters.
• Do not allow to swipe to single spot for line patterns. If needed, please select the
single spot pattern.
