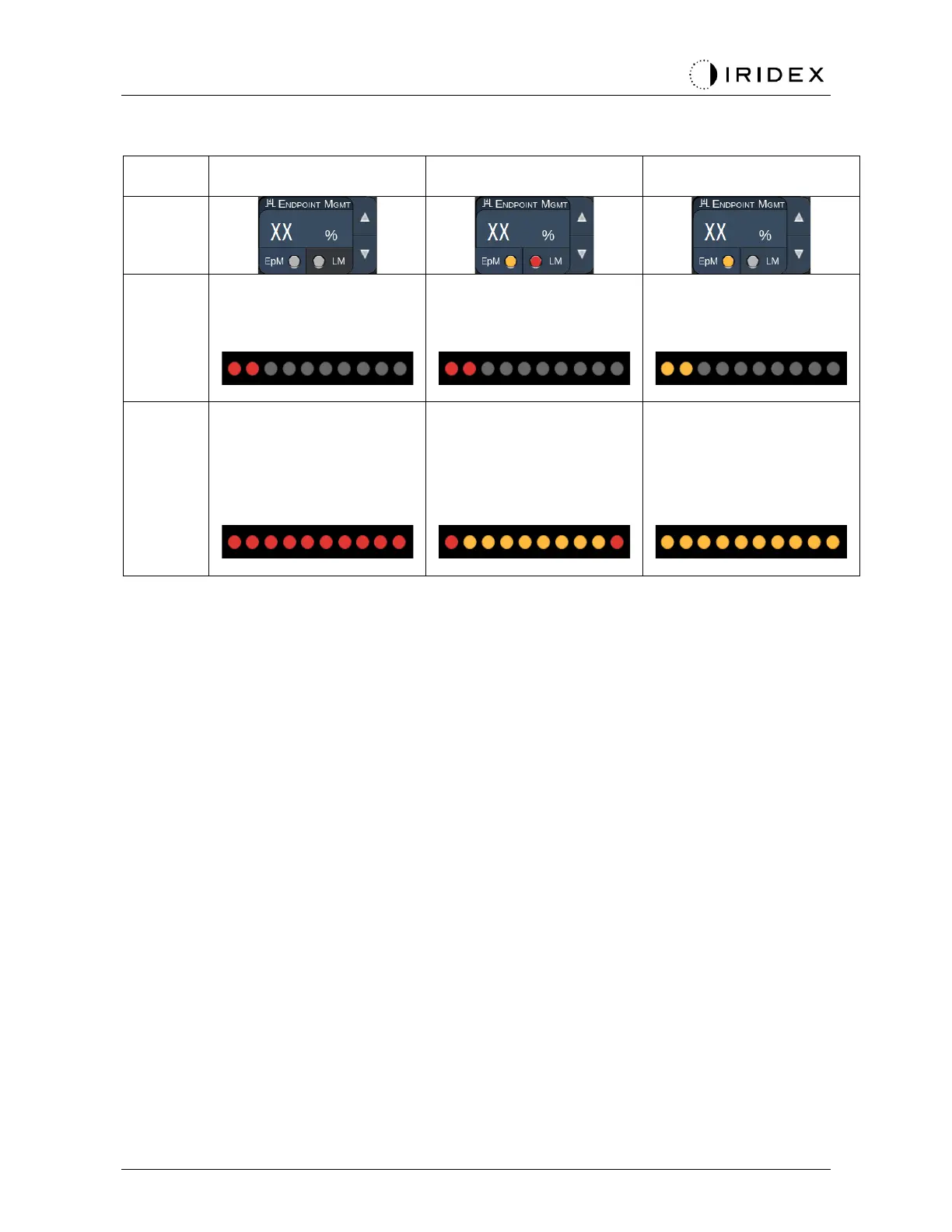

Endpoint Management Features
Pattern
Type
Endpoint Management Off
or Disabled
Endpoint Management
On/ Landmark On
Endpoint Management
On/ Landmark Off
1x2 lines
All full-power spots (red-
100%)
All full-power spots (red-
100%);
All endpoint spots
(orange-xx %)
Examples:
Examples:
Examples:
Other
lines
All full-power spots (red-
100%)
Two full-power spots (red-
100%); remaining
endpoint spots (orange-xx
%)
All endpoint spots
(orange-xx %)
Examples:
Examples:
Examples:
