Octants
Primary pattern
Secondary pattern
10ms Octants
General Use
Pattern
Spot Diameter
Spacing
Radius
(Inner ring)
EPM %
10 ms Octants
100μm
0.25Ø
1100µm to
1600µm
15 to 95
(Exposure 10ms)
10 to 95
(Exposure 15ms)
0.50Ø
1100µm to
1500µm
1.00Ø
1100µm to
1400µm
1.50Ø
1100µm to
1200µm
2.00Ø
1100µm
200μm
0.25Ø
1100µm to
1200µm
0.50Ø
1100µm

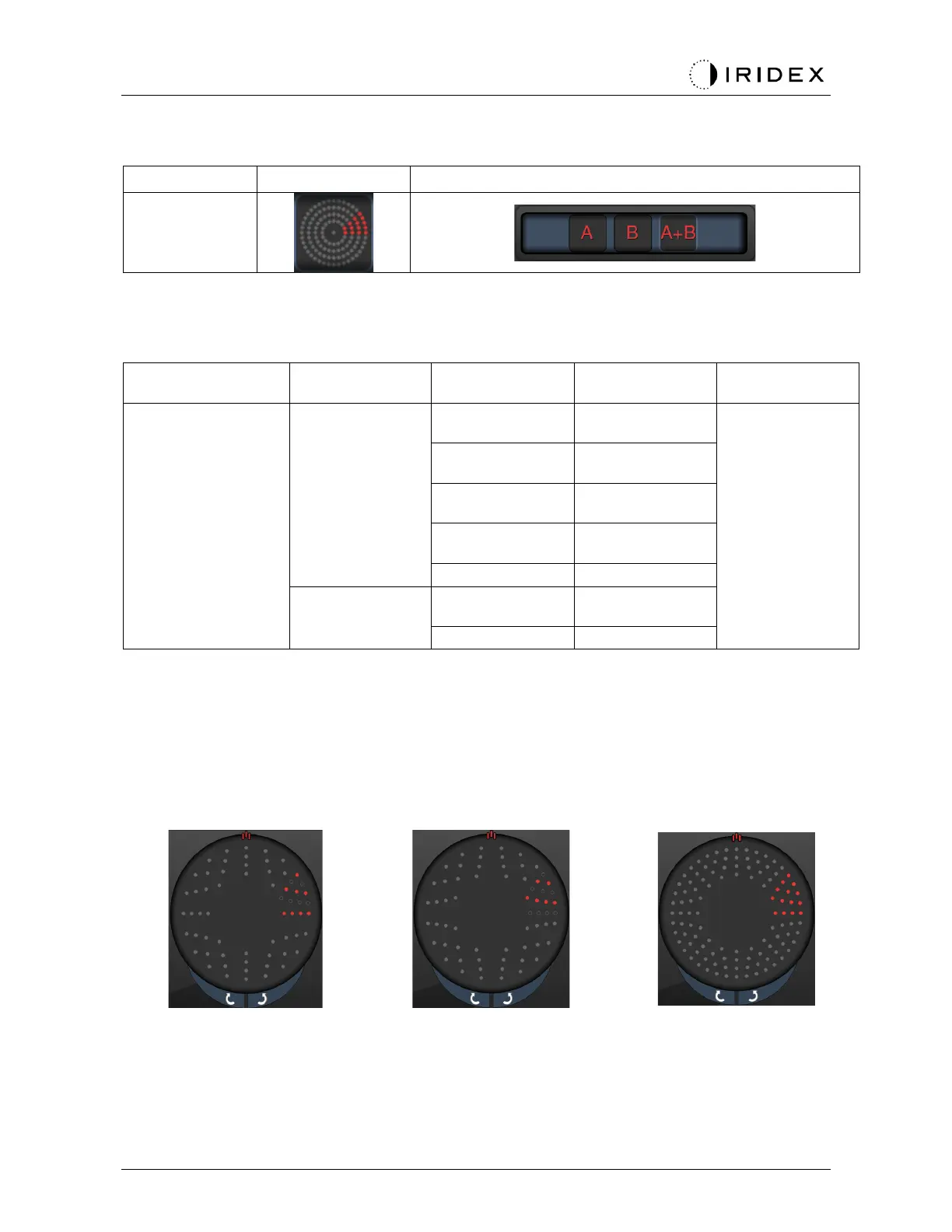

The Octants pattern is selectable in three formats: A, B, and A+B, as described above. The
pattern is selectable in subsets of one to eight octants for A and B formats and one to four
octants for the A+B format. Spot diameter, spacing, and radius settings are also adjustable.
To select the Octants pattern format, press the A, B, or A+B button at the secondary of the
Octants pattern screen. To select a number of octants, drag your finger around the Octants
pattern.
A
B
A+B
